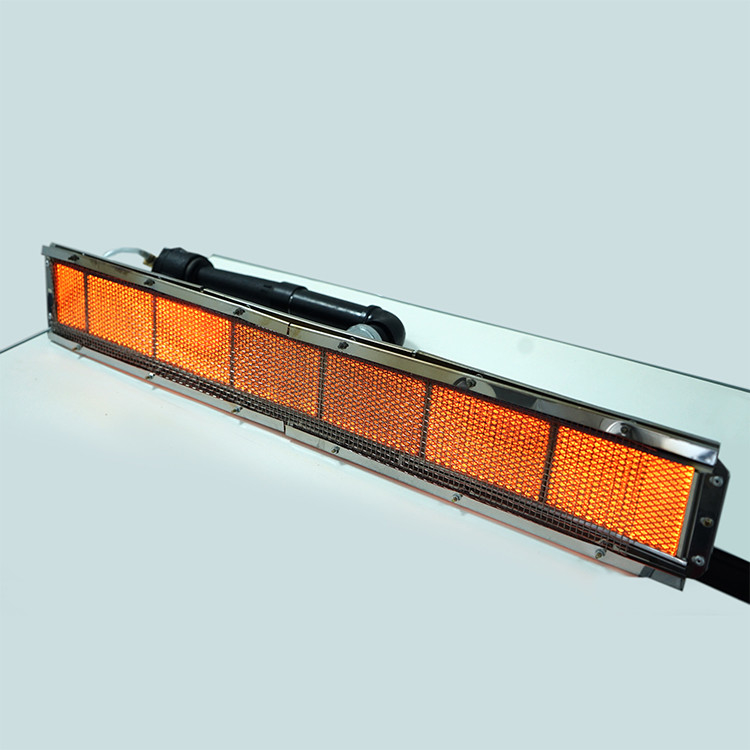

NG LPG Infrared Ceramic Gas Burner HD262 Industrial Gas Oven Burner
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD262 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Shockproof carton packing |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 10000PCS per Month |
|
Detail Information |
|||

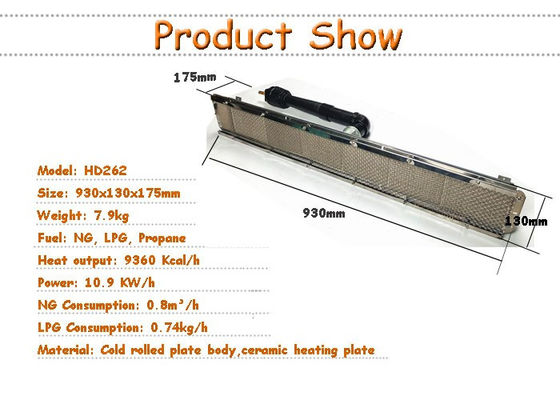

| Product Name: | HD262 | Material: | Galvanized Sheet,ceramic Plate |
|---|---|---|---|
| Dimension: | 930mm*130mm*175mm | Burning Plate: | Ceramic Plates With Catalyst |
| Nozzle: | Brass | Heat Transfer Rate: | Above 90% |
| Working Pressure: | 2000~5000pa | Heat Output: | 9360Kcal/h |
| Plate Lifespan: | Above 11000hrs | Advantage: | Save Above 20% Energy |
| Highlight: | LPG Infrared Ceramic Gas Burner,HD262 Infrared Ceramic Gas Burner,Industrial Gas Oven Burner |
||
Product Description
Industrial Gas Oven Burner HD262 for Powder Coating Curing or Food Baking
Products Description
Haodong Infrared Burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
Gas Infrared Burner Technical Parameters
Gas BBQ Grill Infrared Burner Main Material:
1. Shell: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: Aluminized steel sheet
Gas BBQ Grill Infrared Burner Main Specification:
Details Images
Related Products
Our Advantages
1. Easy being fixed
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds

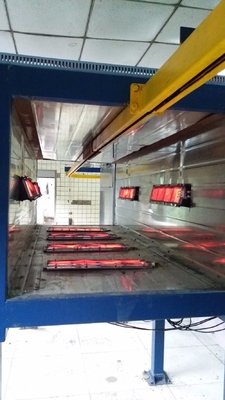

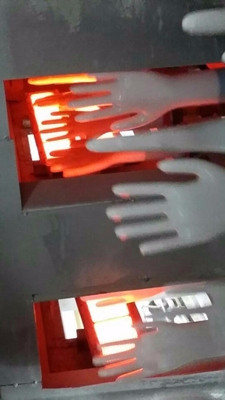

Appliation
This kind burner now are Mainly used for barbecue oven , grill, chicken gas roaster , shawarma/ donner/kebab/gyros machine, bread oven,cake bakery equipment, cheese baking machine…
and can be installed at all directions, but at bottom with a heat resistance glass cover is best.
which will not keep burner working above 4 hours one time.
Company Profile
Chongqing Haodong Technology Co., Ltd is a professional manufacturer of Infrared Catalytic Gas Burner, bbq Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.
Unique Rare-earth Catalyst Technology has gotten Patent certificate, it makes our burner to save 15~25% gas energy thannon-catalytic type.Located in Chongqing City, southwest of China.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
