Industrial NG LPG Powder Coating Oven Gas Burner Energy Saving High Efficiency
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD162 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD50-96/pcs |
| Packaging Details: | Standard carton; Outer carton size: 61*25*29cm; Inner carton size: 58*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Material: | 2mm Galvanized Sheet Case, Brass Nozzle | Fuel: | LPG,NG, Butane, Propane |
|---|---|---|---|
| Dimension: | 570*130*175mm | Advantage 1: | 20% Gas Saving Than Non-catalytic Infrared Gas Burner |
| Advantage 2: | Conveyor Rate: Above 95% | Technology: | Covered With Rare Earth Catalyst On Combustion Plate |
| Warranty: | 1 Year Without Human Factor | Other Related Parts: | Industrial Regulator, Capsule Pressure Gauge, Thermostat, Overhead Conveyor System Etc |
| High Light: | Industrial Powder Coating Oven Gas Burner,LPG Powder Coating Oven Gas Burner |
||
Product Description
Gas Energy Saving High Efficiency Industrial Powder Coating Oven Gas Burner
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of industrial infrared catalytic gas burners.
Our company performs in accordance with Chinese National Standards (GB) in China and quality assurance standards are implemented for overseas distribution.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
Specifications
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |

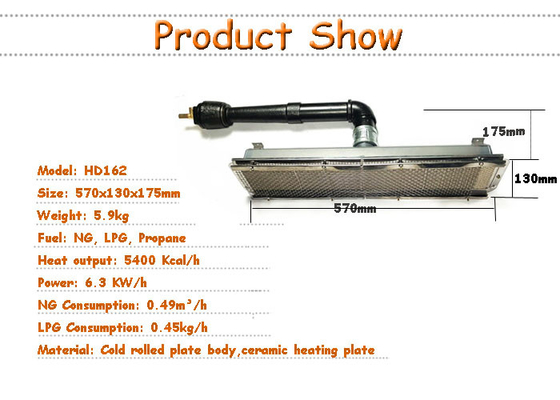

| HD162 | 570*130*175 |
5.9
|
NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD410 | 410*175*220 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 |
7.5
|
NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD600 | 600*175*220 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 |
7.8
|
NG/LPG | 10.9 | 9360 | 0.8 |
0.82
|
System Overview
Advantages
♦Energy efficient, as high as 20% energy can be saved every year
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
Application

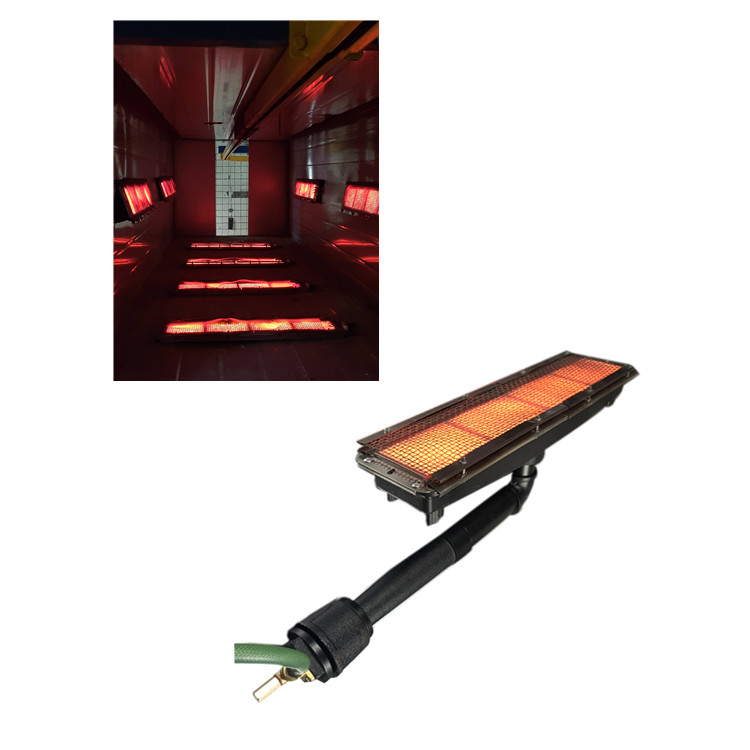

1. Industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;
2. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;
3. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;
