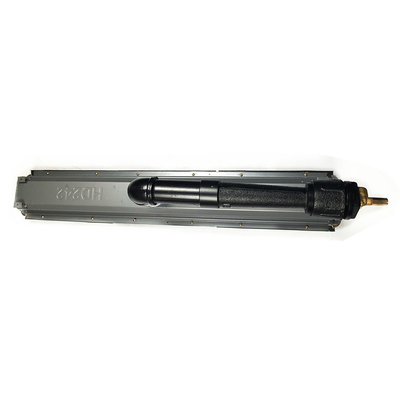

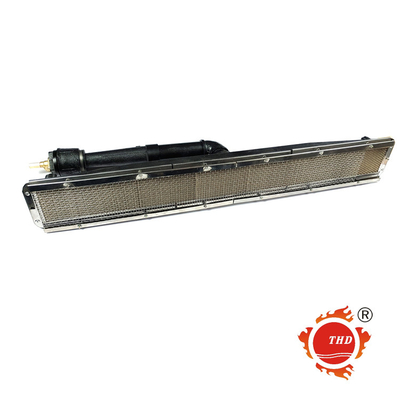

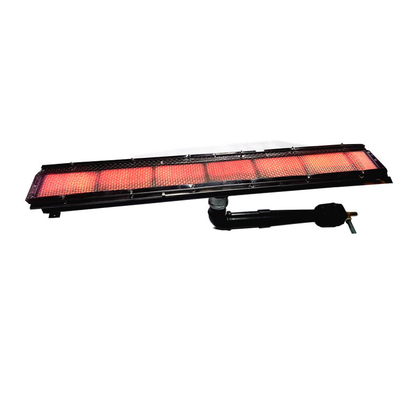

High Efficiency Powder Coating Oven Gas Burner For Painting Spray Booth
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD262 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Outer carton size: 98*30*25cm; Inner carton size: 96*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Gas Type: | LPG, NG, Butane, Propane | Dimension: | 930*130*175mm |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving, Conveyor Rate Above 95% | Advantage 2: | High Efficiency, Fast Heating, Low Maintaince Etc |
| Technology: | Covered With Rare Earth Catalyst On Combustion Plate | Other Related Parts: | Industrial Regulator, Capsule Pressure Gauge, Thermostat, Conveyor System Etc |
| Heat Output: | 10.9KW/h, 9360Kcal/hr | Certification: | CE |
| High Light: | High Efficiency Powder Coating Oven Gas Burner,CE Powder Coating Oven Gas Burner |
||
Product Description
High Efficiency Powder Coating Oven Gas Burner For Painting Spray Booth
Company profile
Since 2005, we have been specialized in providing heating equipment for industrial ovens, and at the same time, we have been engaged in spraying oven engineering industry in China. Today, we have the ability to provide and build the entire industrial line, and now we can provide one-stop industrial assembly line equipment. If you have a demand for this, you are welcome to have more discussions with us.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
These series burners are widely used for kinds of industrial oven, such as tunnel oven, powder coating oven, drying oven etc.
Specifications
More models
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 |
5.9
|
NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD410 | 410*175*220 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 |
7.5
|
NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD600 | 600*175*220 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 |
7.8
|
NG/LPG | 10.9 | 9360 | 0.8 |
0.82
|
Material
Venturi tube: cast iron
Shell: 2mm galvanized sheet case
Nozzle: brass
Advantages
♦Energy efficient, as high as 20% energy can be saved every year
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm; NOx≤10ppm; CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
Application
1. Industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;
2. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;
3. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;

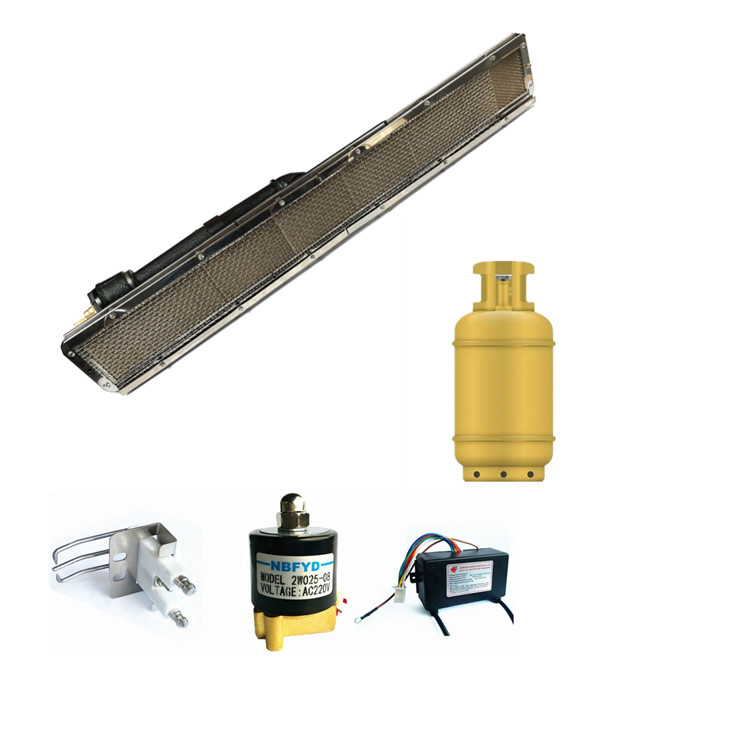

Other related parts
