Combustion Powder Coating Gas Burner Catalytic Ceramic Infrared Burner BBQ
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 162 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | to be negotiable |
| Packaging Details: | Shockproof Carton Packing |
| Delivery Time: | 7-15 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HD162 | Size: | 570*130*175 |
|---|---|---|---|
| Application: | Industrial Gas Oven， Powder Coating Oven | Condition: | New |
| Gas Consumption: | 0.49NG 0.45LPG | Gas Type: | NG/LPG |
| Type: | Gas Burner | ||
| High Light: | Combustion Powder Coating Gas Burner,Catalytic Powder Coating Gas Burner,Catalytic Ceramic Infrared Burner BBQ |
||
Product Description

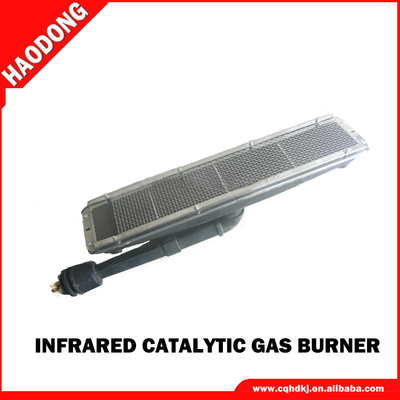

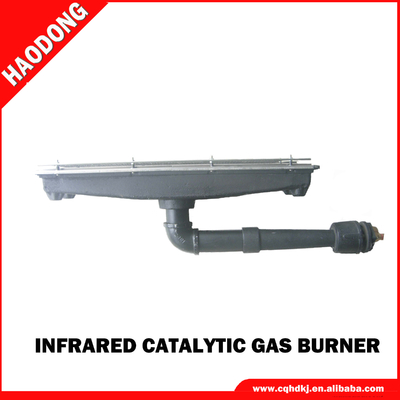

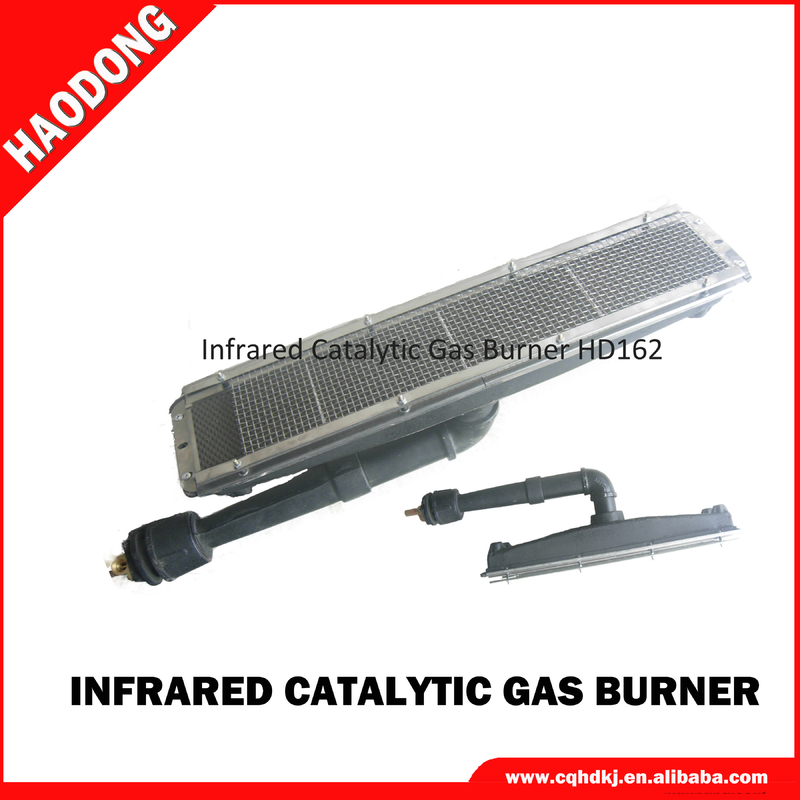

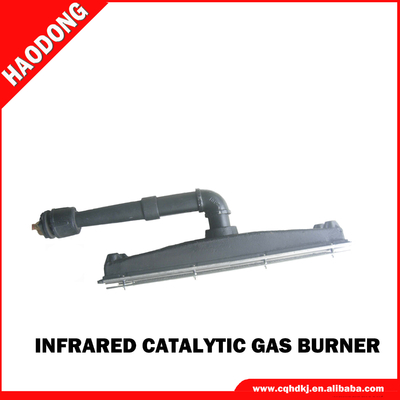

Industrial Gas Combustion Coating Powder Ceramic Infrared Catalytic Gas Burner HD162
Product Introduction
There are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big.
But, differently, infrared gas burner heat object directly by radiation and transfer rate will be much higher, usually cast iron flameless infrared Catalyst Industrial Gas burner can save 20% gas energy and cost.
|
Model
|
Dimension | N.W. | Gas Type | Material | Heat Output | Gas Consumption |
|
|
L*W*H(mm) | kg | Kcal/h | NG(m3/h) /LPG(kg/h) | ||
|
HD162 |
570*130*175 | 5.9 | NG/LPG | galvanized sheet, ceramic plate | 5400 | 0.49 0.45 |
Burner materials:
1. Shell: galvanized steel
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
5. Bottom: iron cast
Advantage
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. Whole combustion: 95% of energy released in the form of infrared ray;heating the objects directly
4. Long life:≥11000hr
5. Easily installed
6. Flameless & smokeless
Notice
1. The inside casing measurement of oven should be confirmed when choose Flameless ceramic asphalt plant infrared industrial lpg heater model.
2. The intake-tube (or air blast pipe) and shell body can’t be installed in the oven but bared in the air.
3. It is gas & air pre-mixed type, if baring air damper into air is unavailable, pls leave some hole for enough air in.It needs to leave a 4-5cm space between oven wall and ignition pin for maintenance; Also keep the pinpoint distance from burner ceramic surface 2~5mm.
4. A set of standard configuration of infrared catalytic burner is infrared catalytic burner + ignition needle + pulse ignition + solenoid valves.
5. Any installed position is ok, but when Flameless ceramic asphalt plant infrared industrial lpg heater is on top or side, you should keep a 15° gradient between the wall and burner ceramic surface so that the heatwave will rise up smoothly.
Application
Coating industry dry (baking paint, powder drying), food baking (dry and dehydrated), asphalt pavement and road and bridge concrete fast -drying, latex molding, glass annealing and other oven and dry machinery (tunnel -type oven, conveyor band oven, etc. ), Energy saving reduction, environmental protection ...
Use high -energy automatic electronic pulse fireware and controller to stabilize and safe
