Flameless Gas Propane Heater Burner Infrared Catalytic For Powder Coating Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 262 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 unit |
|---|---|
| Price: | to be negotiable |
| Packaging Details: | Shockproof Carton Packing |
| Delivery Time: | 7-15 working day |
| Payment Terms: | T/T, Western Union |
| Supply Ability: | 5000 Unit/Units per Month |
|
Detail Information |
|||
| Model: | HD262 | Gas Type: | NG/ LPG |
|---|---|---|---|
| Certificate:: | CE | Application: | Industrial Bakery, Drying,heating |
| Voltage: | 110/220 VAC | Place Of Origin: | Chongqing, China |
| High Light: | Gas Propane Heater Burner,Flameless Propane Heater Burner,Gas Burner For Powder Coating Oven |
||
Product Description

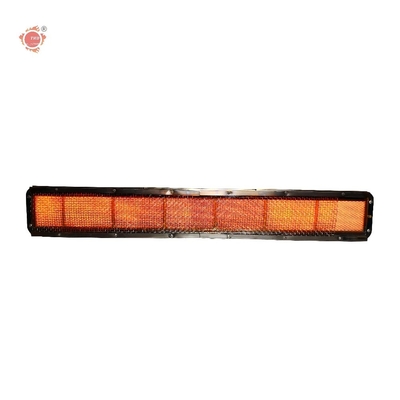

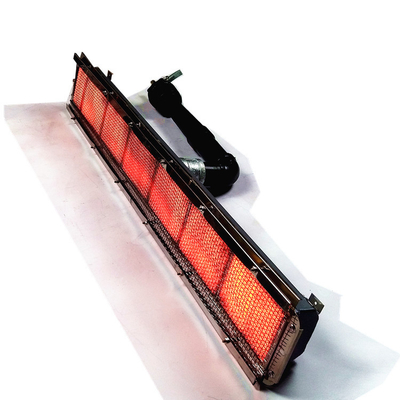

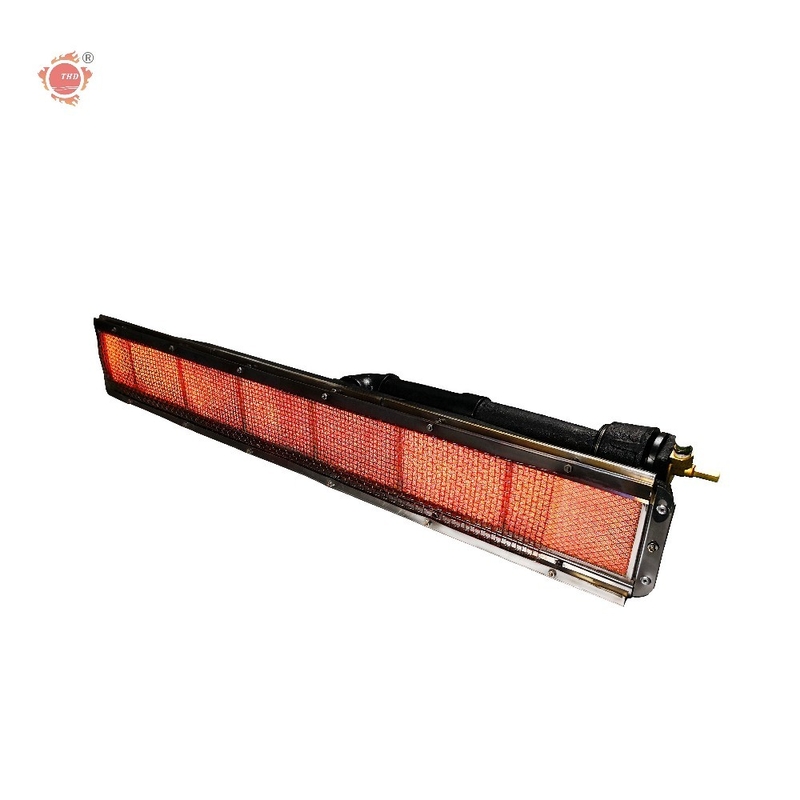

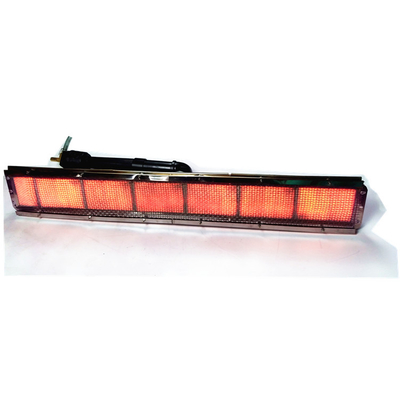

Flameless Infrared Catalytic Gas Burner Propane Heater For Powder Coating Oven
Product Introduction
As we know, usually, there are three ways to transfer heat:
1. Radiation 2. Convection 3. Conduction and their thermal efficiency decrease in turn
Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
For common ceramic burner, it heats ceramic plate and then ceramic plate release infrared ray. But Haodong infrared burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner, which transfer rate reach up to 90%.
|
Model
|
Dimension | N.W. | Gas Type | Material | Heat Output | Gas Consumption |
|
|
L*W*H(mm) | kg | Kcal/h | NG(m3/h) /LPG(kg/h) | ||
|
HD262 |
930*130*175 | 7.8 | NG/LPG | galvanized sheet, ceramic plate | 9360 | 0.8 0.74 |
Gas Industrial Infrared Ceramic Heater Main Material:
1. Shell Body: Cast Iron,Galvanized Sheet
2. Air blast pipe: Cast Iron
3.Radiant Part: Rare earth ceramic heating part
4. Nozzle: Brass
5.Up cover: Stamped stainless iron
Advantage
1.High energy transfer rate:above 95%,other gas burner only 75%-80%
2.High Efficiency:start work in 8 seconds
3.Individual operation:Each burner has individual ignition control system,some problem will not affect other burner’s working
4.IR heating directly : heat direct by Radiant Infrared Ray,no need combusion chamber ,blower
5.Environment protecting: Low pollution
More products
Application
This infrared gas burner fits for: Drying oven - animal foods, cereal and vegetable crops.
Curing oven - dry powder and wet paint coating applications, including stove enamelling and vitreous enamel Plastic shrink wrapping. Heat walls - for textile, carpet and paper drying. Heat treatment ovens.
Forced draught installations - fabrication,pre-heating. Foundry mould and core drying.
Die heating. Ceramic holloware and flatware - prior/post glazing. Metal billet heating. Metal annealing.
Rubber&plastic forming,glass anneal process,nonwoven fiber drying.
