THD2606 PLC Poultry Farm Gas Brooder To Cover 1000 Pheasant Chicks 320*270*130mm
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 2606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | to be negotiatable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 piece/piece per month |
|
Detail Information |
|||
| Model: | THD2606 | Dimension: | 320*270*130mm |
|---|---|---|---|
| Weight: | 1.7 | Color: | Silver |
| Core Components: | PLC | CO: | Less Than 80ppm |
| High Light: | PLC Poultry Farm Gas Brooder,320*270*130 mm Poultry Farm Gas Brooder,1000 Pheasant Chicks Poultry Gas Brooder |
||
Product Description
Poultry Gas Brooder Gas Brooder To Cover 1000 Pheasant Chicks For Poultry Farm
Production Induction
On the basis of catalytic technology, our factory has developed and produced infrared catalytic gas burners, heaters and brooders which are successfully applied in painting, food baking, bbq grill, poultry heating etc. It will save 20% money for the users in running process, also benefit the society a lot in the economy and the environment protection.we manufacture gas brooder for poultry farm, indoor and outdoor warming.
Our Advantage
|
MODEL
|
N.W. | Dimension | Gas Consumption | Heat output |
|
|
kg | |||
|
THD2606
|
1.7
|
Out over 320*270*130 | 0.24m3/h 0.18kg/h | 2.46Kw/h 2116Kcal/h |
Operating Steps
A. Before use, please check the heater ceramic plate surface is intact, make the distance between probe at burning net and the ceramic plate to maintain 2-5mm(below picture). Install the heater, check whether the gas circuit leakage, adjust the pressure to the heater required.(Natural gas / LPG
working pressure 2800-5000 Pa, biogas working pressure higher than 8000Pa).
B. Open the main gas valve, turn the round copper valve at the heater backside to the maximum fire
position, press inward vigorously, make gas through.
C. Ignite at net gap with a lighter, keeping pressed the round copper valve about 10-20 seconds until
the heater ceramic plate surface get red.
D. When successful ignition, release the round copper valve. If unsuccessful ignition or fire off during
use, the brass cut-off valve will shut off automatically gas source to ensure safety.
E. In according to the fire direction on the round copper valve, user can adjust the fire as required.
F. Please close the main valve and gas source when don’t use.
B: Open the main gas valve, turn the round copper valve to the big fire position, press inward
Product Working Principle and Operation
Both 2 gas brooder heater: 1 gas heater can supply heat for 10-15 sqm, about 800 chicks.
Gas heater installation height: from ground 0.9~1.5m.

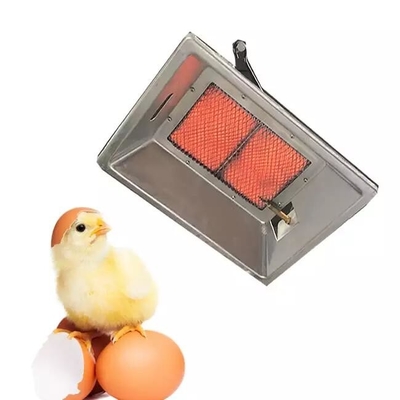

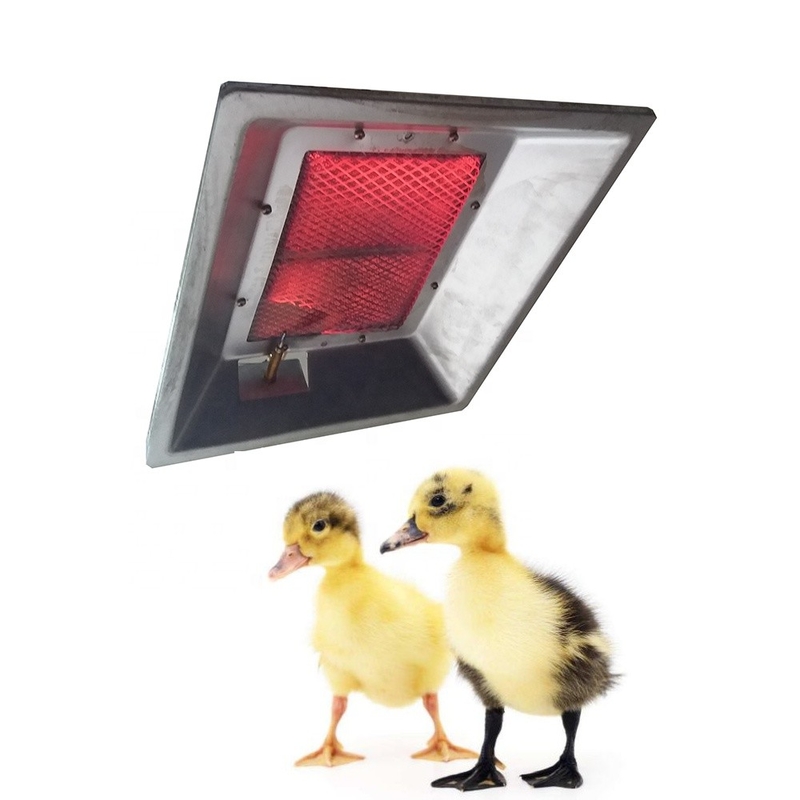

Ceramic plate catalytic gas heater for poultry farm heating
Application
Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.
Company Induction
Established in 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner, heater, brooder. We are located in Chongqing, with convenient transportation access.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the combustion catalyst and the correlated patent technique are all included.
