NG LPG Infrared Ceramic IR Heater Poultry Farm Gas Heater For Brooding
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 6808 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | USD to be negotiable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 50per 7 |
|
Detail Information |
|||
| Model: | THD6808 | Size: | 675*235*95mm |
|---|---|---|---|
| Weight: | 3.7 | Application: | Farms, Warehouse |
| Installation: | Ceiling, Wall Mounted | Techonology: | Covered Rare Earth Catalyst On The Ceramic Tile |
| Material: | Aluminzied Steel | ||
| High Light: | Infrared Ceramic IR Heater,LPG Ceramic IR Heater,NG Gas Heater For Brooding |
||
Product Description
NG/ LPG Infrared Gas Brooder Ceramic Ir Heater For Chicken Farm Heating Equipment
Production Induction
As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually it can save 10~20% gas energy and cost.
ic burner.
|
MODEL
|
N.W. | Dimension | Gas Consumption | Heat output |
|
|
kg | |||
|
THD6808 with auto ignition parts |
3.7
|
Out over 675*235*95 | 0.39m3/h 0.27kg/h | 3.9Kw/h 3400Kcal/h |
Gas Heater Parts

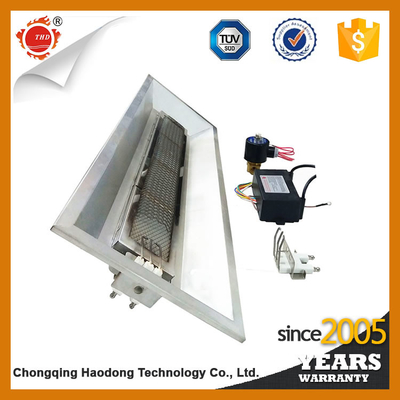

One stanhdard gas brooder including one heater, one electric pulse ignitor, one ignition pin and one solenoid valve.
Operating Steps
Advantage
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving: in the same power, our heater saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%
4. THD2608/THD6808 coud keep the room constant temperature automatically when use thermostat.
5. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to
prevent gas leakage.
6. THD2606/THD6806 could use biogas, and adjust fire big or small.
7. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters,
heating 600 ~ 1500 chickens.
8. Silent, light and compact
Application
1) Heating of sports hall, church, patio, garage, exhibition hall, industrial building, workshop, warehouse etc.,
2) Poultry-livestock heating: widely used in poultry heating, farrowing, nursery , greenhouse etc.
Company Introduction
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc. Good quality and reputation makes our products popular in both domestic and overseas markets.
FAQ
1.MOQ of Infrared ceramic gas heater?
Its usually according to customers' requirements, and sample first is supported.
2. Could I have a sample to test first?
Yes, trail order is OK.
3. Is the Infrared ceramic gas burner easy to install?
Yes. It connect with gas cylinder directly and use.
4.what's payment way ?
Paypal, west union, T/T, trade assurance,L/C.
