CE Livestock Gas Gas Poultry Heaters Husbandry For Chicken Farm
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 2608 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | to be negotiatable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 piece/piece per month |
|
Detail Information |
|||
| Model: | THD2608 | Size: | 320*270*130mm |
|---|---|---|---|
| Weight: | 2.7 | Color: | Silver |
| Advantage: | 20% Energy Saved | Fuels: | LPG, NG, Propane |
| Lifespan: | Above 11000hrs | ||
| High Light: | CE Gas Poultry Heaters,Husbandry Gas Poultry Heaters,Livestock Gas Heater For Chicken Farm |
||
Product Description
CE Livestock Gas Brooder Heater Wholesale Chick Gas Heater Poultry Husbandry Equipment
Production Indutroction
Infrared body offers cost effective and can install in all direction. Our infrared gas brooder offer high intensity medium-long wave and low gas consumption up to 20%. It widly be used in the farm to keep the livestock warm.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen
Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the
combustion catalyst and the correlated patent technique are all included.
On the basis of catalytic technology, our factory has developed and produced infrared catalytic gas burners,
heaters and brooders which are successfully applied in painting, food baking, bbq grill, poultry heating etc.
It will save 20% money for the users in running process, also benefit the society a lot in the economy and the
environment protection.
|
MODEL |
N.W. | Dimension | Gas Consumption | Heat output |
|
|
kg | |||
| THD2608 with auto ignition parts |
2.7 |
Out over 320*270*130 | 0.24m3/h 0.18kg/h | 2.46Kw/h 2116Kcal/h |
Operating Steps
A. Before use, please check the heater ceramic plate surface is intact, make the distance between probe at burning net and the ceramic plate to maintain 2-5mm. Install the heater with diamter 6mm flexible pipe, check whether the gas circuit leakage, adjust the pressure to the heater required. (Natural gas / LPG working pressure 2800-5000 Pa, pls note biogas can’t be used for automatic type heater).

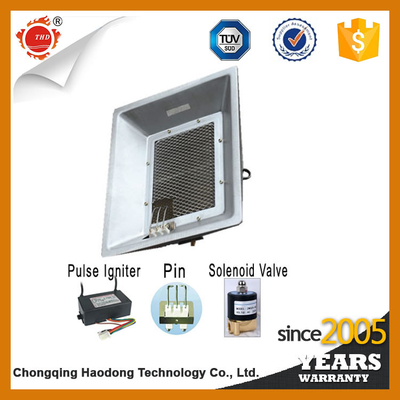

B. Open the main valve on the gas source and the switch on the temperature control cabinet. The igniter, ignition needle and the solenoid valve automatically make ignition. Heater is working properly,
If heater works normally, green light on temperature control cabinet is always on,or else the red light
on.
C. Please close the main valve and gas source when don’t use.
Our Advantage
2. Environment protection:CO≤80ppm,NOx≤10ppm,CHx≤50ppm.
3. THD2608 could keep the room constant temperature automatically when use thermostat.
4. It can cut off the gas automatic and protect the burner when the flameout.
5. Easy to be clean and fixed.
6. long usefull time:≥11000 hours.
7. Silent,light and compact when it is working.
Notice
★ Pls keep the copper valve downward sloping when installation the heater (as shown above), to prevent overheating.
★ At the beginning, there is blue flame, it’s normal phenomenon. After several minutes it will disappear.
★ If the blue flame always stay on ceramic plate, pls check whether the pressure too low; If there is a big red flame, maybe the pressure is too high or ceramic plate is broken; Please adjust the pressure reducing valve or booster pump.
Application
Infrared heat lamp for pig farm chicken house THD2608 can save energy consumption and environmental, now this kind of infrared gas burner is very already widely used in all kinds of industrial and house heating. Like poultry farm ,greenhouse, room,indoor, workshop, terrace,church...
