Poultry Propane NG / LPG Gas Brooder Equipment For Animal Husbandry
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | 2606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1unit |
|---|---|
| Price: | to be negotiatable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | Western Union, T/T, L/C |
| Supply Ability: | 1000 piece/piece per month |
|
Detail Information |
|||
| Model: | THD2606 | Size: | 320*270*130mm |
|---|---|---|---|
| Weight: | 1.7 | Color: | Silver |
| Advantage: | 20% Energy Saved | Fuels: | LPG, NG, Propane |
| High Light: | Poultry LPG Gas Brooder,Propane LPG Gas Brooder,NG Poultry Brooder Equipment |
||
Product Description
CE NG/ LPG Gas Brooder Used In Poultry Equipment For Animal Husbandry Equipment
Production Induction

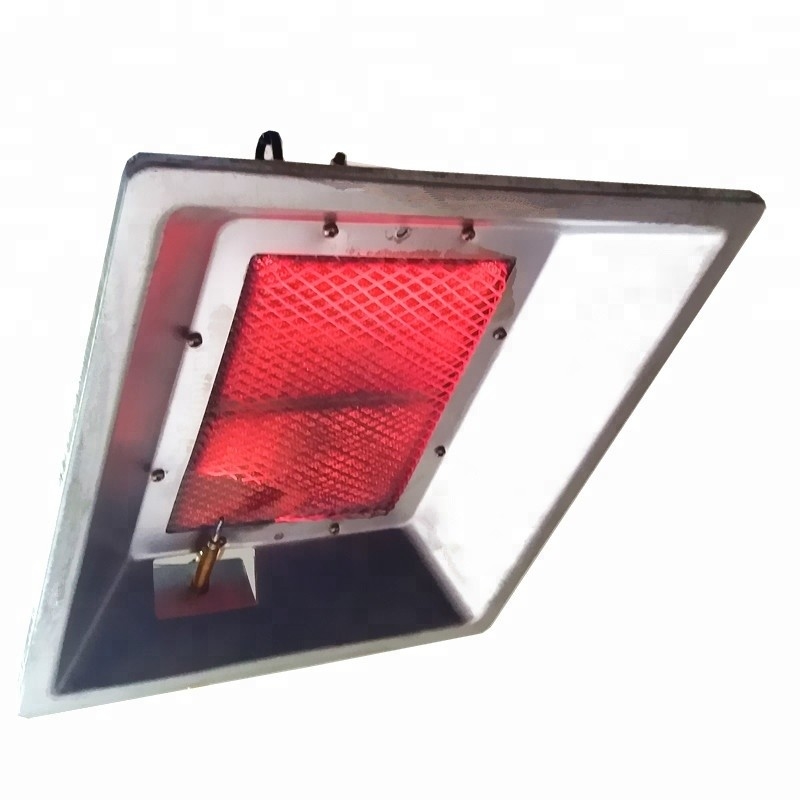

Infrared body offers cost effective and can install in all direction. Our infrared gas brooder offer high intensity medium-long wave and low gas consumption up to 20%. It widly be used in the farm to keep the livestock warm.
|
MODEL
|
N.W. | Dimension | Gas Consumption | Heat output |
|
|
kg | |||
|
THD2606
|
1.7
|
Out over 320*270*130 | 0.24m3/h 0.18kg/h | 2.46Kw/h 2116Kcal/h |
Operating Steps
A. Before use, please check the heater ceramic plate surface is intact, make the distance between probe at burning net and the ceramic plate to maintain 2-5mm(below picture). Install the heater, check whether the gas circuit leakage, adjust the pressure to the heater required.(Natural gas / LPG
working pressure 2800-5000 Pa, biogas working pressure higher than 8000Pa).
B. Open the main gas valve, turn the round copper valve at the heater backside to the maximum fire
position, press inward vigorously, make gas through.
C. Ignite at net gap with a lighter, keeping pressed the round copper valve about 10-20 seconds until
the heater ceramic plate surface get red.
D. When successful ignition, release the round copper valve. If unsuccessful ignition or fire off during
use, the brass cut-off valve will shut off automatically gas source to ensure safety.
E. In according to the fire direction on the round copper valve, user can adjust the fire as required.
F. Please close the main valve and gas source when don’t use.
B: Open the main gas valve, turn the round copper valve to the big fire position, press inward
Our Advantage
Product Working Principle and Operation
System components:
Manual ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure
gauge, manual gas heater.
Automatic ignition section required -- gas source, the main valve, pressure reducing valve, gas pressure gauge, temperature control cabinet, thermocouple, automatic gas heater and ignition parts
Application
Poultry livestock heating:widely used in poultry heating,farrowing,nursery,grower-finisher,wean-to-finish,greenhouse etc.
Company Induction
Established in 2005, Chongqing Haodong Technology Co., Ltd is a manufacturer specialized in the research, development and production of infrared catalytic burner, heater, brooder. We are located in Chongqing, with convenient transportation access.
The products depend on the patent technique which is advanced in the field. The high performance Oxygen Storage Materials (OSM), the high specific surface area materials which can resist high temperature, the combustion catalyst and the correlated patent technique are all included.
Packing and Delivery
