Infrared Lpg Gas Poultry Brooder Heater Chicks Heating System For Birds THD6806
Product Details:
| Place of Origin: | CHONGQING, CHINA |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD6806 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 1pc in 1 inner box (78*26*15cm), 2pcs packed in 1 Outer Carton(81*31*31cm) |
| Delivery Time: | 5-10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Infrared Burner | Color: | Grey |
|---|---|---|---|
| Power Source: | LPG/NG, Biogas | Dimension: | 675*235*95mm |
| Weight: | 2.8KG | Use: | Warm For House, Poultry Farm, Sport Hall, Greenhouse, Workshop. |
| Installation: | Wall Mounted, Portable | Life Time: | Above 11000hr |
| Product Name: | Poultry Chicks Heating System Infrared Lpg Gas Heater Brooder For Birds THD6806 | ||
| Highlight: | Infrared Lpg Gas Poultry Brooder Heater,THD6806 Poultry Brooder Heater,Chicks Infrared Poultry Brooder Heater |
||
Product Description
Poultry chicks heating system infrared lpg gas heater brooder for birds THD6806
About us:
Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater.
After coated with processed black rare-earth catalyst on the ceramic surface,the energy-transfer rate goes up greating,can save more than 20% energy than non-catalytic type.At the same time, it prolongs the use life of ceramic plate.
Why do you choose our Poultry chicks heating system infrared lpg gas heater brooder for birds THD6806???
- Saving 20% gas.
- Friendly to environment.
- Long useful time: ≥11000hr
- Flameless protective device.
- Can use Biogas as fuel.
--Specification and model
Poultry chicks heating system infrared lpg gas heater brooder for birds THD6806
Now based on IR Catalytic technology, we manufacture gas brooder for poultry house, with two ways to ignition: manual ignition and auto-ignition type.
| MODEL | Dimension | Consumption | Heat Output | |||
| mm | NG(m3/h) | LPG(kg/h) | Biogas(m3/h) | Kw/h | Kcal/hr | |
| Manual ignition type gas heater | ||||||
| THD2606 |
Out cover 320*270*130 Ceramic plate190*165 |
0.24 | 0.18 | 0.5 | 2.46 | 2116 |
| THD6806 |
Out cover 675*235*95 Ceramic plate 500*68 |
0.42 | 0.29 | 0.7 | 3.9 | 3400 |
| Auto-ignition type gas heater | ||||||
|
THD2608 With auto-igntion parts |
Out cover 320*270*130 Ceramic plate190*165 |
0.24 | 0.18 | N/M | 2.46 | 2116 |
|
THD6808 With auto-ignition parts |
Out cover 675*235*95 Ceramic plate 500*68 |
0.39 | 0.27 | N/M | 3.9 | 3400 |
--Detail photos:

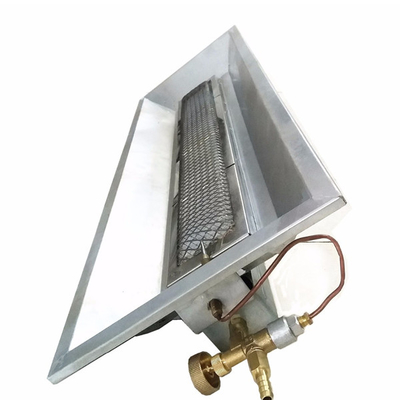

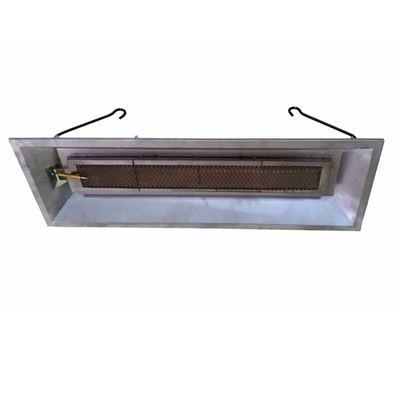

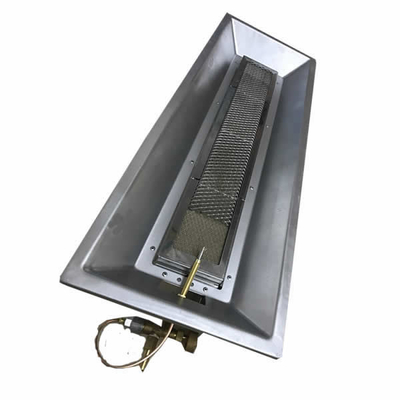

Detail photos: THD6806 manual ignition type gas heater with flameless protective device.
Product feature:
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same
air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving: in the same power, our heater saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥95%
4. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to
avoid gas leakage.
5. THD2606/THD6806 could use biogas, and adjust fire big or small.
6. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 20 square meters,
heating 1500 chickens.
7. Silent, light and compact.
Application of Poultry chicks heating system infrared lpg gas heater brooder for birds
Widely used in poultry farms, poultry houses, livestock farms, plant greenhouses, courtyards, cafe terraces, workshop etc.
