Hanging Conveyor Transmission Roller Chain For Jeans Laundry Garment Factory
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
| Model Number: | 5075 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10m |
|---|---|
| Packaging Details: | carton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 m each week |
|
Detail Information |
|||
| Material: | Carbon Steel | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Application: | Factory Transmission | Pitch: | 150mm,300mm |
| Function: | Surface Treatment | Structure: | Roller Chain |
| High Light: | Conveyor Transmission Roller Chain,Hanging Transmission Roller Chain |
||
Product Description
Hanging transmission Conveyor Chain for jeans laundry garment factory Specification
We are the Manufcturer of overhead conveyor chain for more than 10 years. We have rich experience in producing, designing and installing soverhead conevyor chains. It use for industrial fctory for transport a lot .We can provide all the components needed to hanging conveyor chain and also could calculate the required materials according to the customer's design .
| MODEL ITEM |
UH-5075-S Standard chain |
UH-5075-HH Heavy-duty chain
|
UH-5075-HV Heavy-duty chain |
UH-5075-HA Heavy-duty chain |
|
Suspension Spacing (mm) |
150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
|
Chain's Weight (kg/m) |
4.2 | 4.58 | 4.83 | 5.3 |
|
Single hanger loading ability (≤kg) |
35 | 40 | 45 | 50 |
|
Chain's Allowed Pull Force (≤kgf) |
3000 | 3000 | 3000 | 3000 |
|
Chain's Catastrophic Pull Force (≥kgf) |
5500 | 5500 | 5500 | 5500 |
|
Working temperature (≤°C) |
250 | 300 | 300 | 400 |
| Applicable Equipment | General conditions |
Large bending; High temperature; |
High temperature; Heavy work piece; Frequently lifted; |
High temperature; Heavy work piece; Complicated route; |
| Material | 16# Medium-carbon steel, Steel A3 | |||
| Remark: The above technical data is for our usual over head conveyor chain: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements | ||||
Hanging transmission Conveyor Chain for jeans laundry garment factory

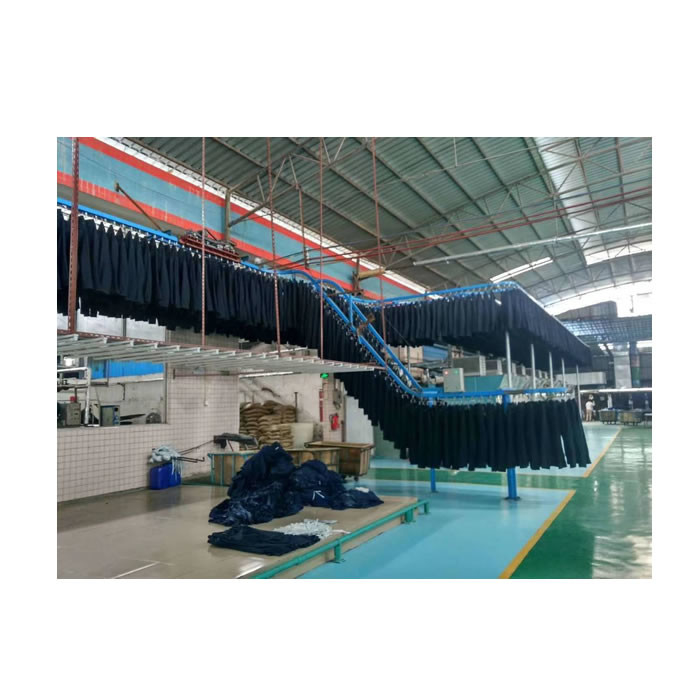

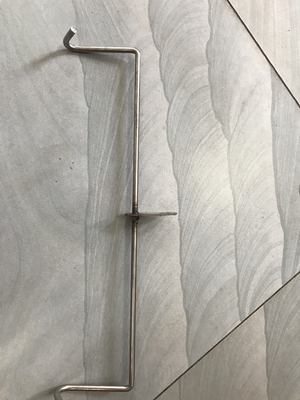

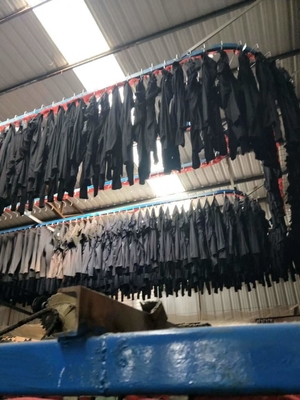

Our overhead conveyor be most used in garment industrial , our special hangers be used for automatic unloading the clothes, which save the labor a lot. It is a good transport way for jeans transport.
Hanging transmission Conveyor Chain for jeans laundry garment factory Technical data
- Chain Material:16# Medium-carbon steel, Steel A3
- Track material: Steel A3
- The drive system better to be 5~7 meters after the adjust seat
- If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
- If chain fall of the drive, check the driving wheel
