Suspension Overhead Chain Conveyor Systems For Factory Paint Metal Coating
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | UH5075-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, pallet |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Meters per Month |
|
Detail Information |
|||
| Product Name: | UH5075-S | Material Of Guide Wheel: | 16Mn |
|---|---|---|---|
| Material Of Main Structure: | Carbon Steel | Chain Pitch/Suspension Spacin: | 150mm |
| Chain's Weight: | 4.2kg/m | Single-span Weight: | ≤35kg |
| Chain's Allowable Pull Force: | ≤3000kgf | Chain's Catastrophic Pull Force: | ≥5500kgf |
| Working Temperature: | ≤250℃ | Other Products: | QXG Chain,forged Chain |
| High Light: | Suspension Overhead Chain Conveyor Systems,Metal Coating Overhead Chain Conveyor Systems |
||
Product Description

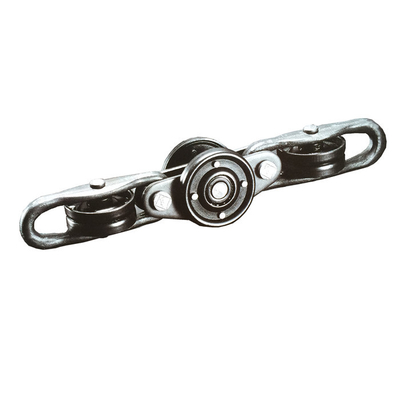

Overhead Suspension Chain Conveyor Chain For Factory Paint Or Metal Coating UH5075-S
Products Description
UH-5075 overhead trolley conveyor which also called five-ton conveyor is widely used for workshops
continual conveying such as surface treatment, paint spray, drying, cooling and finished product off line
etc for furniture factory, bicycle plants, electronic products factory, hardware factory and auto plants etc.
Standard Chain (UH-5S), horizontal wheel heavy-duty chain (UH-5HH) and all wheel heavy-duty chain
(UH-5HA) are specially designed for the overhead conveyor. High automatic mechanization and large
angle bending space make the installment more convenient and stable.
UH-5075 chain is widely applied in task performed by manual workers, less power consumption, low
noise, stable operating performance, user-friendliness and safe use.
Product Paramenters

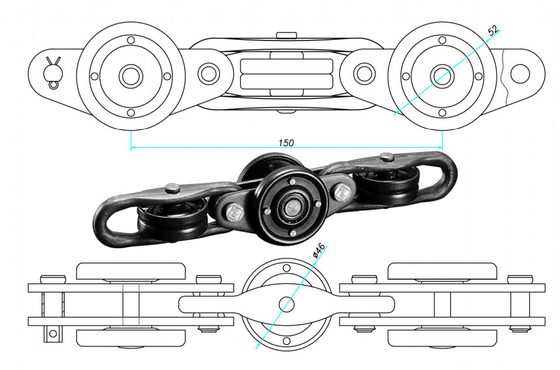

Enclosed Track Overhead Chain Conveyor Main Specification:
Details Images
Our Advantages
* Low noise
* Less power consumption
* Stable operate performance
* User-friendly and safe use
* Excellent extensity
* Make full use of space
* Large angle bending space
* High mechanization & automatization
* Close -up continual conveying equipment
* Work perfectly together with the ground facilities
* Make any turns on both horizontal plane and vertical planes
More products
Appliation

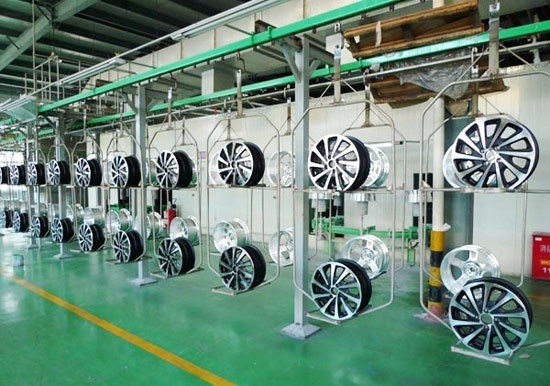

Overhead Trolly Conveyor Chain makes full use of space and works together with ground facilities, widely used in furniture factory,bicycle plant, electronic products line, auto plants etc.
It can turn on both horizonal and vertical plans, run across long routes and automatically transmit objects along scheduled route to destination. Working efficiecy and quality is improved and management level will be strengthened.
