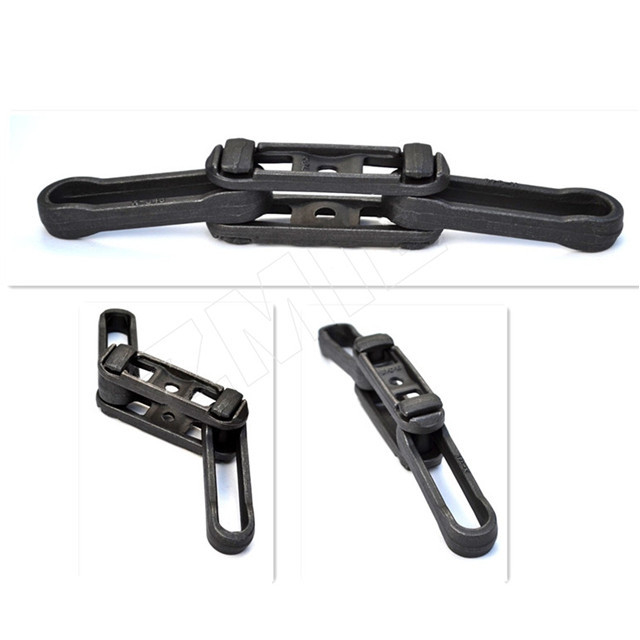

Heat Resistant Drop Forged Conveyor Chain For Powder Coating X348 X458 X678
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | X348 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50meter |
|---|---|
| Price: | To be negotiated |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 working day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000meter/meter per month |
|
Detail Information |
|||
| Weight:: | 3.9 KG | Automatic Grade:: | Automatic Machinery |
|---|---|---|---|
| Capacity:: | Motor | Key Machines: | Conveyor Chain |
| Chain's Allowable Pull Force: | 110 | Feature: | Heat Resistant |
| Carriage Allowable Load:: | 150 | ||
| High Light: | X348 Drop Forged Conveyor Chain,X458 Drop Forged Conveyor Chain,X678 Heat Resistant Chain |
||
Product Description
Drop Forged Conveyor Chain System For Powder Coating X348 X458 X678
Product Introduction
This model has a good space conveyor, wide scope, the work piece can continuous operation at high temperature bake, harmful gas area, spray booth.The machine has low power consumption, low maintenance costs, durability, low noise, easy to operate.

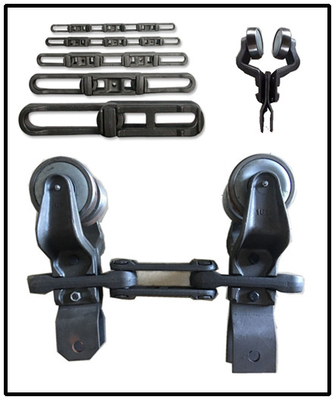

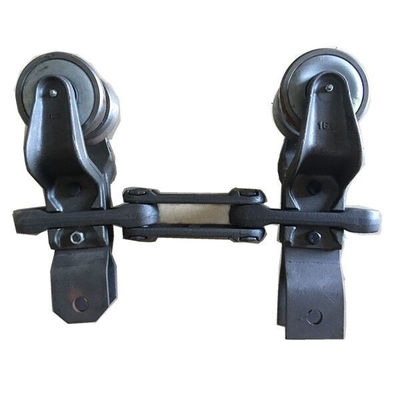

Supply the regular overhead I-beam overhead conveyor chain
X348(150KG),F-100(300KG),X458(300KG),X678(500KG)
Product Specification
|
ITEN/MODEL |
X348 | X458 | X678 |
|
Separation of suspension
|
T=76.2 | T=100 | T=160 |
|
chain's weight
|
3.9 | 4.8 | 9.2 |
|
Chain's allowable pull force
|
110 | 220 | 400 |
|
Carriage limit load
|
300 | 500 | 800 |
|
Carriage allowable load
|
150 | 250 | 500 |
|
Track specification
|
8 or 10 | 12 or 14 | 14 or 16 |
|
Working temperature
|
-20~200 | -20~200 | -20~200 |
|
Conveyor power
|
1.1, 2.2 | 1,5, 2.2 | 2.2, 3.4 |
Other Accessory
Hanger Turner : Employed with cross type or cross disk type hanger, installed on the particular location of the route. When the cross hanger walks to the redirector, the cross shaped arm touches it and revolve 90°.
Track Flange: Used for the mutual connecting of the two tracks, easy to construct and maintain with M10x20 bolt.
Track Install Hanger: While installing, squeeze the track inside the hanger and tighten it with screws. It can increase the locating and reliability and easy to dismantle.
Check Track: There is a hatch which can open the track, people can dismantle, install, check or maintain the conveying chains though the hatch. Each conveying route driving device should equipped with one set check track, usually located between driving device and take-up device for easy checking and maintenance.
High-temperature Chains Lubrican: Both high-temperature liquid and solid lubricant is available. The liquid type is added to oil-feeding cup or machine so as to lubricate the chain bearing, while solid type is for chains where friction happens frequently, thus to reduce the friction effect between chain and track. 15kg/bucket.
Manual /Automatic Oil Feeding Cup: Manual type: feed or drop some lubricant on the chains and track with brush, amount of lubricant is adjustable. Automatic type: Add a solenoid valve to oil groove based on the manual oil feeding cup, automatic oil feeding is realized though electric control.
Automatic Oil Sprayer: Specially designed for automatic conveying chains. The sprayer is divided to main frame and oil-spraying support, transparent oil pipes connecting two parts. This design is convenient to choose the location of main frame and different types of chains, oil spray support is adaptable. On other side, it’s convenient to check oil-feeding situation via transparent oil pipe.
Application

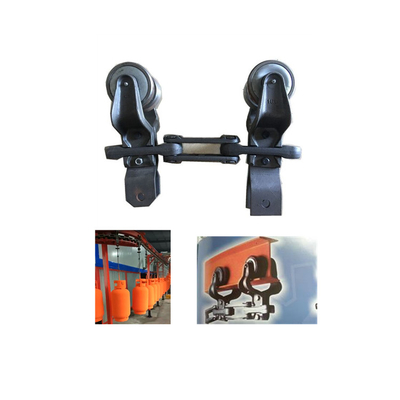

I-beam overhead conveyor chain is close-loop continual conveying equipment widely applied for continual convey of various industrial work pieces, such as surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.
