Painting Line Roller Overhead Conveyor Chain Enclosed Monorail
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
| Model Number: | 5075 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10m |
|---|---|
| Packaging Details: | carton |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000 m each week |
|
Detail Information |
|||
| Material: | Carbon Steel | Standard Or Nonstandard: | Standard |
|---|---|---|---|
| Application: | Factory Transmission | Pitch: | 150mm,300mm |
| Function: | Surface Treatment | Structure: | Roller Chain |
| High Light: | Painting Line Overhead Conveyor Chain,Monorail Overhead Conveyor Chain,Enclosed Roller Chain For Conveyor |
||
Product Description
Painting Line Overhead Conveyor Chain Enclosed Monorail Roller Chain
H-5075 overhead trolley conveyor which also called five-ton conveyor is widely used for workshops continual conveying such as surface treatment, paint spray, drying, cooling and finished product off line etc for furniture factory, bicycle plants, electronic products factory, hardware factory and auto plants etc.

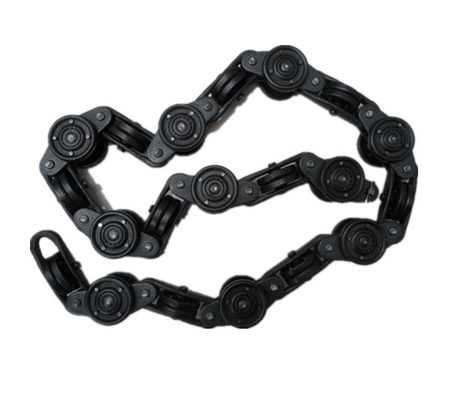

Overhead Conveyor Chain Standard chain (UH-5S), horizontal wheel heavy-duty chain (UH-5HH) and all wheel heavy-duty chain (UH-5HA) are specially designed for the overhead conveyor. High automatic mechanization and large angle bending space make the installment more convenient and stable.UH-5075 chain is widely applied in task performed by manual workers, less power consumption, low noise, stable operating perfor.
| MODEL ITEM |
UH-5075-S Standard chain |
UH-5075-HH Heavy-duty chain
|
UH-5075-HV Heavy-duty chain |
UH-5075-HA Heavy-duty chain |
|
Suspension Spacing (mm) |
150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
|
Chain's Weight (kg/m) |
4.2 | 4.58 | 4.83 | 5.3 |
|
Single hanger loading ability (≤kg) |
35 | 40 | 45 | 50 |
|
Chain's Allowed Pull Force (≤kgf) |
3000 | 3000 | 3000 | 3000 |
|
Chain's Catastrophic Pull Force (≥kgf) |
5500 | 5500 | 5500 | 5500 |
|
Working temperature (≤°C) |
250 | 300 | 300 | 400 |
| Applicable Equipment | General conditions |
Large bending; High temperature; |
High temperature; Heavy work piece; Frequently lifted; |
High temperature; Heavy work piece; Complicated route; |
| Material | 16# Medium-carbon steel, Steel A3 | |||
| Remark: The above technical data is for our usual over head conveyor chain: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements | ||||
Painting Line Overhead Conveyor Chain Enclosed Monorail Roller Chain

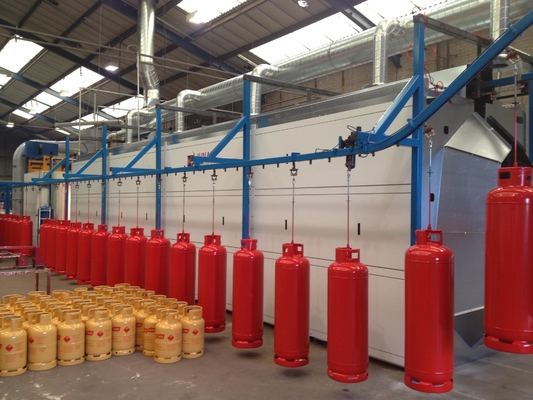

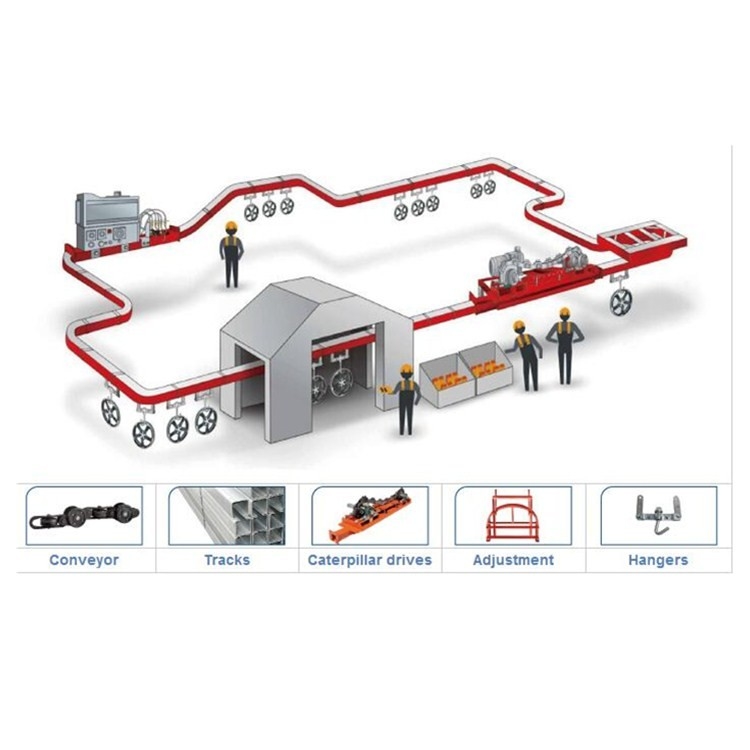

The Overhead conveyor is suitable for baking paint, metal palstic coating, production and assembly lines in factories.It suitable for furniture factories, bicycle factories, electronics factories, plating factories, hardware factories, cowhide products factories, automobile factories, etc. Suspended conveyor is divided into lifting type, pushing type and towing type. For outdoor park for texitile factory
Painting Line Overhead Conveyor Chain Enclosed Monorail Roller Chain Technical data
- Overhead Conveyor Chain Material:16# Medium-carbon steel, Steel A3
- Track material: Steel A3
- The drive system better to be 5~7 meters after the adjust seat
- If dont move, check if any straight and curve rails; check the motor and chain; check if use high temperature chain lubricant
- If chain fall of the drive, check the driving wheel
