QXG Industrial SS Conveyor Chain Overhead Transmission Conveyor Roller Chain
Product Details:
| Place of Origin: | China |
| Brand Name: | QXG |
| Certification: | CE |
| Model Number: | 200 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50meter |
|---|---|
| Price: | USD Negotiable |
| Packaging Details: | wooden box |
| Delivery Time: | 5-8 working day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000meter/meter per month |
|
Detail Information |
|||
| Automatic Grade: | Automatic | Working Temperature: | 280 |
|---|---|---|---|
| Usage: | Workshops Continual Conveying | Application Conditions: | General Conditions |
| Tensile Strength: | 5 Ton | Chain Movement Speed: | :0.26~6.1 |
| High Light: | Industrial SS Conveyor Chain,Overhead SS Conveyor Chain,QXG Conveyor Roller Chain |
||
Product Description

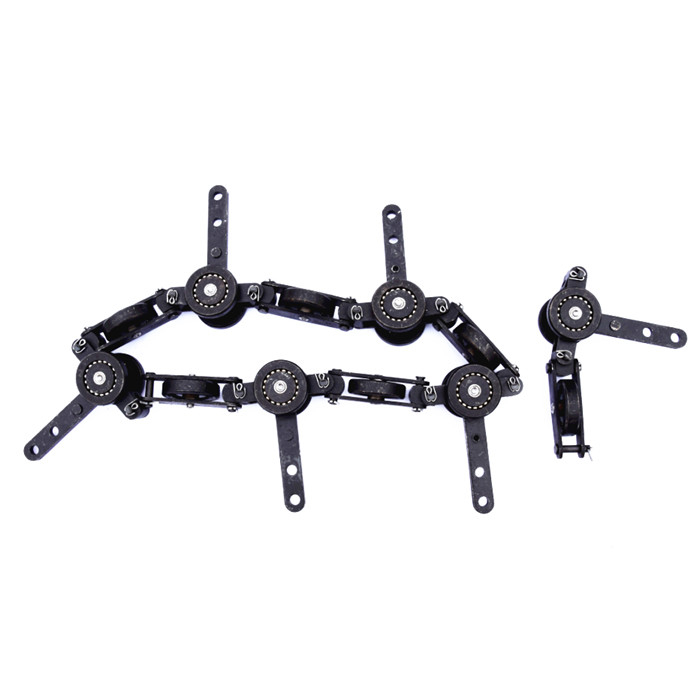

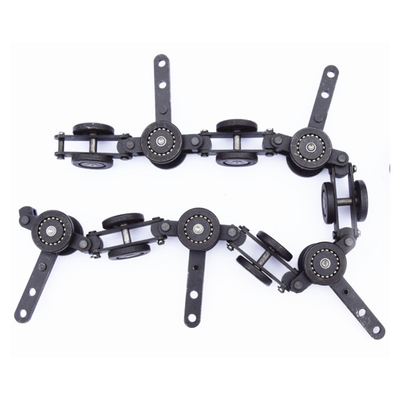

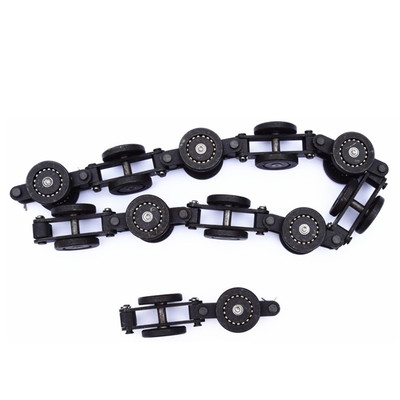

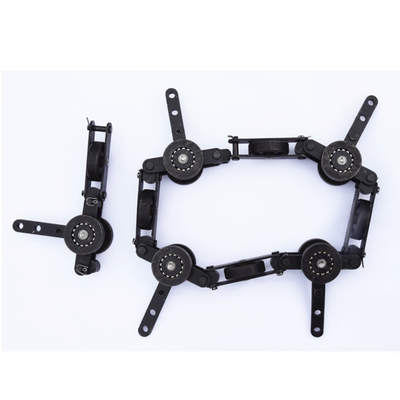

Stainless Steel Industrial Overhead Transmission Conveyor Painting Line Roller QXG Chain
The suspension conveyor chain adopts ball bearing as the chain wheel. The guide wheels are made of 16Mn material and deep-processed. The main structure is made of carbon steel, which can turn and climb various environments at will. The chain pitch is commonly used in 150, 200, 206, 240, 250, 300 (mm), etc., and is widely used in the long-distance transportation of workpieces, floor lifting, aerial storage, feeding and other processes as well as automated coating production lines.
Product Introduction
product specification
|
ITEM/ MODEL |
QXG-200/206A | QXG-200/206B | QXG-240/250A | QXG-240/250B | QXG-300 |
|
Chain pitch
|
200/206 | 200/206 | 240/250 | 240/250 | 300 |
|
Sigle-span weight
|
≤35 | ≤40 | ≤50 | ≤55 | ≤100 |
|
chain's weight
|
5.2 | 6.2 | 6.5 | 7.3 | 13 |
|
chain's allowable pull force |
3 | 3 | 5 | 5 | 10 |
|
chain's catastrophic pull force
|
≥30 | ≥30 | ≥50 | ≥50 | ≥100 |
|
Working temperature |
≤280 | ≤280 | ≤280 | ≤280 | ≤280 |
|
Chain movement speed
|
0.26~6.1 | 0.26~6.1 | 0.26~6.1 | 0.26~6.1 | 0.26~6.1 |
Material
Chain button: 16# medium-carbon steel
Chain plate: A3 steel
Chain wheel: 16# medium-carbon steel
1. Chain: Standard, horizontal wheel heavy type, vertical wheel heavy type, extra heavy duty type, drop forged chain.
2.Track: straight track, orizontal curved track, up-down track, swing elbow, check track etc.
3. Driving device: standard type, heavy-duty type; Operating principle: the driving device adjusts the momentum that the motor output, after the power increased by speed reduction, it will pass to driving caterpillar, the pusher dogs will stir the chain to move forward.
4. Take-up device: Take-up device is to keep the chain in the state of original tension, compensate the tensile deformation caused by tensile force or temperature while working. Make sure certain tensile force exists between driving device and take-up device. It is usually placed on the back. Heavy type take-up device is depended on the weight of the heavy plate on device, to adjust the looseness and tenseness of the chains so as to assure the normal operation of the driving device. Relatively stable tensile force and widely applied.
5. Hanger: Cross disc type, cross type, bearing type, gear disc type, electrophoresis type, C type, U type, Y type etc.
6. Lubrication tool: Full automatic filling machine, automatic oil feeder, manual oil feeder and high temperature chain oil.
Application
Hanging conveyor chain is suitable for factory paint, metal coating, production assembly line, such as furniture factory, bicycle factory, electronics factory, electroplating factory, hardware factory, leather goods factory, automobile factory, etc.
Application
If you have any question, please contact us.
