CS Roller Overhead Conveyor Chain Powder Coating Conveying Equipment X348
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | X348 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 Meters |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, pallet |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union, MoneyGram |
| Supply Ability: | 100000 Meters per Month |
|
Detail Information |
|||
| Product Name: | X348 | Material Of Main Structure: | Carbon Steel |
|---|---|---|---|
| Chain's Weight: | 3.9kg/m | Separation Of Suspension: | T=76.2mm |
| Chain's Allowable Pull Force: | 110kn | Carriage Allowable Load: | 150kg |
| Carriage Limit Load: | 300kg | Track Specification: | Work 8 Or Work 10 |
| Working Temperature: | -20~200℃ | Conveyor Power: | 1.1kw,2.2kw |
| High Light: | CS Overhead Conveyor Chain,Conveying Equipment Overhead Conveyor Chain,X348 Roller Conveyor Chain |
||
Product Description
Conveying Equipment Powder Coating Overhead Conveyor Chain Roller Chain X348
Products Description

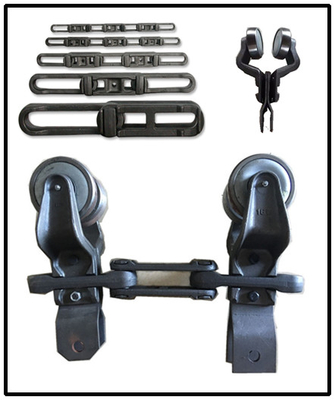

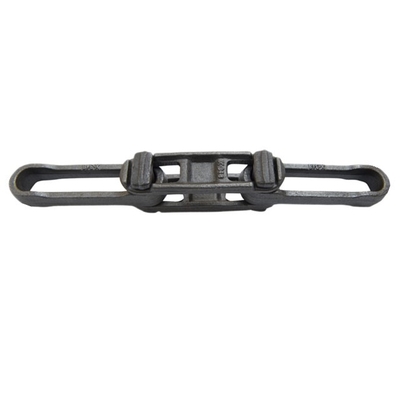

The suspension conveyor chain adopts ball bearing as the chain wheel.The guide wheels are made of 16Mn material and deep-processed.The main structure is made of carbon steel,which can turn and climb various environments at will.The chain pitch is commonly used in 150,200,206,240,250,300(mm),etc.,and is widely used in the long-distance transportation of workpieces,floor lifting,aerial storage,feeding and other processes as well as automated coating production lines.
Product Paramenters
Enclosed Track Overhead Chain Conveyor Main Specification:
Details Images
Our Advantages
* Low noise
* Less power consumption
* Stable operate performance
* User-friendly and safe use
* Excellent extensity
* Make full use of space
* Large angle bending space
* High mechanization & automatization
* Close -up continual conveying equipment
* Work perfectly together with the ground facilities
* Make any turns on both horizontal plane and vertical planes
More products
Appliation

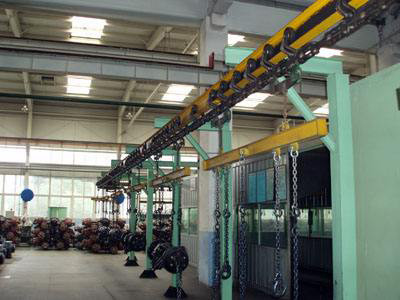

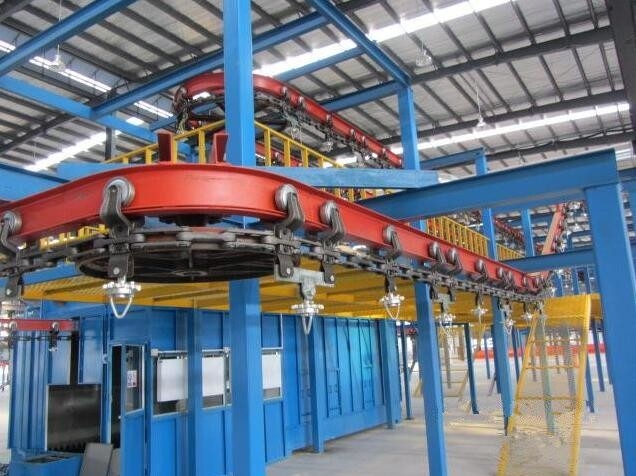

Overhead Trolly Conveyor Chain makes full use of space and works together with ground facilities, widely used in furniture factory,bicycle plant, electronic products line, auto plants etc.
It can turn on both horizonal and vertical plans, run across long routes and automatically transmit objects along scheduled route to destination. Working efficiecy and quality is improved and management level will be strengthened.
