Smokeless Flameless Poultry Brooder Heater Chicks Pigs Gas Brooding In Poultry
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD6806 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Product Name: | THD6806 | Material: | Aluminized Steel |
|---|---|---|---|
| Dimension: | 675*235*95mm | Burning Plate: | Ceramic Plates With Catalyst |
| Heat Output: | 3400Kcal/h | Heat Transfer Rate: | Above 95% |
| Plate Lifespan: | Above 11000hrs | Advantage: | Save Above 20% Energy |
| High Light: | Flameless Poultry Brooder Heater,Smokeless Poultry Brooder Heater,Chicks Gas Brooding In Poultry |
||
Product Description
CE Approved Smokeless And Flameless Poultry Brooder Heater For Chicks Pigs Farm
Products Description
Haodong Infrared Burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
Gas Infrared Burner Technical Parameters
| SN | Items | Technical Parameters |
| 1 | Kinds of Gas | NG/LPG/Oil Field Gas/Artificial Gas |
| 2 | Perfect Combustion Temperature | ≤380℃ |
| 3 | Heat Source Temperature | 850℃ |
| 4 | Heating-up Temperature Range | 35℃-500℃ |
| 5 | Wavelength Range | 4 um -15 um |
| 6 | Working Pressure | 2000pa(NG)/2800pa(LPG)~~5000pa |
| 7 | Life time | Above 11000hrs |
| 8 | Waste Gas Emission | CO≤80ppm;NOx≤10ppm;CHx≤50ppm |
| 9 | Conversion Rate | Above 90% |
Gas Poultry and Greenhouse Infrared Burner Main Material:
2.Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3.Nozzle: brass
4.Up cover: Aluminized steel sheet

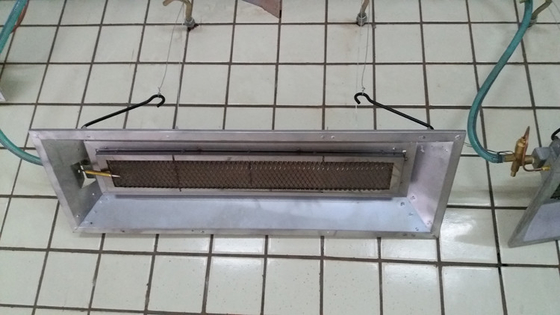

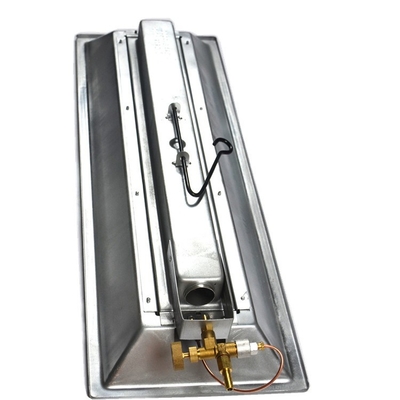

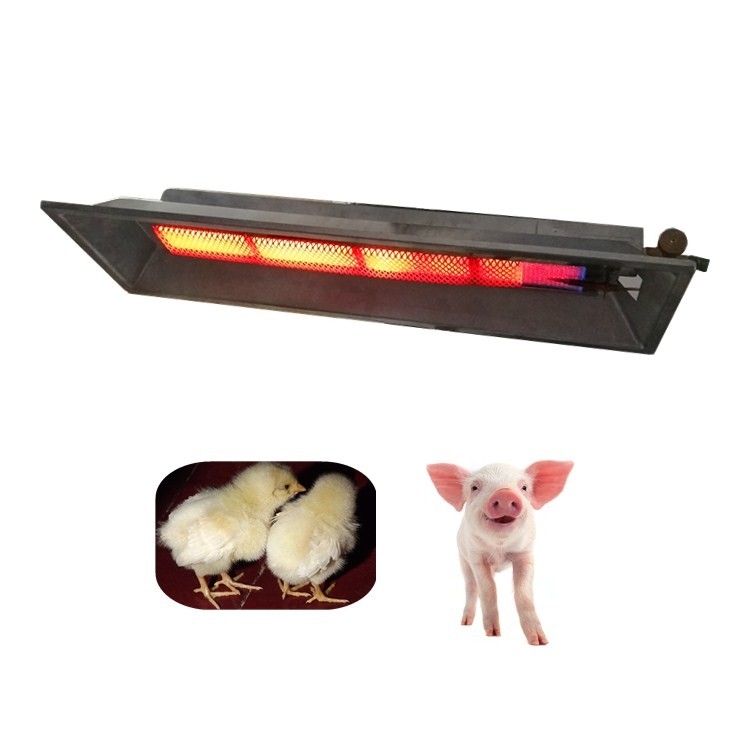

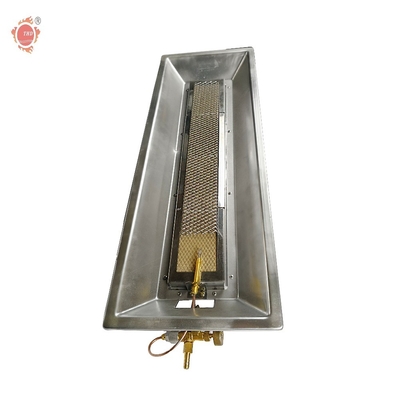

Details Images
Our Advantages
1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.
Appliation
1)Poultry-livestock heating: widely used in poultry heating, farrowing, nursery , greenhouse etc.
2)Heating of sports hall, church, patio, garage, exhibition hall, industrial building, workshop, warehouse etc.,
