I Beam Track Overhead Conveyor Chain System X348 Trolley Spray Painting Line
Product Details:
| Place of Origin: | China |
| Brand Name: | N/M |
| Model Number: | X458 |
Payment & Shipping Terms:
| Minimum Order Quantity: | According to requirements |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, pallet |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000m/month |
|
Detail Information |
|||
| Carriage Allowable Load: | 250KG | Working Temperature: | ＜300℃ |
|---|---|---|---|
| Chain Pitch: | 153.2mm | Chain's Catastrophic Pull Force: | 220KN |
| Track: | For I Beam 12 Or I Beam 14 Track | Minimum Horizontal Radius Of Gyration: | R317 |
| Minimum Vertical Bending Radius: | R2000 | Application: | Powder Coating Line, Spray Painting Line Etc |
| High Light: | Track Overhead Conveyor Chain,Overhead Conveyor Chain X348,I Beam Track Conveyor System |
||
Product Description
Spray Painting Line I Beam Track Overhead Conveyor Chain Trolley X348
Company
Since 2005, we Chongqing Haodong Technology Co., Ltd have been specialized in providing heating equipment for industrial ovens, and at the same time, we have been engaged in spraying oven engineering industry in China. Today, we have the ability to provide and build the entire industrial line, and now we can provide one-stop industrial assembly line equipment. If you have a demand for this, you are welcome to have more discussions with us.
Our service
We have professional more than 20 years experienced engineers to serve for you, provide your drawing or design, then we will provide the best suggestions, send inquiry for more details!

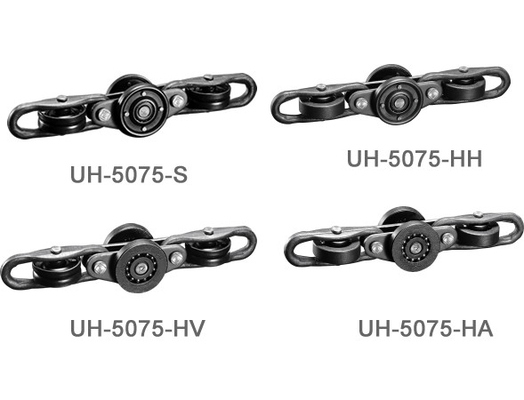

We also have other powder coating line equipments for your choice, such as: 5 ton overhead conveyor chain system(UH-5075-S, UH-5075-HA), ground line, manual line, industrial oven heating equipments etc.
Introduction
This model has a good space conveyor, wide scope, the work piece can continuous operation at high temperature bake, harmful gas area, spray booth.
The machine has low power consumption, low maintenance costs, durability, low noise, easy to operate.
Specification
|
Chain |
X348 |
X458 |
X678 |
|
Suspension Spacing (mm) |
T=76.2 | T=100 | T=160 |
|
Chain's catastrophic pull force
|
110KN | 220KN | 400KN |
|
Carriage Limit load |
300KG | 500KG | 800KG |
|
Carriage Allowable load
|
150KG | 250KG | 500KG |
Drawing of X348 chain

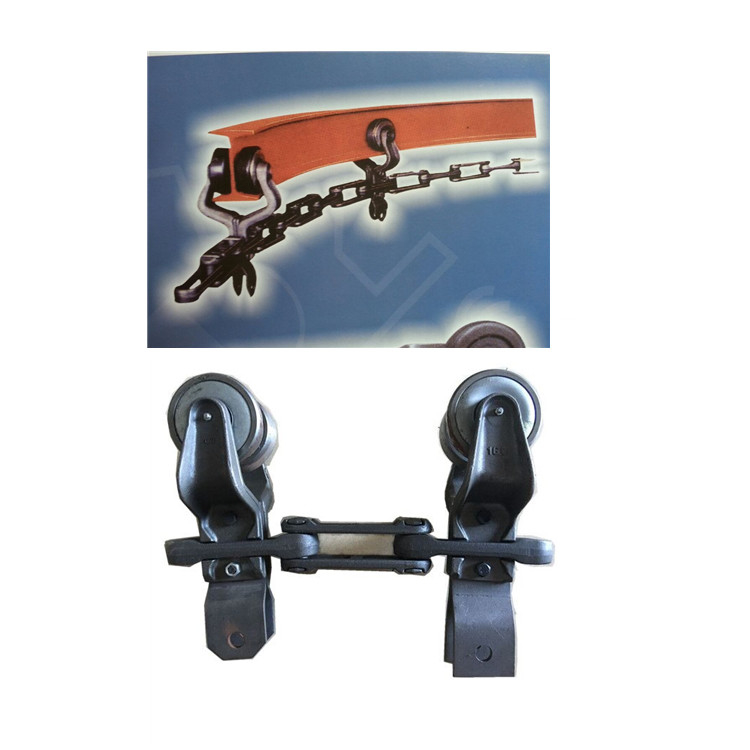

Drawing of X348 trolley(for I beam 8 track)
Other related parts

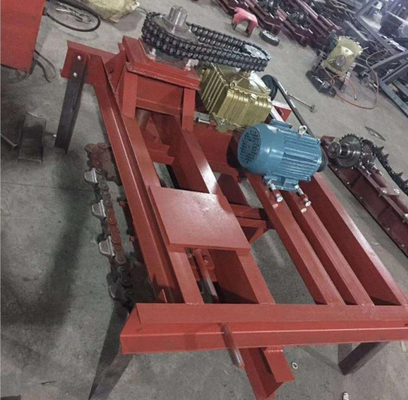

Driver unit(3KW, 4KW, 5.5KW etc)
Horizontal curved track(the diameter of this part can be customized to meet your requirements)
Tension device(the diameter of this part can be customized to meet your requirements)
What's your advantages?
1.Low noise
2.Less power consumption
3.Stable operate performance
4.User-friendly and safe use
5.Excellent extensity
6.Make full use of space
7.Large angle bending space
8.High mechanization & automatization
9.Close -up continual conveying equipment
10.Work perfectly together with the ground facilities
11.Make any turns on both horizontal plane and vertical planes
