Single Track Industrial Conveyor Chain Enclosed Overhead Iron Carbon Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | N/M |
| Model Number: | UH-5075-S |
Payment & Shipping Terms:
| Minimum Order Quantity: | according to requirements |
|---|---|
| Price: | Negotiable |
| Packaging Details: | wooden box, wooden pallet |
| Delivery Time: | 5-8 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000m/month |
|
Detail Information |
|||
| Tensile Strength: | 3000kgf | Chain's Catastrophic Pull Force: | 5500kgf |
|---|---|---|---|
| Working Temperature ( ≤ °C): | ＜300℃ | Min Hanging Distance Distance: | 150mm |
| Run Speed: | 0-12min/min | Material: | Iron, Carbon Steel |
| Single-span Weight: | 30-50kg | Usage: | Workshop Continual Conveying, Industrial Powder Coating Line, Ground Line Etc |
| High Light: | Iron Industrial Conveyor Chain,Enclosed Industrial Conveyor Chain |
||
Product Description

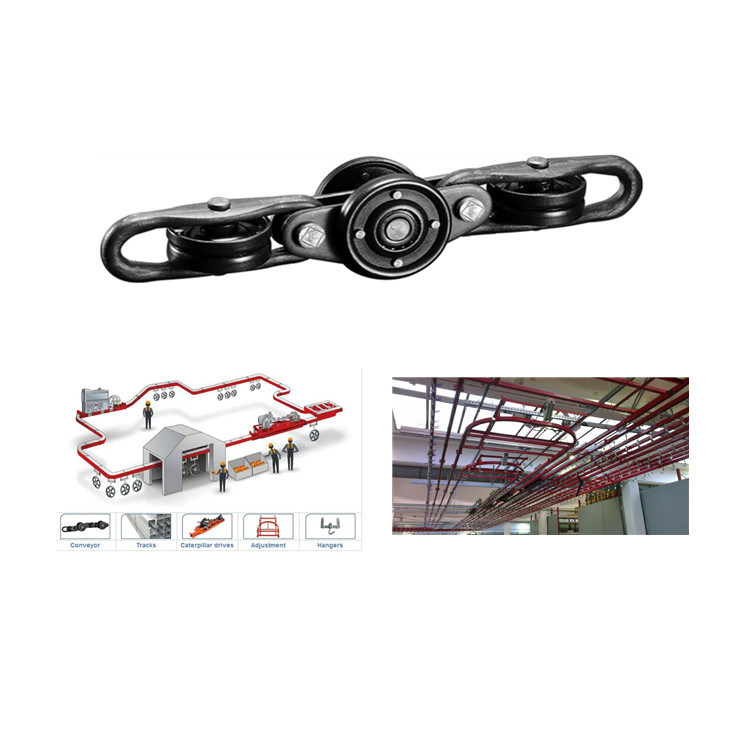

Enclosed Single Track Overhead Conveyor Chain For Powder Coating Oven Line
Description
UH-5075 5 ton chain: it is the most widely used suspension chain at present. It is simple in structure, light in volume, flexible in steering, easy to install, and has the characteristics of small pitch. It can use horizontal bending rails with smaller diameter. The turning space is small, making the design and planning of the assembly line more compact, and the use of the workshop more reasonable. It has been widely used in various industries, especially bicycle factories, furniture factories, hardware processing plants Paint baking factory, etc.

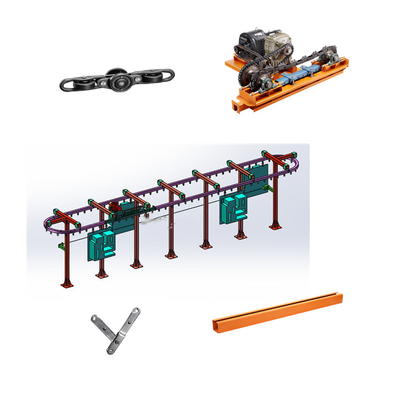

We also have all spare parts for whole system, such as driver device, take-up deivc/tensioner, straight track, curve track, up-down track/vertical track, check track, flange, oil sprayer, electric cabinet.
According to customers' drawing, we can calculate all need parts for whole system.
Specification
|

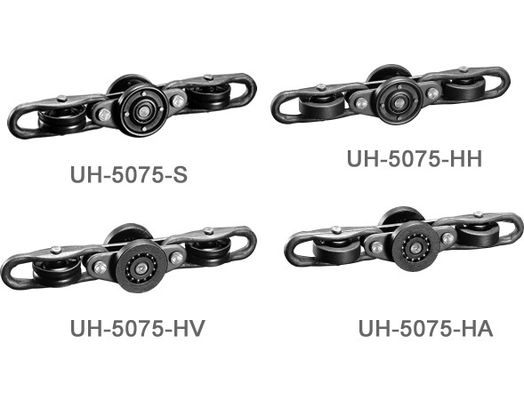

MODEL ITEM |
UH-5075-S Standard chain |
UH-5075-HH Heavy-duty chain |
UH-5075-HV Heavy-duty chain |
UH-5075-HA Heavy-duty chain |
|
Suspension Spacing (mm) |
150+(150× N) | 150+(150 × N) | 150+(150 × N) | 150+(150 × N) |
|
Chain's Weight (kg/m) |
4.2 | 4.58 | 4.83 | 5.3 |
|
Single-span Weight (≤kg) |
35 | 40 | 45 | 50 |
|
Chain's Allowed Pull Force (≤kgf) |
3000 | 3000 | 3000 | 3000 |
|
Chain's Catastrophic Pull Force (≥kgf) |
5500 | 5500 | 5500 | 5500 |
|
Working temperature (≤°C) |
250 | 300 | 300 | 400 |
| Applicable Equipment | General conditions |
Large bending; High temperature; |
High temperature; Heavy work piece; Frequently lifted; |
High temperature; Heavy work piece; Complicated route; |
| Material | 16# Medium-carbon steel, Steel A3 | |||
| Remark: The above technical data is for our usual hanging type conveyors: UH-5S, UH-5HH, VH-5HA type. We can customize design and manufacture the products based customers particular requirements. | ||||
Why choose us?
1.Low noise
2.Less power consumption
3.Stable operate performance
4.User-friendly and safe use
5.Excellent extensity
6.Make full use of space
7.Large angle bending space
8.High mechanization & automatization
9.Close -up continual conveying equipment
10.Work perfectly together with the ground facilities
11.Make any turns on both horizontal plane and vertical planes

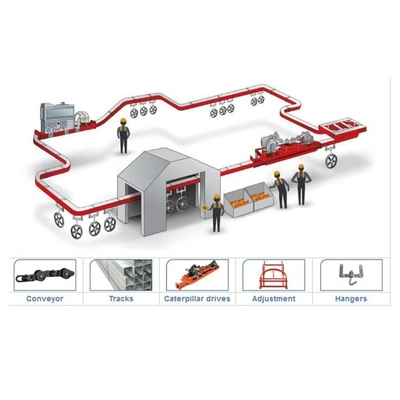

Other related items

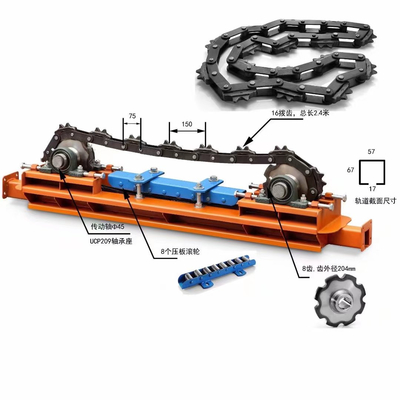

Caterpillar Driver Device
Limit-load Caterpillar Driver Device, Caterpillar Driver Device, Sprocket Driver; from 1.5KW-4KW for your choice;
Track
Straight track, Bush track, Vertical track, Horizontal Track
Take up Device
Heavy Bob type take up device
Hanger:Cross type disk hanger, sprocket wheel hanger, Y type hanger, Cross type hanger, electroplating hanger,
U type Hanger,Bearing hanger
Other Accessories: hanger turner, track flange, track install hanger,check track, Manual /automatic oil feeding cup
Automatic oil sprayer
Remark: The above technical data is for our usual hanging type conveyors. We can customize design and manufacture the products based customers particular requirements.
Application
Surface treatment, powder coating, paint spraying, drying, oven, cooling room and plaing the finished products off the line, furniture factories, bicycle plants,electronic products factory, hardware factory.
Packaging
usually packed into standard wooden boxes, wooden pallet, or loading container.
