THD2608 Poultry Gas Brooder Heater NG LPG Infrared Heating Element
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD2608 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | shockproof carton packing |
| Delivery Time: | 7-30 work days |
| Payment Terms: | L/C, T/T, D/A, D/P, Western Union |
| Supply Ability: | 5000 sets per month |
|
Detail Information |
|||
| Product Name: | Gas Heater THD2608 | Material: | Aluminized Steel |
|---|---|---|---|
| Dimension: | 32*27*13cm | Nozzle: | Brass |
| Burning Plate: | Ceramic Plates With Catalyst | Heat Output: | 2116Kcal/h |
| Heat Transfer Rate: | Above 95% | Working Pressure: | 2800~5000pa |
| Plate Lifespan: | Above 11000hrs | Advantage: | Save Above 20% Energy |
| High Light: | THD2608 Poultry Gas Brooder Heater,NG Poultry Gas Brooder Heater,LPG Infrared Heating Element |
||
Product Description
Gas Saving Poultry Brooder Heater THD2608 NG LPG Infrared Heating
Product Description
Haodong Infrared Burner covers a process rare earth as catalyst, make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than common ceramic burner.
Gas Infrared Burner Technical Parameters
| SN | Items | Technical Parameters |
| 1 | Kinds of Gas | NG/LPG/Oil Field Gas/Artificial Gas |
| 2 | Perfect Combustion Temperature | ≤380℃ |
| 3 | Heat Source Temperature | 850℃ |
| 4 | Heating-up Temperature Range | 35℃-500℃ |
| 5 | Wavelength Range | 4 um -15 um |
| 6 | Working Pressure | 2000pa(NG)/2800pa(LPG)~~5000pa |
| 7 | Life time | Above 11000hrs |
| 8 | Waste Gas Emission | CO≤80ppm;NOx≤10ppm;CHx≤50ppm |
| 9 | Conversion Rate | Above 90% |
Gas Poultry and Greenhouse Infrared Burner Main Material:
2.Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3.Nozzle: brass
4.Up cover: Aluminized steel sheet

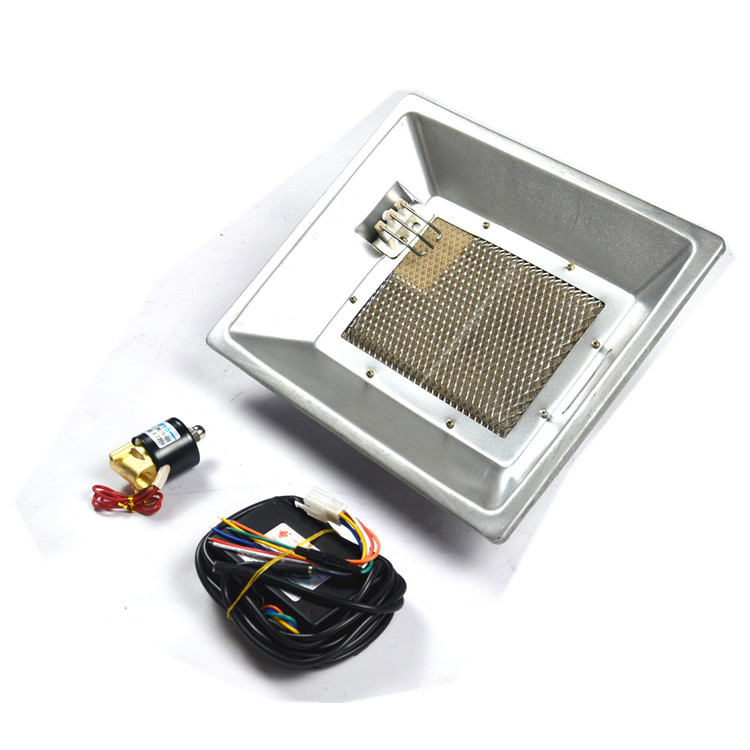

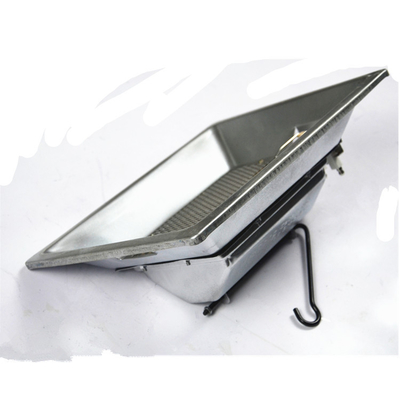

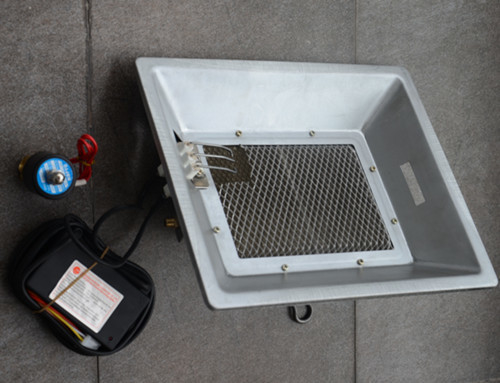

Detail Images
Our Advantages
1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.
Company Profile
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
