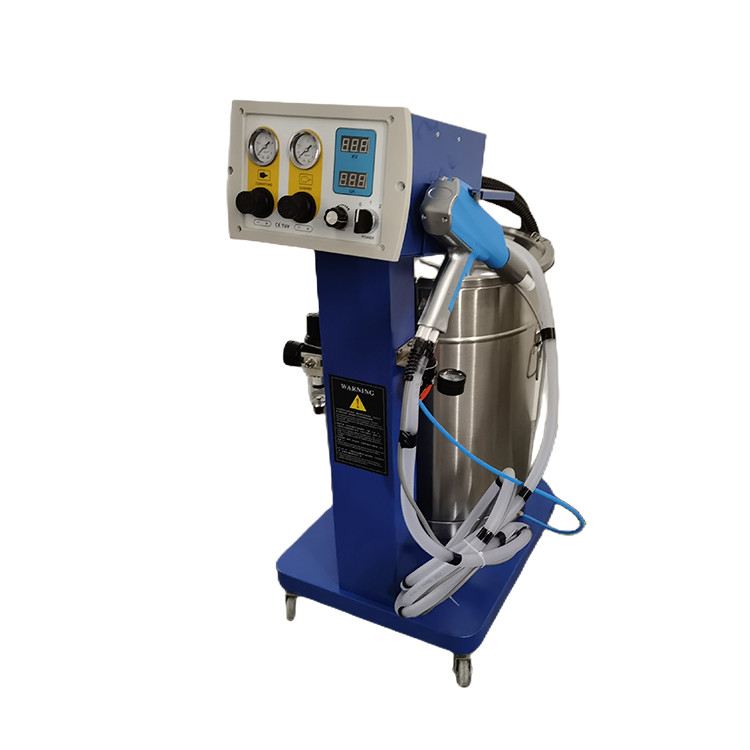

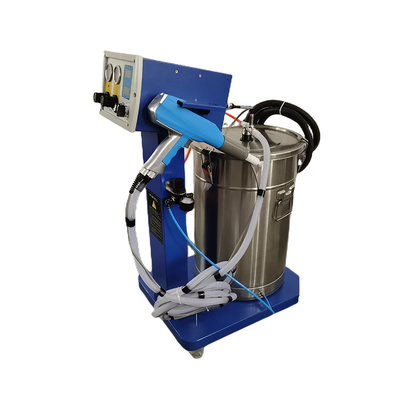

High Voltage Powder Spraying Machine 50W Manual Operation For Substrate Surface
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | THD |
| Model Number: | THD602 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard carton |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, L/C, Western Union, PayPal, Credit card |
|
Detail Information |
|||
| Type: | Electrostatic Powder Coating Machine | Usage: | Powder Coating On Substrate Surface |
|---|---|---|---|
| Power: | 50W | Voltage: | 220V/110V |
| Dimension(L*W*H): | 47*44*62cm | Operation Way: | Manual Powder Coating Equipment |
| High Light: | High Voltage 50W Powder Spraying Machine,Powder Spraying Machine For Substrate Surface,220V Powder Spraying Equipment |
||
Product Description
Our Company
With more than 18 years experience, Chongqing Haodong Technology Co.,Ltd, specialized in developing and producing infrared catalytic ceramic gas burner&heater, and achieved very good energy saving
Now we have intensified our efforts to develop and introduce a series of new products, including electrostatic overhead conveyor chain, spray machines and fans etc, we would like to be your one-stop shop of powder
coating and spraying equipment.
Assembly diagram
Specification
| Input Voltage | 210V/240V |
| Frequency | 50Hz |
| Power | 50W |
| Output Voltage | 21VDC |
| Output Current | 0-200uA |
| Maximum output voltage | 0-100KV |
| Water vapor content of compressed air | 1.3g/m³ |
| Oil vapor content of compressed air | <0.01g/m³ |
| Input air pressure | 0-0.6MPa |
| Output air pressure | 0-0.5MPa |
| Powder hopper air pressure | Up to powder fluidization |
| Electromagnetic valve voltage | 24VDC |
| Residual oil in compressed air | max0.01g |
| Residual water in compressed air | max1.3gNm (dew point 7℃) |
Commissioning
After long transportation, the machine might bear strong shock, so before using the machine, must check machine structure is fasten or not, all parts are still there, according to the assembly drawing in operation manual, to connect the whole machine, then check the power supply meets the requirement of the machine or not, check the special ground wire is correct or not, then can power on for commissioning.
Commissioning method: connect power supply plug, ground connecting well, open the machine power switch, power supply light up, then press gun trigger switch, then twist high voltage adjustment button at clockwise direction. If voltage increase, it means high voltage electrostatic is generated, machine starts working.
Use direction
Add powder into hopper, less than 2/3 is the best. Then adjust hopper fluidized air volume, make the powder inside hopper fluidized and loose, then take the gun by hand, press gun trigger switch, then take out and twist powder volume adjusting 2-4 air volume, atomized adjusting switch 0.01-0.25 air volume, adjust to the requested powder volume, then come into service.
Spare parts
