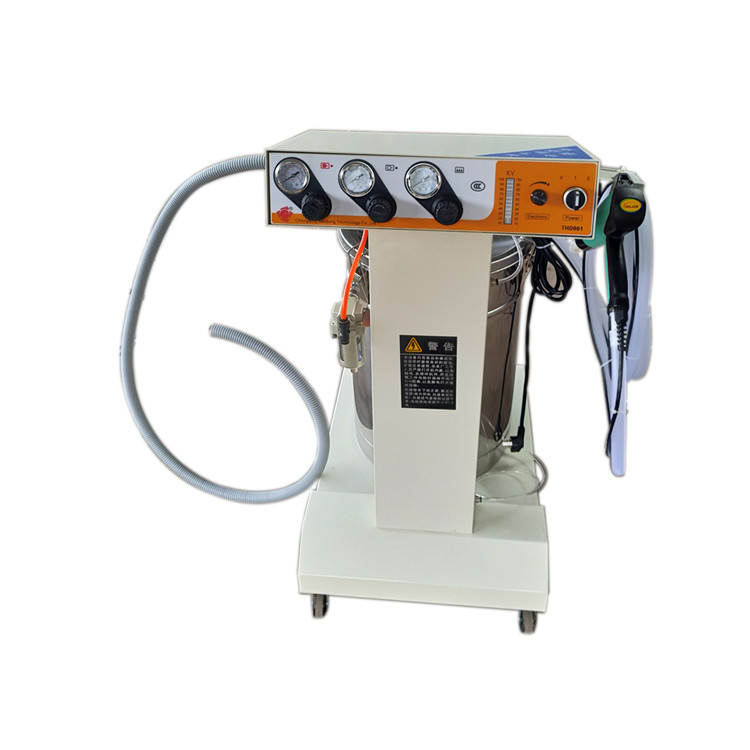

High Efficiency Powder Spraying Machine Manual Operation For Substrate Surface
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | N/M |
| Model Number: | THD001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | standard carton |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, L/C, Western Union, PayPal, Credit card |
|
Detail Information |
|||
| Type: | Electrostatic Powder Coating Machine | Usage: | Powder Coating On Substrate Surface |
|---|---|---|---|
| Power: | 50W | Voltage: | 220V/110V |
| Dimension(L*W*H): | 64*46*98cm | Operation Way: | Manual Powder Coating Equipment |
| High Light: | High Efficiency Powder Spraying Machine,Manual Operation Powder Spraying Machine |
||
Product Description
Manual Operation High Efficiency Powder Spraying Machine With Power Spray Gun
Our Company
With more than 10 years experience, ChongQing HaoDong Technology Co.,Ltd, specialized in developing and producing infrared catalytic ceramic gas burner&heater, and achieved very good energy saving
Now we have intensified our efforts to develop and introduce a series of new products, including electrostatic overhead conveyor chain, spray machines and fans etc, we would like to be your one-stop shop of powder
coating and spraying equipment.
Product Description
The spray equipment uses an automatic current feedback circuit and adds a pulse control circuit. The gas control part adopts two-stage gas source filtration, voltage regulation and air pressure adjustment, all designed as preset adjustments. The powder output is more uniform, the atomization is better, and the dead angle is much better.

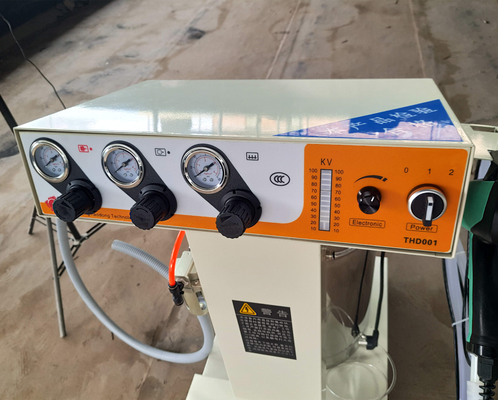

The main technology adopts advanced technologies from Germany and Switzerland, and combines China's national conditions to improve and innovate in reliability. Use the digital panel forwarding key. It can change the pulse and normal function, and voltage current display function. With a very high powdering rate and the best coating quality, it is the advanced spraying equipment in China.
Technical Parameters
| Electronic controller | Pneumatic controller | Powder spray gun |
| Input voltage:AC220V/50HZ | Solenoid valve control voltage:DC24V |
Input voltage: 0-12VAC |
| Input electric power:50VA |
Input air pressure: 0.7 lllPa |
Input electric power: about 1.8KHZ |
|
Output voltage: 0-100VAC |
Output air pressure: 0-0.6 lllPa |
Input current: up to 0.8A |
|
Output frequency: 40KHZ |
Air requirements: water content less than 1g/m³, Oil content less than0.01g/m³ |
Output voltage: 0-100KVDC |
|
Output voltage: 30KV-185μA pulse 95μA 100KV-200μA pulse 100μA |
spray gun weight: about 450g |
|
|
Working current: llla x 0.7A |
Safety standard: IP54 |
|
|
Pulse current: 10-30Hz square wave |
Powder output: llla x 500g/min |
|
| Polarity: negative |
Advantages
1. The workpiece can be painted at room temperature
2. High powder utilization rate, up to 95%
3. The coating film is thin and uniform, smooth and without sag
4. On the sharp edges and rough surface of the workpiece, a continuous and smooth coating can be formed.
5. Easy to realize industrialized line production
6. It is more environmentally friendly than spray-paint, but the fireproof and explosion-proof grades are slightly lower.
7. The social and economic benefits are significant, the cost is 20~30% lower than the solvent process, and the batch production cycle is shortened by 20 days.
