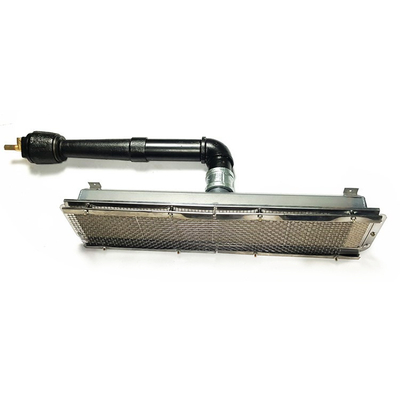

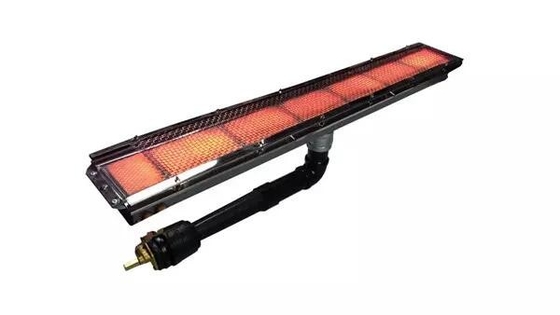

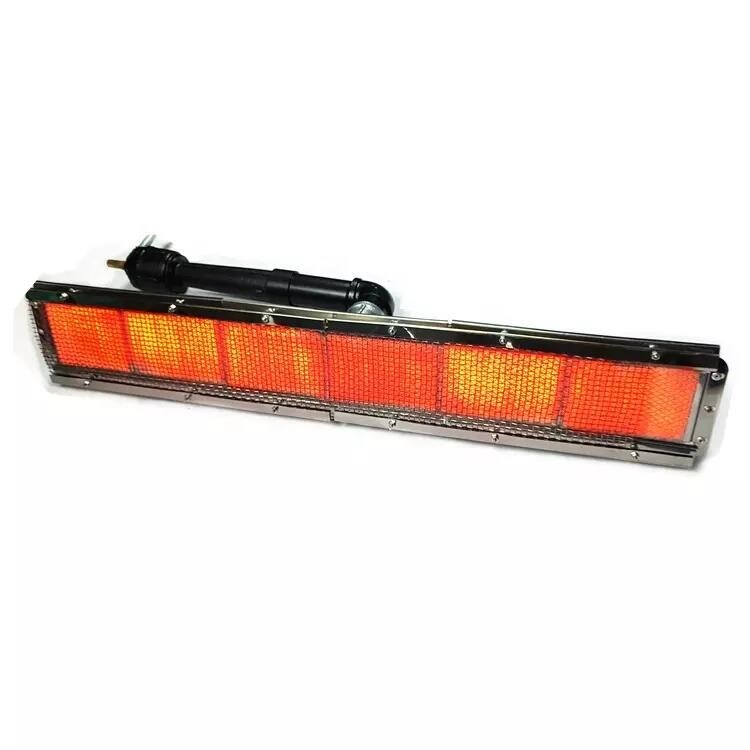

LPG NG Propane Catalytic Gas Burner IR Radiant For Industrial Oven Furnace
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
| Model Number: | HD162 HD262 HD242 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 2-7 days |
| Supply Ability: | 1000pcs each week |
|
Detail Information |
|||
| Fuel: | Gas | Material: | Metal And Ceramic |
|---|---|---|---|
| Use: | Oven | Gas: | LPG NG Propane Butane |
| Gurantee: | 1 Year | Catalytic: | Yes |
| High Light: | IR Radiant Catalytic Gas Burner,NG Catalytic Gas Burner,LPG Gas Burner For Furnace |
||
Product Description
IR Radiant Catalytic Gas Burner Industrial Oven Furnace LPG NG Propane
usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn.
Most Equipment is mainly by convection to heat air first and then, it is air second heating way. the heated air transfer to object. Heat loss is big. But, differently, Infrared catalytic burner heat object directly by radiation and transfer rate will be much higher, usually the heat converstion is high to 95%.
IR Radiant Catalytic Gas Burner Industrial Oven Furnace LPG NG Propane Catalogue
| Model | Dimension | N.W | Main material | Heat output | Gas consumption | ||
| KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||||
| FY41 | 280*80*70 (348*84*90) | 3.1 | cast iron | 2.1 | 1800 | 0.165 | 0.156 |
| HD61 | 423*80*94 | 3.8 | cast iron | 2.4 | 2030 | 0.18 | 0.17 |
| HD81 | 555*80*115 | 5.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD82 | 219*164*108 | 4.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD101 | 690*80*115 | 6.9 | cast iron | 3.9 | 3380 | 0.3 | 0.28 |
| HD162 | 570*130*175 | 6 | Galvanized steel | 6.3 | 5400 | 0.49 | 0.45 |
| HD242 | 840*130*175 | 7 | Galvanized steel | 9.4 | 8120 | 0.75 | 0.68 |
| HD262 | 930*130*175 | 8 | Galvanized steel | 10.9 | 9360 | 0.8 | 0.64 |
IR Radiant Catalytic Gas Burner Industrial Oven Furnace LPG NG Propane advantage
Our infrared ceramic burner be widely use in pianting
- 1. Energy saving. Compare with tradition air heating, the infrared heat converting is more than 95%, it will save product cost.
- 2. Fast heating. The catalytic gas burner is infrared direct heating, it heating fast. The burner surface temperature high to 850 º.
- 3. No need blower. Also no need to build seperate combustion chamber for the infrared burner.
- 4. Each burner is independ one. It will not indlued whole project if one burner have problems.
- 5. All burner accessories could be suppled.
- 6. Low emission. CO≤80ppm;NOx≤10ppm;CHx≤50ppm
Infrared Ceramic Heater Catalytic Gas Burner Catalogue advantage
Our catalytic ceramic burner be widely use in pianting Industry (Paint heating, powder coating,preheating, pwder curing ect) , food industry (egg roll, cake baking, coffee , coco, grain ,nuts heating roasting, tea leavies etc)
Fiber industry(Carpet ldryer, dyeing dryer, rinting dryer, textile dryer,lanundry paper heating, industrial clothes dryer,, Galss and ceramic industry, latex industry(latex, rubber, dipping line gloves etc).
