Infrared NG LPG Propane Catalytic Gas Burner For Disposable Glove Oven
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD162 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | USD50-96/pcs |
| Packaging Details: | Standard carton; Outer carton size: 61*25*29cm; Inner carton size: 58*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Gas Type: | LPG, Natural Gas, Butane, Propane | Dimension: | 570*130*175mm |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving, Conveyor Rate Above 95% | Technology: | Covered With Rare Earth Catalyst On Combustion Plate |
| Warranty: | 1 Year | Application: | Latex Glove, Nitrile, Rubber Glove Thermoforming Line |
| Service: | Technical Support | Advantage 2: | Fast Heating, High Efficiency, Low Maintaince Etc |
| High Light: | LPG Propane Catalytic Gas Burner,Infrared NG LPG Propane Gas Burner,Disposable Glove Oven Propane Gas Burner |
||
Product Description
Gas Energy Saving Infrared Catalytic Gas Burner For Disposable Glove Oven
Company profile
Established in 2005, Chongqing Haodong Tech Co., Ltd is specialized in Infrared Catalytic Gas Burner, baby animal heater and BBQ burner, widely applied paint/biscuit baking/animal heating/outdoor bbq etc.
High quality ceramic plaque with rare-earth catalyst, successfully makes our burner heat conversion rate above 95% and 20% gas power be saved than ordinary gas burner, get good reputation from domestic and abroad customers.
Simple & Economic, Energy-save & Environmental friendly burner is looking forward your cooperation.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
Specifications
More models
| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| HD82 | 219*164*108 | 4.8 | NG/LPG | 3.1 | 2700 | 0.24 | 0.24 |
| HD101 | 690*80*115 | 6.9 | NG/LPG | 3.9 | 3380 | 0.3 | 0.29 |
| HD162 | 570*130*175 |
5.9
|
NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD410 | 410*175*220 | 8 | NG/LPG | 6.3 | 5400 | 0.49 | 0.47 |
| HD242 | 840*130*175 |
7.5
|
NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD600 | 600*175*220 | 11.7 | NG/LPG | 9.4 | 8120 | 0.75 | 0.71 |
| HD262 | 930*130*175 |
7.8
|
NG/LPG | 10.9 | 9360 | 0.8 |
0.82
|
| Remark: width keep the same, any reasonable length ≤ 930mm could be customized | |||||||

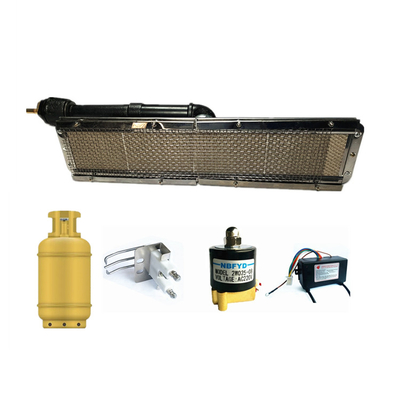

System for burner with ignition parts
Advantages
♦Energy efficient, as high as 20% energy can be saved every year
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
Application

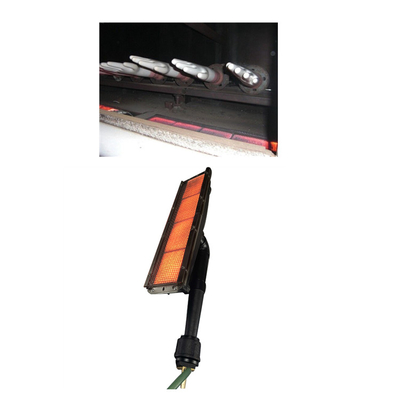

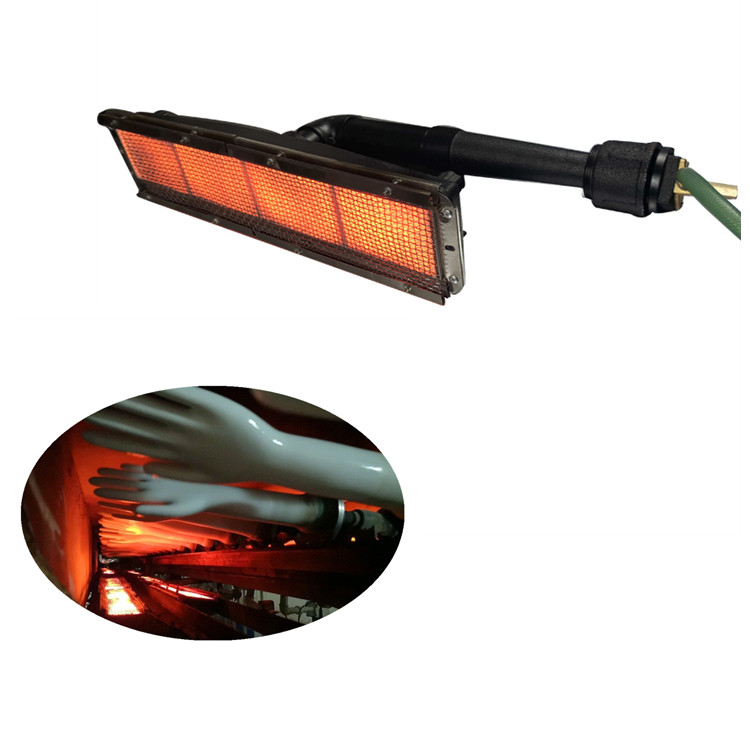

1. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;
2. Other industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;
3. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;
