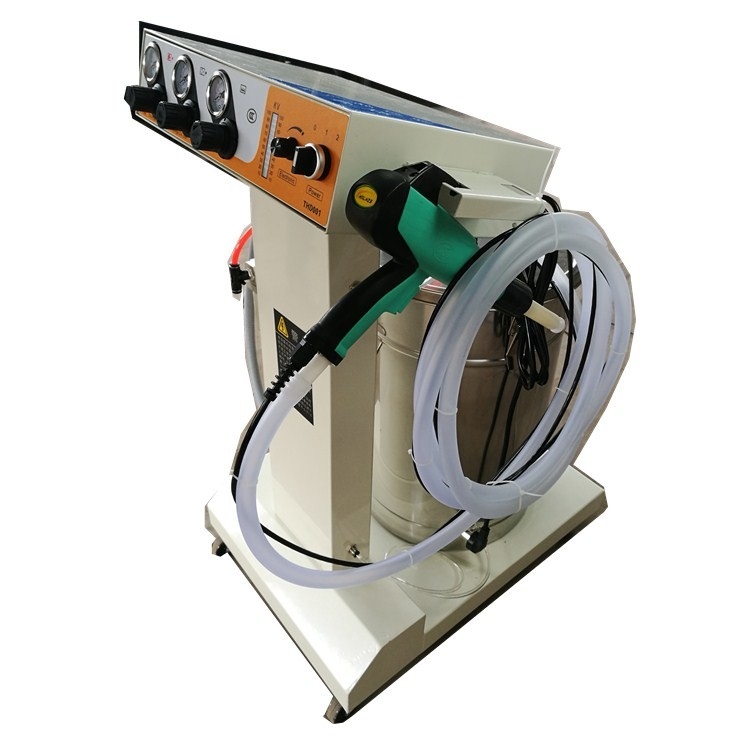

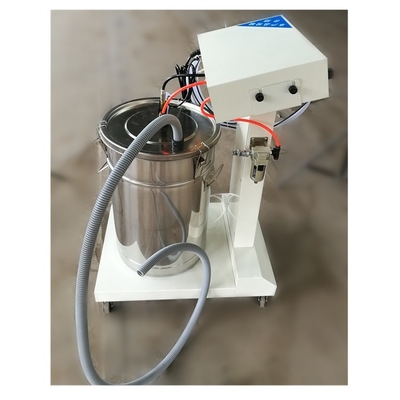

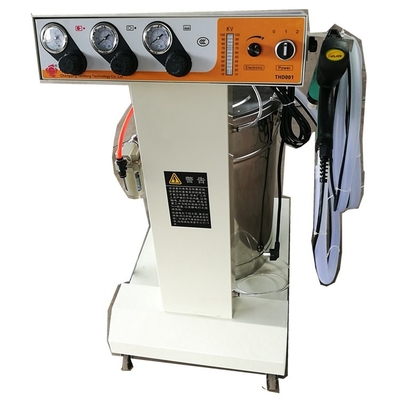

34W Powder Spraying Machine Electrostatic Manual Powder Coating Machine
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | THD001 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5~8 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set/week |
|
Detail Information |
|||
| Type: | Electrostatic Painting Machine | Voltage: | 110V/220V |
|---|---|---|---|
| Power: | 34W | Size: | 98*64*46mm |
| Usage: | Spray Painting Line, Surface Treatment, Spraying | Oil Vapor Content Of Compressed Air: | <0.01g/m3 |
| Water Vapor Content Of Compressed Air: | 1.3g/m3 | Out Current: | 1A |
| Maximum Output Voltage: | 0-100KV | Product Name: | Manual Powder Spraying Machine For Powder Coating Line Process |
| High Light: | 34W Powder Spraying Machine,Manual Powder Spraying Machine,Electrostatic Manual Powder Coating Machine |
||
Product Description
Product Name: Manual Powder Spraying Machine For Powder Coating Line Process

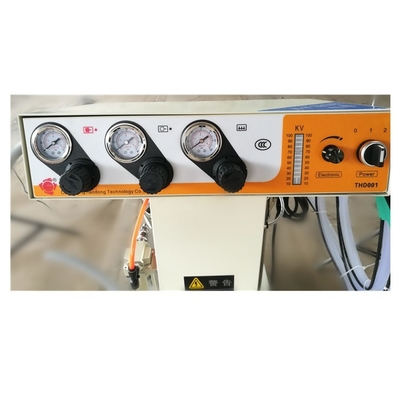

The spray equipment uses an automatic current feedback circuit and adds a pulse control circuit. The gas control part adopts two-stage gas source filtration, voltage regulation and air pressure adjustment, all designed as preset adjustments. The powder output is more uniform, the atomization is better.
The Technical Parameters
Manual Powder Spraying Machine For Powder Coating Line Process
|
Input Voltage |
AC220V±10% |
|
Frequency |
50Hz |
|
Input Power |
34W |
|
Output Voltage |
12VDC |
|
Out Current |
1A |
|
Maximum output voltage |
0-100KV |
|
Water vapor content of compressed air |
1.3g/m³ |
|
Oil vapor content of compressed air |
<0.01g/m³ |
The Technical Parameters
Manual Powder Spraying Machine For Powder Coating Line Process
|
Input Voltage |
12V |
|
Input current |
1A |
|
Output Voltage |
0-80KV |
|
Maximum powder injection |
500g/min |
|
Polarity |
negative (-) |
|
Gun weight |
500g |
The Features and Advantages of Manual Powder Spraying Machine For Powder Coating Line Process:
1. The workpiece can be painted at room temperature
2. High powder utilization rate, up to 95%
3. The coating film is thin and uniform, smooth and without sag
4. On the sharp edges and rough surface of the workpiece, a continuous and smooth coating can be formed.
5. Easy to realize industrialized line production
6. It is more environmentally friendly than spray-paint, but the fireproof and explosion-proof grades are slightly lower.
7. The social and economic benefits are significant, the cost is 20~30% lower than the solvent process, and the batch production cycle is shortened by 20 days.
