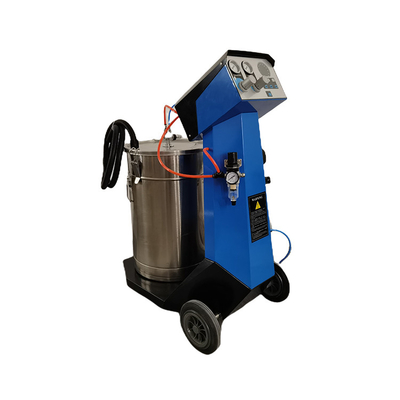

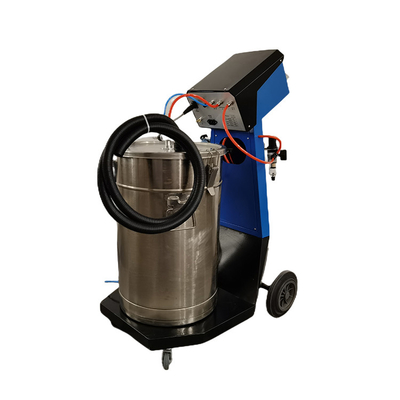

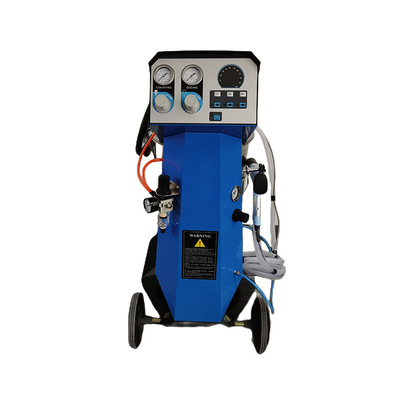

Auto Powder Coating Spray Machine 110V 220V 230V 240V Electrostatic Spray Gun
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | THD802 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1set |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5~8 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 100set/week |
|
Detail Information |
|||
| Type: | Electrostatic Painting Spray Machine | Voltage: | 110V/220V/230V/240V |
|---|---|---|---|
| Power: | 34W | Size: | 70*47.5*59cm |
| Usage: | Spray Painting Line, Surface Treatment, Spraying | Oil Vapor Content Of Compressed Air: | <0.01g/m3 |
| Water Vapor Content Of Compressed Air: | 1.3g/m3 | Out Current: | 1A |
| Maximum Output Voltage: | 0-100KV | Product Name: | China Automatic Powder Spraying Machine Electrostatic Spray Painting Machine |
| Highlight: | Auto Powder Coating Spray Machine,110V Powder Coating Spray Machine,240V Electrostatic Spray Gun |
||
Product Description
Product Name: China Automatic Powder Spraying Machine Electrostatic Spray Painting Machine
The spray equipment uses an automatic current feedback circuit and adds a pulse control circuit. The gas control part adopts two-stage gas source filtration, voltage regulation and air pressure adjustment, all designed as preset adjustments. The powder output is more uniform, the atomization is better, and the dead angle is much better.
The Technical Parameters of China Automatic Powder Spraying Machine Electrostatic Spray Painting Machine:
| Input Voltage | AC220V±10% |
| Frequency | 50Hz |
| Input Power | 34W |
| Output Voltage | 12VDC |
| Out Current | 1A |
| Maximum output voltage | 0-100KV |
| Water vapor content of compressed air | 1.3g/m³ |
| Oil vapor content of compressed air | <0.01g/m³ |
The Technical Parameters of China Automatic Powder Spraying Machine Electrostatic Spray Painting Machine:
| Input Voltage | 12V |
| Input current | 1A |
| Output Voltage | 0-80KV |
| Maximum powder injection | 500g/min |
| Polarity | negative (-) |
| Gun weight | 500g |
The Features and Advantages of China Automatic Powder Spraying Machine Electrostatic Spray Painting Machine:
1. The workpiece can be painted at room temperature
2. High powder utilization rate, up to 95%
3. The coating film is thin and uniform, smooth and without sag
4. On the sharp edges and rough surface of the workpiece, a continuous and smooth coating can be formed.
5. Easy to realize industrialized line production
6. It is more environmentally friendly than spray-paint, but the fireproof and explosion-proof grades are slightly lower.
7. The social and economic benefits are significant, the cost is 20~30% lower than the solvent process, and the batch production cycle is shortened by 20 days.
