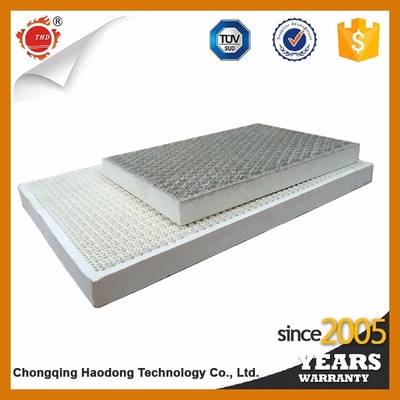

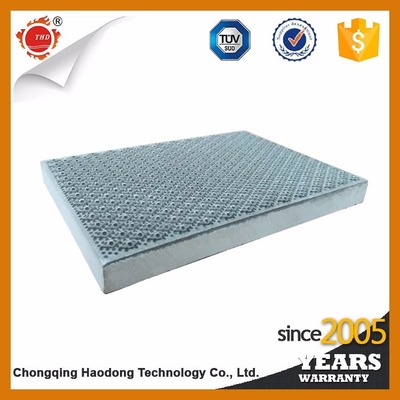

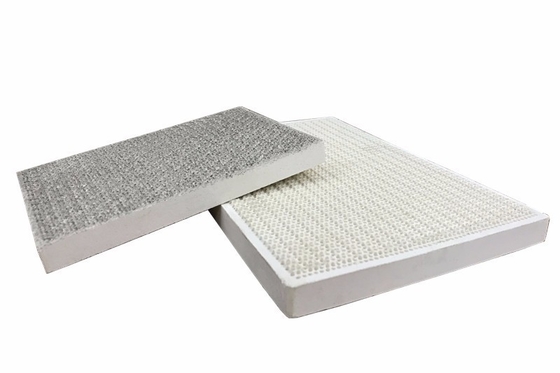

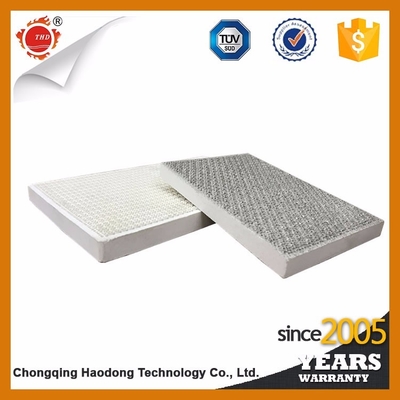

Infrared Cordierite Porous Ceramic Plate Honeycomb Burner Plate For Gas Stove
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | Customized |
Payment & Shipping Terms:
| Minimum Order Quantity: | 50piece |
|---|---|
| Price: | to be negotiable |
| Packaging Details: | box packing |
| Delivery Time: | 5-8 working day |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000piece/piece per month |
|
Detail Information |
|||
| Brand Name: | THD | Type: | Ceramic Plate |
|---|---|---|---|
| Material: | Alumina Ceramic | Usage: | Infrared Gas Burner,infrared Gas Heater |
| Application: | Used For Industrial Ceramic | Size: | Customized |
| High Light: | Cordierite Porous Ceramic Plate,Infrared Porous Ceramic Plate,Honeycomb Burner Plate For Gas Stove |
||
Product Description
Infrared Cordierite Honeycomb Porous Ceramic Heater Plate For Gas Burner
Production Introduction
This infrared ceramic plate is an alternative product for noble metal catalyst .It use rare earth as catalyst, which is with relatively low cost, higher activity than noble metal. What’s more with rare earth catalyst, the surface burning temperature is more stable kept in 900℃than noble metal, like platinum. The burning occurs on the covering catalyst and radiate infrared ray, energy transfer can reach 95%. But the common infrared burner, it radiates by heating the ceramic, transfer rate only 80~85%. So, infrared catalytic ceramic plate will save much energy than other common infrared plate.
Production Specification
|
Item
|
Index |
|
Material |
Cordierite |
|
Specific gravity |
0.9-1.10kg/cm3 |
|
Water absorption |
50.4% |
|
Open porosity
|
61% |
|
Temperature softening |
＞1280℃ |
|
Cooking surface temperature |
1000-1200 |
|
COx Release |
≤80ppm |
|
NOx Release |
≤10ppm |
Advantage
Rare-earth catalyst technology of Chongqing Haodong company is the first and only one in China, it's used in infrared gas burner & gas heater and could save 10~20% energy than non-catalytic infrared heater. Besides, 30~50% production cost could be saved than electric tube infrared heater.
Application
1, The catalyst substrate, Stuffing material for chemical industry columns and Contact combustion;
2, Nox purification system in the smoke of the thermal power plant;
3, The harmful gas purification system in rubbish burning;
4, Poison gas purification system in chemical and mining industries. The slag filter for casting production in the metallurgical industry.
Packing
1. Inner packaging: plates and plates with foam plates to divide.
2.Outer packaging: carton with fumigation-free pallet, or carton with fumigation-free wooden case.
