Infrared Catalytic Ceramic Heater Plates Honeycomb Customized For BBQ Burner
Product Details:
| Place of Origin: | China |
| Brand Name: | N/M |
| Model Number: | N/M |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | bubble bags, packed into wooden box |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Customize Service: | ODM, Customize According To Design Is Available | Dimension: | 135*200*13.5mm |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving Than Non-catalyst Infrared Gas Burner | Advantage 2: | Conveyor Rate: Above 95% |
| Technology: | Covered With Rare Earth Catalyst On Combustion Plate | Application: | Use For BBQ Burner, BBQ Stove, Infrared Gas Heater Etc |
| High Light: | Catalytic Ceramic Heater Plates,Customized Ceramic Heater Plates,Honeycomb Infrared Ceramic Plate |
||
Product Description

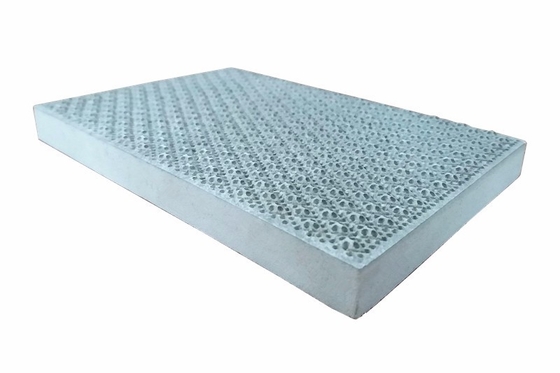

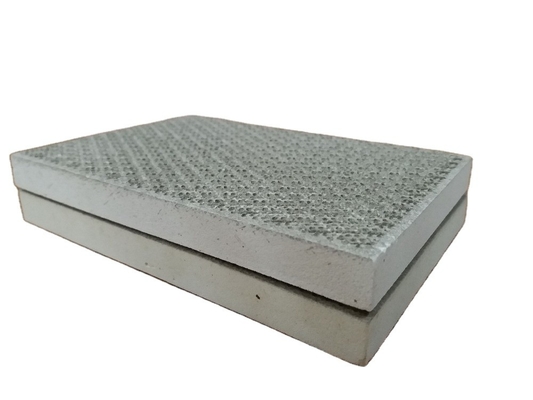

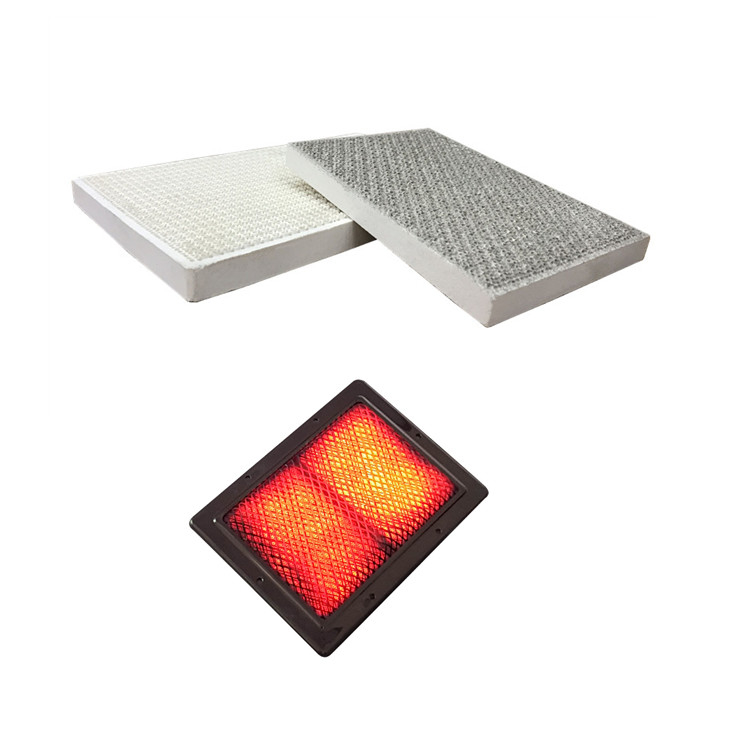

Infrared Catalytic Honeycomb Ceramic Heater Plates With Customize Service
Company profile
We have established long term business relation with many customers all over the world due to good quality product, attractive price, timely shipment, perfect after – sale service.
Our company performs in accordance with Chinese National Standards (GB) in China and quality assurance standards are implemented for overseas distribution.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
The infrared catalytic combustion technology is a new advanced technology, in the way of infrared radiation heating objects directly. Compared to electric heater, our gas infrared catalytic burner has 95% high efficient energy use, save 15%~20% of operating costs for customers.
Advantages
♦Energy efficient, as high as 20% gas can be saved every year
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance, usually only need to keep the combustion plate clean
♦ Withstands high pressure washing
♦Flame-out protection device
♦Lifespan: ≥11000hr
1. For industrial series burner;
2. For poultry farm infrared gas heater;
3. For BBQ infrared gas burner or stove.
Package
First it will be packed with bubble bags, the middle of each layer is separated by foam board, then packed into wooden boxes.
Finished products
| MODEL | Dimension | N.W. | Material | Heat Output | Gas Consumption | Application | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | |||
| THD2606 (Manual) | 320*270*130 | 1.7 | Aluminzied steel, rare-earth ceramic heating part | 2.46 | 2116 | 0.26 | 0.18 | poultry house, livestock farm, garden & greenhouse, patio, warehouse, factory etc. |
| THD2608 (Automatic) | 2.7 | |||||||
| THD6806 (Manual) | 675*235*95 | 2.8 | 3.9 | 3400 | 0.39 | 0.27 | ||
| THD6808 (Automatic) |
3.7 | |||||||
| THD5606 (Manual) |
500*500*180 | 1.4 | 2.46 | 2116 | 0.24 | 0.18 | ||
