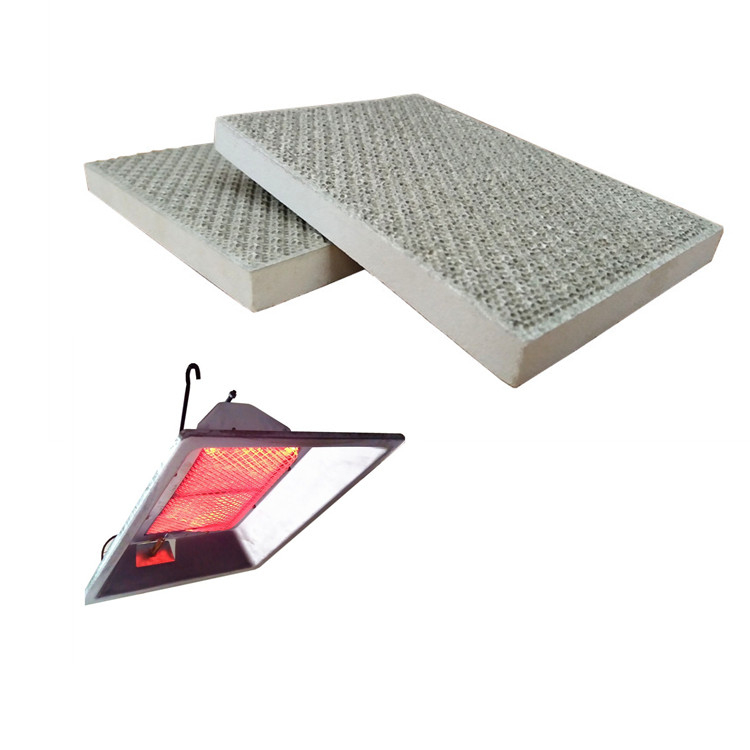

Catalytic Honeycomb Ceramic Heater Plates Gas Burner Stove Infrared Heating Plate
Product Details:
| Place of Origin: | China |
| Brand Name: | N/M |
| Certification: | N/M |
| Model Number: | 135*93*13.5 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Outer carton size: 98*30*25cm; Inner carton size: 96*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Customize Service: | ODM, Customize According To Design Is Available | Dimension: | 135*93*13.5mm |
|---|---|---|---|
| Advantage 1: | 20% Gas Saving Than Non-catalyst Honeycomb Plate | Advantage 2: | Conveyor Rate: Above 95% |
| Technology: | Covered With Rare Earth Catalyst On Combustion Plate | Application: | Use For BBQ Burner, BBQ Stove, Infrared Gas Heater Etc |
| High Light: | ODM Ceramic Heater Plates,Infrared Ceramic Heater Plates,Catalytic Infrared Heating Plate |
||
Product Description

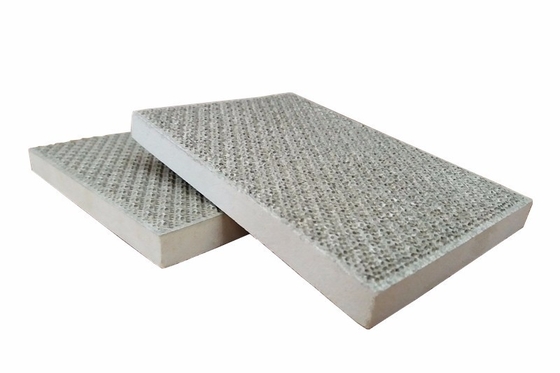

Gas Saving Catalytic Honeycomb Ceramic Heater Plates For Infrared Gas Burner Stove
Company profile
Chongqing Haodong Technology Co., Ltd was established in March 2005, over the years we focus on infrared catalytic combustion technology promotion and application in industrial and civil fields.
As the "Efficiency, Energy saving, Environmental protection" technical characteristics, we successfully developed and produced the industrial infrared catalytic burner, BBQ heating parts, poultry brooder and other related products and accessories. They are widely used in the food baking, industrial painting, glass annealing, low temperature heat treatment, ceramic embryo firing, livestock heating industries.
Description

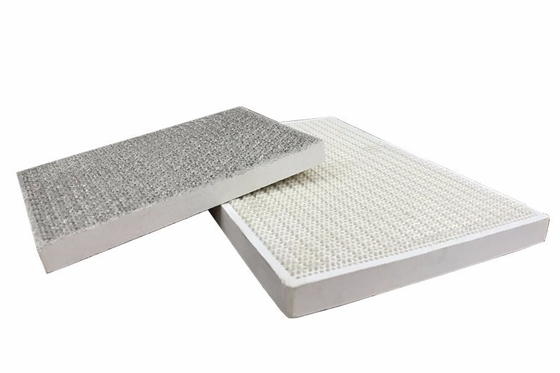

Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
Specifications

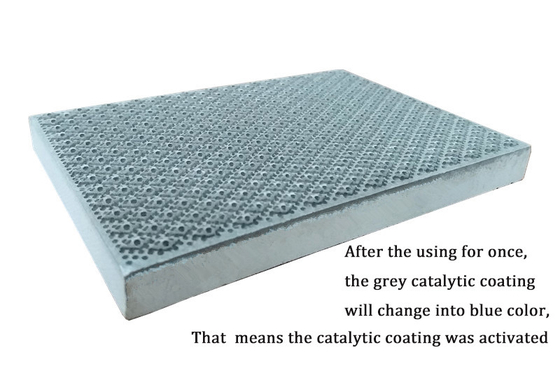

After years of improvement and control over the amount of catalyst used, we have now reached a mature state. When the ceramic plate covered with rare earth catalyst is never used, the overall color is gray, nearly black. After combustion, it will appear light blue, which is a feature of our catalytic ceramic plate.
After using:
Advantages
♦ Energy efficient, as high as 20% gas can be saved every year
♦ Conveyor rate: above 95%
♦ Reliability, Silent, light and compact
♦ Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦ Low maintenance, usually only need to keep the combustion plate clean
♦ Withstands high pressure washing
♦ Flame-out protection device
♦ Lifespan: ≥11000hr
1. For industrial series burner;
2. For poultry farm infrared gas heater;
3. For BBQ infrared gas burner or stove.
Certification
Finished product
| MODEL | Dimension | N.W. | Material | Heat Output | Gas Consumption | Application | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | |||
| HD162 | 570*130*175 | 5.9 | 2mm galvanized sheet case, ceramic plaque heating part | 6.3 | 5400 | 0.49 | 0.45 | Painting curing/powder coating oven,bakery machine, latex/rubber glove thermalforming, paper/ non-woven fabrics drying |
| HD162A | 4.4 | |||||||
| HD242 | 840*130*175 | 7.3 | 9.4 | 8120 | 0.75 | 0.68 | ||
| HD242A | 6.1 | |||||||
| HD262 | 930*130*175 | 7.8 | 10.9 | 9360 | 0.8 | 0.74 | ||
| HD262A | 6.6 | |||||||
| Remark: width keep the same, any reasonable length ≤ 930mm could be customized | ||||||||
