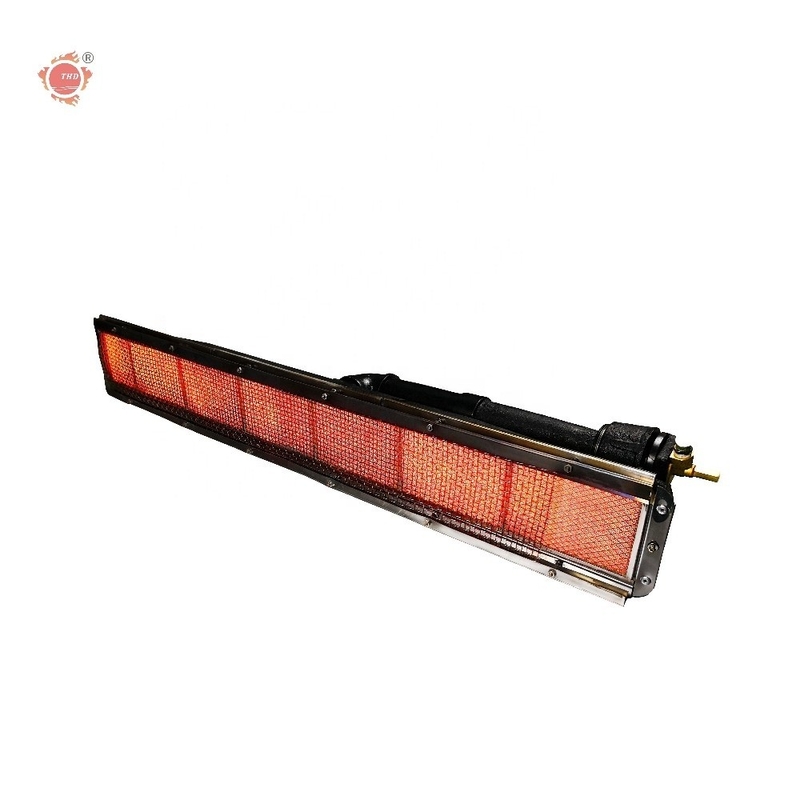

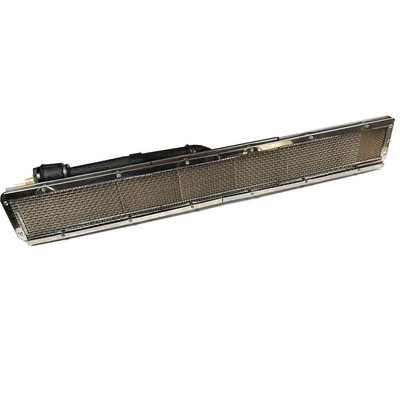

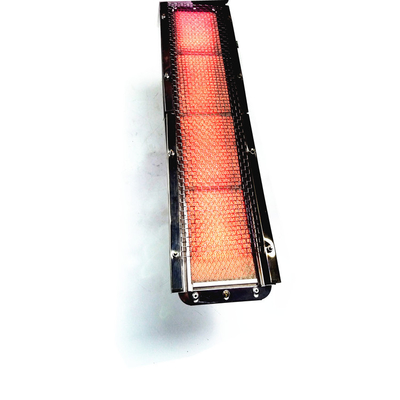

Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD262 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Out carton size: 98*30*25cm; Inner carton size: 96*23*14cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Material: | Rare Earth Catalytic Honeycomb Ceramic Plate | Fuel: | LPG, NG, Butane, Propane |
|---|---|---|---|
| Dimension: | 930*130*175mm | Heat Output: | 10.9KW; 9360Kcal/h |
| Advantage: | 20% Gas Saving Than Non-catalytic Infrared Gas Burner | Technology: | Covered With Rare Earth Catalyst On Combustion Plate |
| High Light: | Drying Catalytic Gas Burner,Curing Catalytic Gas Burner |
||
Product Description
Energy Saving Catalytic Gas Burner For Industrial Oven Drying Curing
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of infrared catalytic burners. We are in Chongqing city which is located in southwest of China with convenient transportation access.
We have established long term business relation with many customers all over the world due to good quality product, attractive price, timely shipment, perfect after – sale service.
Description
Adopt the high quality import cordierite porous plate, adding rare earth catalyst to produce high quality infrared catalytic burner. Main advantages are energy-saving and reducing consumption, improving productivity, long life, easy to install and maintain, environmental protection and so on.
Specifications
|
MODEL
|
Dimension
|
Weight
|
Gas Type
|
Heat Output
|
Consumption
|
||
|
|
mm
|
kg
|
|
KW/h
|
Kcal/hr
|
NG(m3/h)
|
LPG(kg/h)
|
|
HD61
|
423*80*94
|
3.8
|
NG/LPG
|
2.4
|
2030
|
0.18
|
0.18
|
|
HD82
|
219*164*108
|
4.8
|
NG/LPG
|
3.1
|
2700
|
0.24
|
0.24
|
|
HD101
|
690*80*115
|
6.9
|
NG/LPG
|
3.9
|
3380
|
0.3
|
0.29
|
|
HD162
|
570*130*175
|
5.9
|
NG/LPG
|
6.3
|
5400
|
0.49
|
0.47
|
|
HD410
|
410*175*220
|
8
|
NG/LPG
|
6.3
|
5400
|
0.49
|
0.47
|
|
HD242
|
840*130*175
|
7.5
|
NG/LPG
|
9.4
|
8120
|
0.75
|
0.71
|
|
HD600
|
600*175*220
|
11.7
|
NG/LPG
|
9.4
|
8120
|
0.75
|
0.71
|
|
HD262
|
930*130*175
|
7.8
|
NG/LPG
|
10.9
|
9360
|
0.8
|
0.82
|
Material
Oven whole system
Advantages
♦Wide operating range
♦Energy efficient, as high as 20% energy can be saved every year
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
Application
1. Industrial oven: powder coating oven, glove thermoforming line, tunnel oven, curing oven, pre-heat process etc;
2. Food baking oven: Biscuit line, puff food oven, tea drying, vegetable dehydration etc;
3. Glove thermoforming oven: disposable glove(nitrile, latex gloves) process line etc;
