Manual Temperature Adjustable Gas Brooder Heater For Chick House
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD6806 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Standard carton; Outer carton size: 81*30*30cm; Inner carton size: 78*26*13cm. |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, Credit card, Western Union, PayPal, Dragon Pay, L/C |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Gas Type: | LPG, Natual Gas, Butane, Propane | Dimension: | 675*235*95mm |
|---|---|---|---|
| Advantage: | 20% Gas Saving; Conversion Rate Above 95% | Cover Area: | 15-20 Square Meters, Above 1500 Chicks |
| Technology: | Covered With Rare Earth Catalyst On Honeycomb Plate | Lifespan: | Above 11000 Hours |
| Shell Material: | Imported Aluminized Plate | Pressure Gauge: | 0.02-0.05bar 2000-5000pa |
Product Description

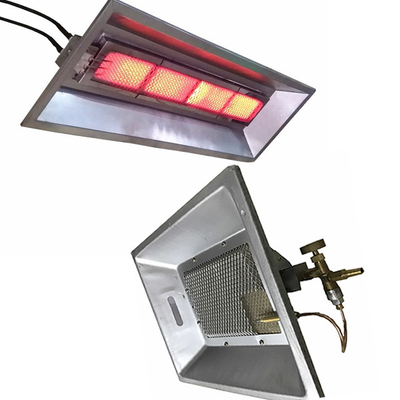

Manual Temperature Adjustable Gas Brooder Heater For Chick House
Company profile
Established in 2005, Chongqing Haodong Technology Co., Ltd. is a manufacturer specializing in the research, development and production of infrared catalytic gas burners & heaters.
Description
Brooders are infrared gas heaters that keep the chicks warm for the first weeks after hatching when the chicks are no longer in the actual incubator. We call this the so-called ‘brooding period’. In the wild the sun can function as a brooder for a part of the day, giving the hens some ‘time off’ to leave the nest and search for food.
In broiler houses and rearing houses hens are completely absent, this is where Gas brooders take over this heating task. The Gas infrared brooders are therefore an important and essential part of a smooth transition from the incubator to a poultry house for day old chicken during the first weeks of a chicken’s life. After that period, a chicken can generally produce sufficient heat itself, so that it no longer needs additional heating.
Specifications

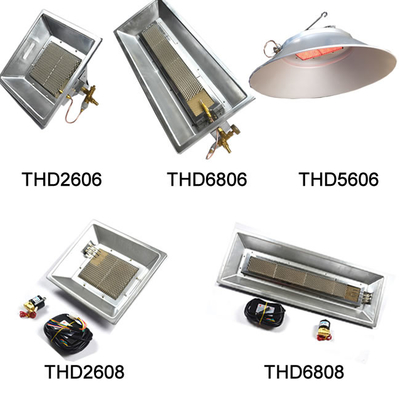

| MODEL | Dimension | Weight | Gas Type | Heat Output | Consumption | ||
| mm | kg | KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||
| THD2606 | 320*270*130 | 1.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD2608 | 320*270*130 | 2.7 | NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
| THD6806 | 675*235*95 |
2.8
|
NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD6808 | 675*235*95 | 3.7 | NG/LPG | 3.9 | 3400 | 0.39 | 0.27 |
| THD5606 | 500*500*180 |
1.4
|
NG/LPG | 2.46 | 2116 | 0.26 | 0.18 |
Operation of manual model
WHY CHOOSE US?
1. Advantages
♦Energy saving: 10%-20% gas saving than other non-catalytic infrared gas heater;
♦ Conveyor rate: above 95%
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000 hours
2. Company honors
System Overview
Usually the whole system includes:
1. Thermostat controller: setting temperature, and control the working of heaters, its customized to make control 1-40 sets heaters;
2. Pressure reducing valve: to get the appropriate gas pressure;
3. Pressure gauge: to reflect the gas pressure, it's important for the gas equipment;
Application
Widely used for kinds of poultry farm, chick house, piglet house, birds brooding, patio, warehouse heating etc.
