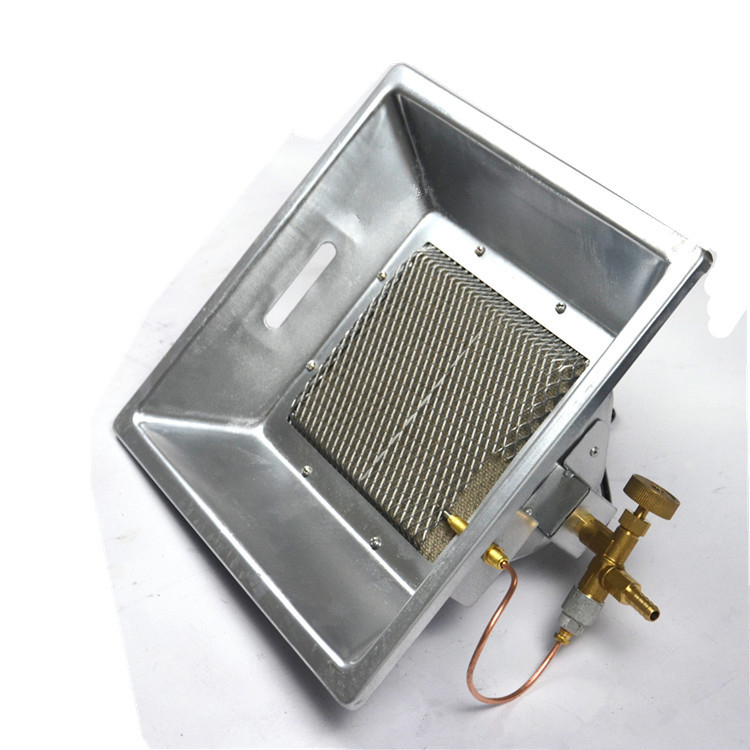

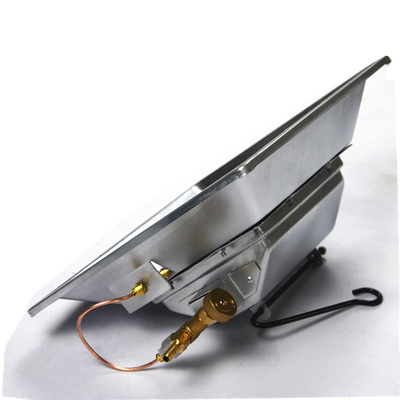

Chick Biogas Gas Brooder Heater Infrared Farm Heating THD2606
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | 2606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per week |
|
Detail Information |
|||
| Color: | Silver Grey | Safty Device: | Yes |
|---|---|---|---|
| Use: | Farm Heating | Material: | Galvanized Plate |
| Fuel: | Gas | Heating: | Infrared |
| High Light: | THD2606 Gas Brooder Heater,Chick Gas Brooder Heater,Infrared Biogas Brooder |
||
Product Description
Infrared Chick Brooder Heater Biogas Farm Heating THD2606
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater
There is different model of gas heter with different covering area and capacity for chicken.
Infrared Chick Brooder Heater Biogas Farm catalogue
|
Model
|
weight
|
Dimension
|
Gas Consumption
|
Heat Output
|
||
|
|
KG
|
mm
|
NG(m3/h)
|
LPG(KG/h)
|
KW/h
|
Kcal/h
|
|
Manual ignition
|
|
|||||
|
THD2606
|
1.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6806
|
2.8
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
|
Electric ignition
|
||||||
|
THD2608
|
2.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6808
|
3.7
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
|
|
|
Electric pulse igniter
|
220VAC/50hz or 110VAC/60hz
|
|||
|
|
|
ignition pin
|
3-pin type
|
|||
|
|
|
soelnoid valve
|
220VAC/50hz or 110VAC/60hz
|
|||
Infrared Chick Brooder Heater Biogas Farm Advantage
1. Easy being fixed. it is ceiling and hanging type.
2. Energy savings. The heating conversion is high to 95%.
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, The chicken gas brooder will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8seconds.
Gas brooder heater Application
