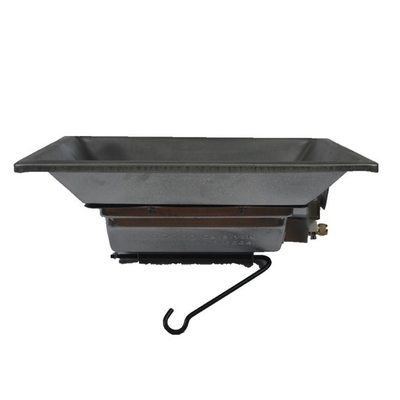

2.7 KG LP Gas Brooder Heaters 320*270*130mm For 800-1000 Brooding Chicks
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD2608 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 2 pcs a carton, carton size: 31*35*39cm |
| Delivery Time: | According to your qty |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100 pcs per day |
|
Detail Information |
|||
| Dimension: | 320*270*130mm | Net Weight: | 2.7 KG |
|---|---|---|---|
| Heat Output: | 8364 Btu/hour | Gas Type: | Natural Gas Or LPG |
| High Light: | LP gas brooder heaters,320*270*130mm gas brooder heaters,1000 Brooding Chicks gas heaters |
||
Product Description

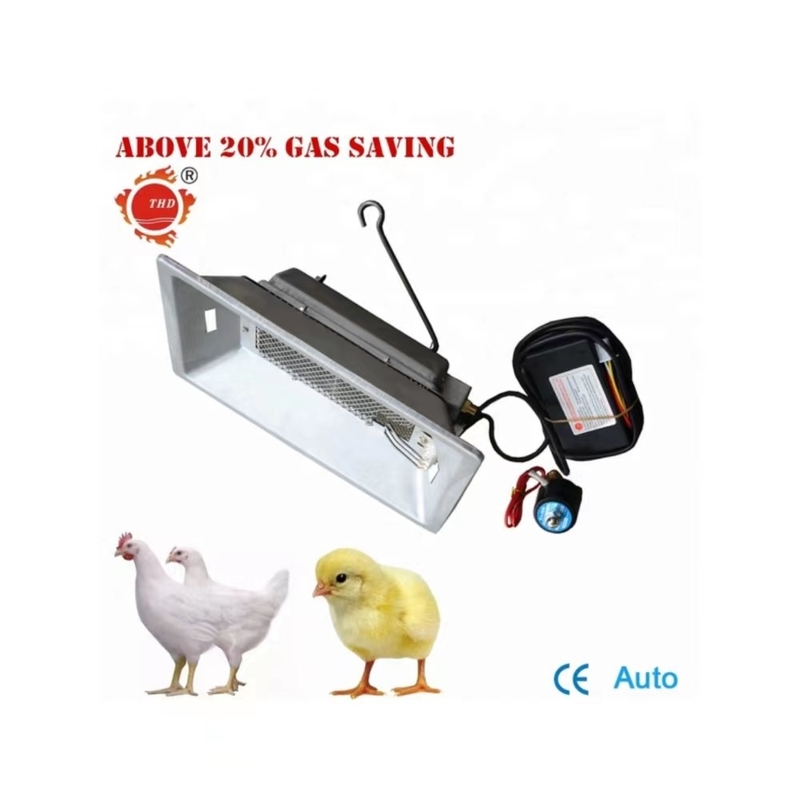

20% gas saving infrared ceramic chicken house heaters for sale
Specification
| Model | N.W | Dimension | Gas Consumption | Heat Output | ||
| kg | mm | NG(m3/h) | LPG/(kg/h) | Kw/h | Kcal/h | |
| Manual Ignition | ||||||
| THD2606 | 1.7 | Heater cover(L*W*H)320*270*130 | 0.24 | 0.18 | 2.46 | 2116 |
| Ceramic plate(L*W)188*135 | ||||||
| Thermostat Controlling | ||||||
| THD2608 | 2.7 | Heater cover(L*W*H)320*270*130 | 0.24 | 0.18 | 2.46 | 2116 |
| Ceramic plate(L*W)188*135 | ||||||
| Electric Pulse Igniter | 220V AC/50HZ or 110V AC/60HZ | |||||
| Ignition Pin | 3 pins type | |||||
| Solenvoid Valve | 220V AC/50HZ or 110V AC/60HZ | |||||
| Thermostat |
Custom made,can make a controller for 1 to 25 heaters |
|||||
Products Description

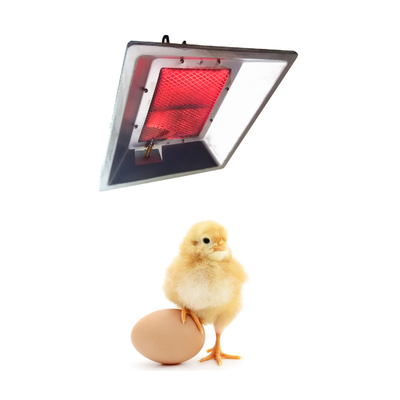

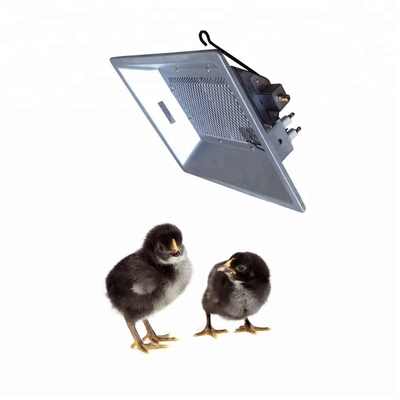

Chicken poultry gas brooder
Infrared body offers cost effective and can install in all direction. Our infrared plaques (Ceramic fiber, Cordierite and
Cordietire REE) offer high intensity medium-long wave and low gas consumption up to 20%
Widely used in farms, poultry houses, livestock farms, plant greenhouses, courtyards, cafe terraces, etc
Infrared body offers cost effective and can install in all direction. Our infrared plaques (Ceramic fiber, Cordierite and
Cordietire REE) offer high intensity medium-long wave and low gas consumption up to 20%
Widely used in farms, poultry houses, livestock farms, plant greenhouses, courtyards, cafe terraces, etc
Product Specification
Now based on IR Catalytic technology, we manufacture gas brooder for poultry house, with two ways to
ignition: manual ignition (THD2606/6806) and auto-ignition type (THD2608/6808).
ignition: manual ignition (THD2606/6806) and auto-ignition type (THD2608/6808).
Products Structure
Shell material: heat-resistant aluminum plate, light does not rust (on the market of some iron-based enamel
coating, after the bump easily fall off and rust);
Burning surface: High quality cordierite honeycomb panels with catalyst coating
coating, after the bump easily fall off and rust);
Burning surface: High quality cordierite honeycomb panels with catalyst coating
Operation Steps
Automatic heater system installation diagram
Product Application
Advantage
This heater uses catalytic combustion technology, has a higher heat conversion capacity. Under the same
air consumption, it releases more heat and produces less waste gas.
air consumption, it releases more heat and produces less waste gas.
1. Economical & Energy saving: in the same power, our heater saves 30%~60% cost than electric heater.
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%
2. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
3. High efficiency: thermal conversion rate ≥90%
Advantage
4. THD2608/THD6808 coud keep the room constant temperature automatically when use thermostat.
5. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to prevent gas leakage.
6. THD2606/THD6806 could use biogas, and adjust fire big or small.
7. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters, heating 600 ~ 1500 chickens.
8. Silent, light and compact.
5. Flameout protection device: when the flameout occurs, the valve automatically closes the gas to prevent gas leakage.
6. THD2606/THD6806 could use biogas, and adjust fire big or small.
7. Radiation area: suspended from the ground at 0.9 ~ 1.5m high radiation area of 10 ~ 20 square meters, heating 600 ~ 1500 chickens.
8. Silent, light and compact.
