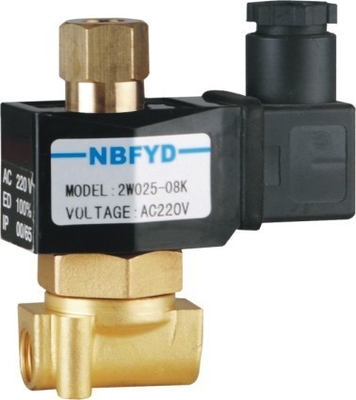

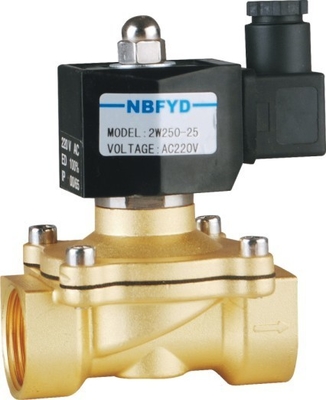

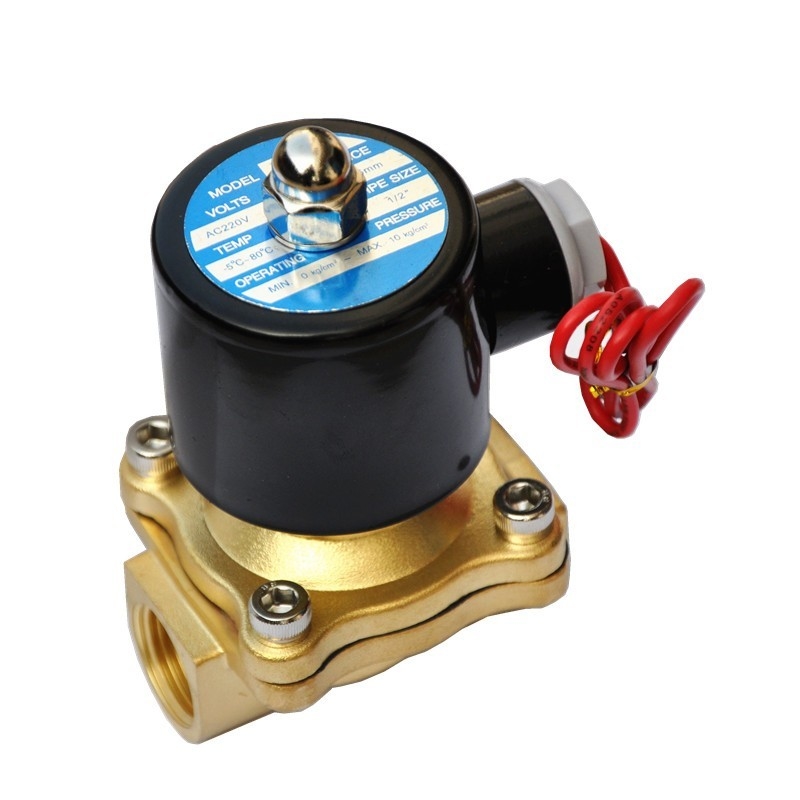

Hydraulic Electric Solenoid Valve Normally Closed 2 Way Brass stainless Steel
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | USD6-60 |
| Packaging Details: | carton |
| Delivery Time: | 5-15 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs a week |
|
Detail Information |
|||
| Materai: | Brass, Stainless | Port Size: | 3/8,1/2,3/4,1,1 1/4,1 1/2,2 |
|---|---|---|---|
| Usage: | Gas, Air, Water Steam | Power: | Solenoid |
| High Light: | Hydraulic Solenoid Valve Normally Closed,Electric Solenoid Valve Normally Closed |
||
Product Description
Hydraulic Electric Brass Solenoid Valve Normal Closed 2 Way :
DC - 12V,24V AC - 24V,120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Coils :S51B, 40VA(AC), 30W(DC), IP65 100%ED
SD01B, 35VA(AC),30W(DC),IP65,100%ED
SD02B,flying lead 35VA(AC),30W(DC),IP65,100%ED
Size: 3/8-2"
Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Characteristic:
1. Direct lifting diaphragm construction;
2. Open from zero bar for low pressure system use;
3. High frequency of DIN plug coil
4. Medium:Air, City Gas, Water, Oil, Petroleum, etc.
5. Pressure:2W21: 0.00MPa ~ 1.0MPa.
6. Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
Hydraulic electric AC DC 12v 24v 110v 220v air steam water copper coil brass solenoid valve Temperature:
NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150.
Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
Orifice (mm): 12,15,20,25,32,40,50
| Model | 2W025-06 | 2W025-08 | 2W040-10 | 2 W160- | 2 W160- | 2W200-20 | 2W250-25 | 2W350-35 | 2 W400- | 2 W500- |
| 2S025-06 | 2 S025- | 2 S040 | 2S160-10 | 2S160-15 | 2S200-20 | 2 S250- | 2S350-35 | 2 S400 | 2S500-50 | |
| Medium | Air, water, oil, Gas | |||||||||
| Stock | Direct acting | |||||||||
| Type | Normally closed type | |||||||||
| Aperture of flow rate | 2.5mm | 4mm | 16mm | 20mm | 25mm | 35mm | 40mm | 50mm | ||
| Cv value | 0.23 | 0.6 | 4.8 | 7.6 | 12 | 24 | 29 | 48 | ||
| Port size | G1/8" | G1/4" | G3/8" | G3/8" | G1/2" | G3/4" | G1" | G1 & frac14;” | G1 & frac12; " | G2" |
| Fluid viscosity operation | <20CST | |||||||||
| Working pressure | 0 ~ 7bar (0 ~ 101.52psi) | Air/Gas: 0 ~ 7bar, water/oil: 0 ~ 5bar | ||||||||
| Temperature range | -5 ~ 80 ° C | |||||||||
| Voltage range | DC12V, DC24V, AC24V, AC36V, AC110V, AC220V, AC380. voltage range ± 10% | |||||||||
| Body material | Brass, stainless steel | |||||||||
| Sealing Material | NBR, EPDM or VITON | |||||||||
