Electronic Brass Solenoid Valve 0.23 ~ 48 CV Medium Pressure For Gas Heater Burner
Product Details:
| Place of Origin: | China |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5piece |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton, wooden box, bubble bag |
| Delivery Time: | 7~15 work days |
| Payment Terms: | T/T, Western Union, L/C |
| Supply Ability: | 500 per month |
|
Detail Information |
|||
| Product Name: | Burner Spare Part Solenoid Valve | Material: | Brass And Stainless Steel |
|---|---|---|---|
| Temperature Of Media: | -10~185°C | Pressure: | Medium Pressure |
| Service Medium: | Air,water,oil,liquid And Gas | Aperture Of Flow Rate: | 2.5~50mm |
| Cv Value: | 0.23~48 | Operation Fluid Viscosity: | <20CST |
| Working Pressure2: | Air/Gas: 0~7bar, Water/Oil: 0~5bar | ||
| High Light: | 48 CV Brass Solenoid Valve,0.23 CV Brass Solenoid Valve,Medium Pressure Electronic Solenoid Valve |
||
Product Description

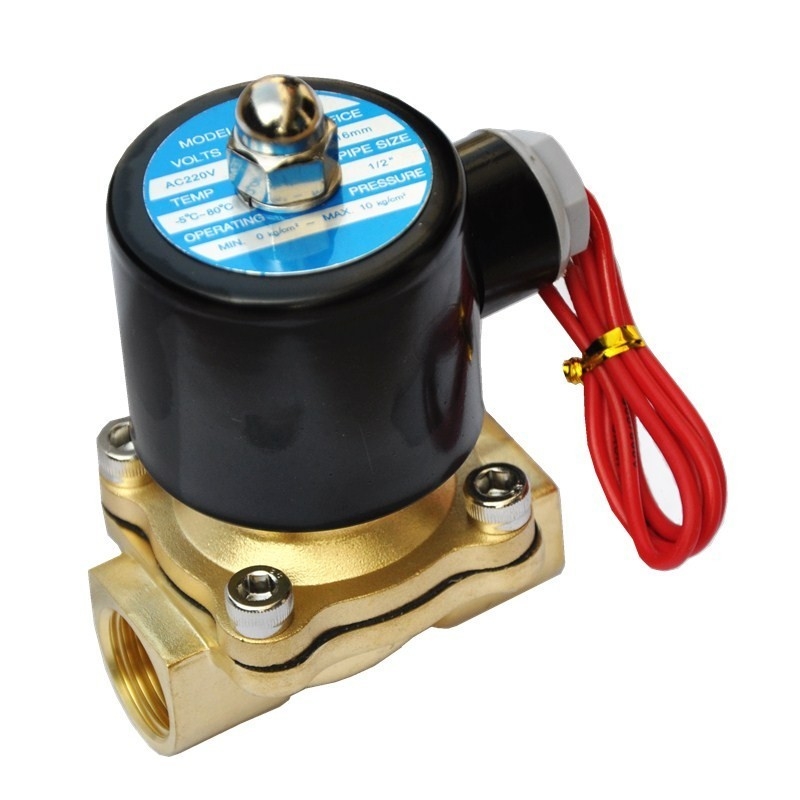

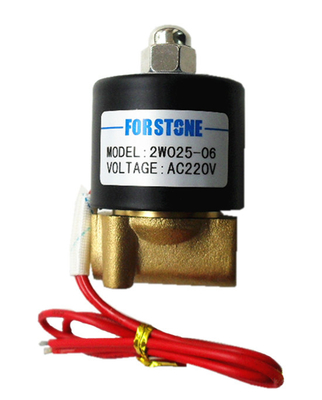

Electronic Solenoid Valve 0.23~48 Cv Brass Solenoid Valve For Gas Heater Burner
Products Description
2W /2L series solenoid valve are 2/2 way, direct action type, are most popular valves for many conditions, especially in the water treatment system, such as water heater. It can start working at zero differential pressure. This type of valve can change the coils to be as explosion-proof solenoid valve or water-proof solenoid valve to be used in water.
Details Images
Solenoid Valve Character
1.Direct lifting diaphragm construction
2.Open from zero bar for low pressure system use
3.High frequency of DIN plug coil
4.Medium: Air, City Gas, Water, Oil, Petroleum, steam,etc.
5.Pressure: 0.00MPa ~ 1.0MPa.
6.Port Thread: BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
Temperature and Port Size:
1.NBR Seal: 14F to 176F , -10 to 80C
2.EPDM Seal: 14F to 250F , -10 to 120C
3.VITON Seal : 14F to 300F, -10 to 150C.
4.Port Size: 3/8,1/2,3/4,1,1 1/4,1 1/2,2
5.Orifice (mm): 12,15,20,25,32,40,50
More products
Our Advantages
1) Fluid: air, water and oil
2) Joint pipe bore: G1/8"-G2"
3) Working-pressure range: 0.15-0.8MPa
4) Operating temperature range: -5 ~ +60°C
Exhibition
Company Profile
Chongqing Haodong Technology Co., Ltd is a professional integration of industry and trade who was built in 2005.
We supply the solenoid valve, pipe fitting & connector, kitchen valve, electric infrared heater, water tap faucet and conveyor chain parts etc.
Good quality and reputation makes our products popular in both domestic and overseas markets.
Located in Chongqing City, southwest of China, and has a branch factory in Zhejiang. We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities.
