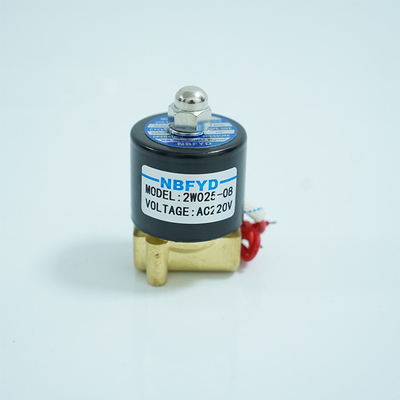

Normally Closed Brass Solenoid Valve 1/4 1/2 3/4 Inch For Infrared Burner Stove
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | NBFYD |
| Certification: | CE |
| Model Number: | 2W025-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | according to requirements |
|---|---|
| Price: | Negotiable |
| Packaging Details: | according to the quantity |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, L/C, Western Union, PayPal, Credit card |
|
Detail Information |
|||
| Port Size: | 1/4'', 1/2'', 3/4'' | Material Of Body: | Brass |
|---|---|---|---|
| Sealing Material: | NBR | Temperature: | 5-80℃ |
| Motion Pattern: | Direct Drive | Other Related Parts: | Electric Pulse Igniter, Ignition Pin, Thermostat |
| Voltage: | DC: 12,24,36;AC: 36,110,220,380 | Type: | Normal Closed |
| High Light: | 1/2 Inch Brass Solenoid Valve,CE Brass Solenoid Valve,3/4 Inch Normally Closed Solenoid Valve |
||
Product Description
Oven Gas Pipe Line Brass Solenoid Valve For Infrared Burner Stove
Details

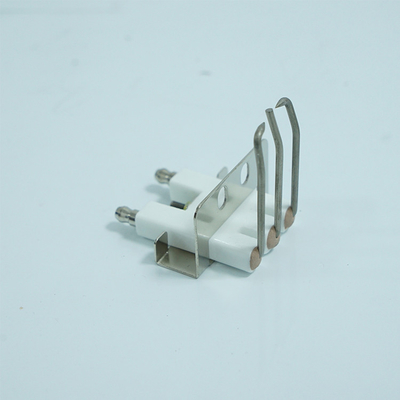

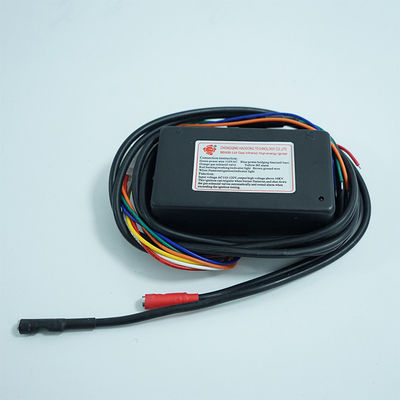

This ignition set includes electric pulse igniter, ignition pin, solenoid valve.
It used for all kinds of industrial equipments which using liquefied petroleum gas, natural gas, artificial gas.
Specification:
Item No.: HD-103
Input voltage:220 vac or 110 vac
Output voltage:15 kv
Ignition time: 10 seconds
Discharge frequency:50 hz
Feedback current:360-500 uA
Ignition power:3.2-4 w
Normal working power:1.6-2.2w
System
Its for the wire of the solenoid valve which used for infrared gas burner.
Other euipments
Company profiles
Established in 2005 ,Chongqing Haodong Technology co.,Ltd is a mannufacturer specialiaed in the research, development and production of infrared catalytic burner.
The inrared burner is based on catalytic combustion patent technique which is advanced in the field and which is developed by Sichuan Chemical Works Ltd. Now thy have been successfully applied in coating,foods drying and baking ,drying process, heating at low and middle temperatures, warming , heat preservaton and so on .
If any need, welcome to contact us freely!!
We'll do our best to serve for you!!
Your satisfaction is our passion!!!
