Automatically Ignition Electronic Pulse Igniter 220VAC / 110VAC THD103
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | THD103 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5~10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Oven Parts,pulse Lighter | Material: | Plastic And Metal |
|---|---|---|---|
| Color: | Black | Application: | Gas Oven,heating And Drying System,Gas Appliance Accessories,stove |
| Product Name: | Automatically Ignition Electric Pulse Igniter 220/110VAC | Usage: | Igniting,Gas Stove/Water Heater/Oven Parts/Stove Parts |
| Voltage: | 110VAC,220VAC | Feature: | Safe And Eco-friendly |
| Frequency: | 50~60Hz | Absorbed Supply: | 0.6VA |
| Parts Name: | Electric Pulse Igniter | Power: | 110V~240V |
| Life Time: | More Than 50000 | ||
| High Light: | 220VAC Electronic Pulse Igniter,110VAC Electronic Pulse Igniter |
||
Product Description
Product Name: Automatically Ignition Electronic Pulse Igniter 220VAC / 110VAC THD103
Product Purpose
This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.
It is widely used in all kinds of gas burner, stove, cooker,oven,furnace.
Features:
1.Safety inspection
2. Ignition control
3.Flame-out protection
4.Fault alarm
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Working process
Technical Parameter
Electric pulse igniter automatically ignition 220VAC / 110VAC THD103
| No | Items | Quotas | Remarks |
| 1 | Rated operational voltage | VAC | |
| 2 | Discharge frequency | 50HZ | |
| 3 | Arcing distance | ≥6mm | |
| 4 | Duration of ignition | 10s | It can be adjusted according to your requirements |
| 5 | Duration of rekindling | 10s | |
| 6 | Discharge energy | ≥4J | |
| 7 | Discharge cycle | ≤400ms | |
| 8 | Width | ≥12μs | |
| 9 | Deferent high pressure | ≥16KV |

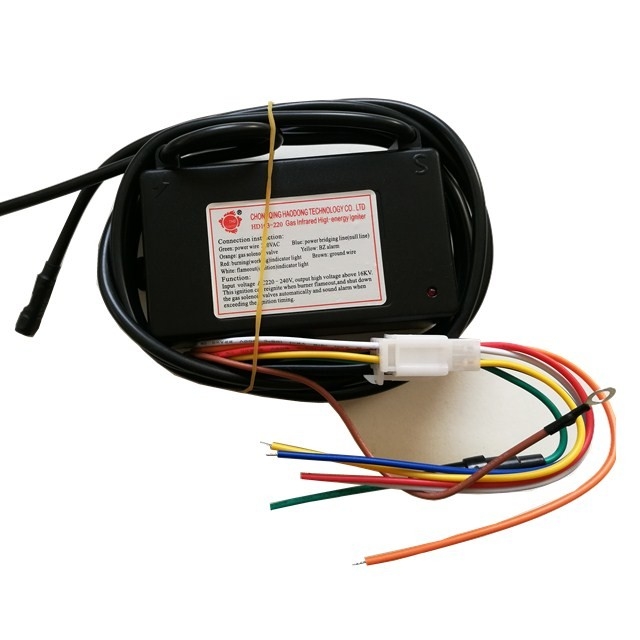

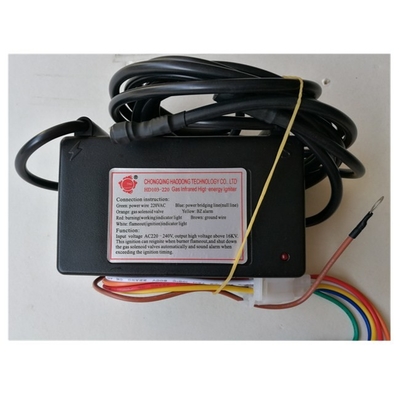

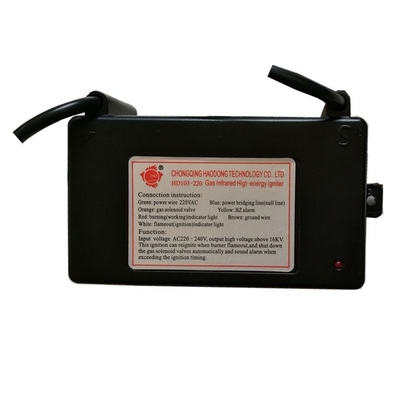

Detail picture for electric pulse igniter GM103
Technical parameter of Electric pulse igniter automatically ignition 220VAC / 110VAC THD103
| No | Items | Quotas | Remarks |
| 1 | Rated operational voltage | 110/220VAC | |
| 2 | Discharge frequency |
50HZ |
|
| 3 | Arcing distance | ≥6mm | |
| 4 | Duration of ignition | 10s | It can be adjusted according to your requirements |
| 5 | Duration of rekindling | 10s | |
| 6 | Discharge energy | ≥4J | |
| 7 | Discharge cycle | ≤400ms | |
| 8 | Width | ≥12μs | |
| 9 | Deferent high pressure | ≥15KV |
Application of Electric pulse igniter automatically ignition 220VAC / 110VAC THD103
