Industrial Electronic Gas Stove Oven Spark Igniter PP 110V - 240V THD103
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | THD103 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Carton |
| Delivery Time: | 5~10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Oven Parts,pulse Lighter | Material: | Plastic And Metal |
|---|---|---|---|
| Color: | Black | Application: | Gas Oven,heating And Drying System,Gas Appliance Accessories,stove |
| Product Name: | Industrial Pulse Igniter Electric Oven Ignition Parts | Usage: | Igniting,Gas Stove/Water Heater/Oven Parts/Stove Parts |
| Voltage: | 110VAC,220VAC | Feature: | Safe And Eco-friendly |
| Frequency: | 50~60Hz | Absorbed Supply: | 0.6VA |
| Width: | ≥12μs | Parts Name: | Electric Pulse Igniter |
| Function: | Lgnition | Power: | 110V~240V |
| Plastic Type: | PP | Life Time: | More Than 50000 |
| Product Name: | Industrial Electronic Pulse Igniter Oven Ignition Parts | ||
| High Light: | Electronic Oven Spark Igniter,PP Oven Spark Igniter,110V Gas Stove Oven Igniter |
||
Product Description
Product Name: Industrial Electronic Pulse Igniter Oven Ignition Parts
Product Purpose
This product is mainly used for the ignition and control of industrial equipment with the energy of liquefied petroleum gas, natural gas and coal gas.
It is widely used in all kinds of gas burner, stove, cooker,oven,furnace.
Features:
1.Safety inspection
2. Ignition control
3.Flame-out protection
4.Fault alarm
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Working process
Technical Parameter of Industrial pulse igniter electric oven ignition parts
| No | Items | Quotas | Remarks |
| 1 | Rated operational voltage | VAC | |
| 2 | Discharge frequency | 50HZ | |
| 3 | Arcing distance | ≥6mm | |
| 4 | Duration of ignition | 10s | It can be adjusted according to your requirements |
| 5 | Duration of rekindling | 10s | |
| 6 | Discharge energy | ≥4J | |
| 7 | Discharge cycle | ≤400ms | |
| 8 | Width | ≥12μs | |
| 9 | Deferent high pressure | ≥15KV |

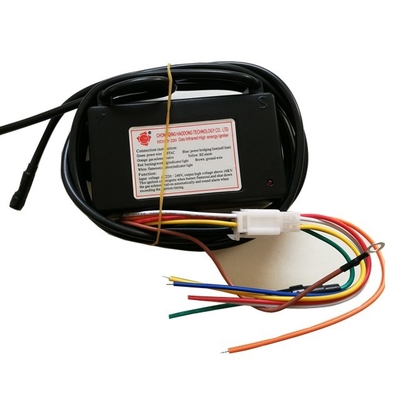

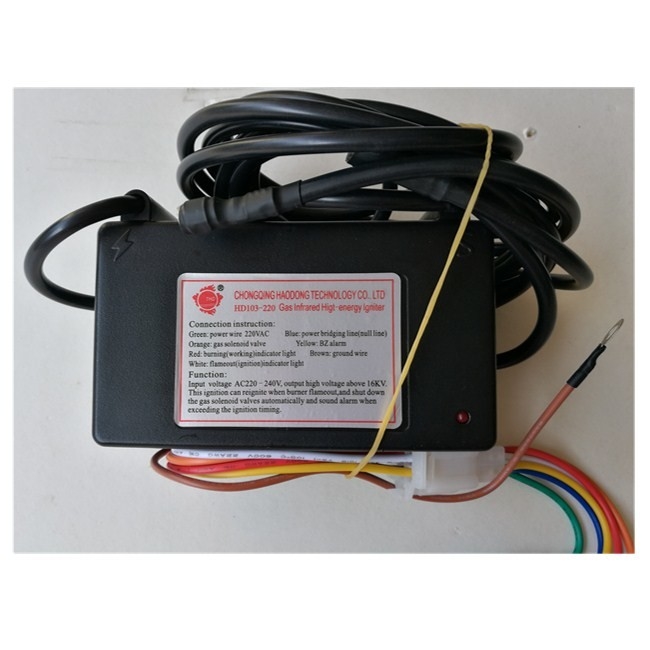

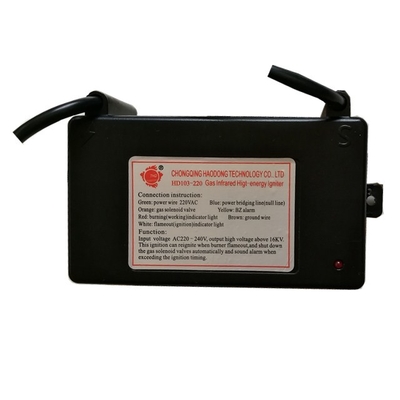

Detail picture for Industrial pulse igniter electric oven ignition parts
Technical parameter of Industrial oven ignition parts electric pulse igniter GM103
| No | Items | Quotas | Remarks |
| 1 | Rated operational voltage | 110/220VAC | |
| 2 | Discharge frequency |
50HZ |
|
| 3 | Arcing distance | ≥6mm | |
| 4 | Duration of ignition | 10s | It can be adjusted according to your requirements |
| 5 | Duration of rekindling | 10s | |
| 6 | Discharge energy | ≥4J | |
| 7 | Discharge cycle | ≤400ms | |
| 8 | Width | ≥12μs | |
| 9 | Deferent high pressure | ≥15KV |
Application of Industrial oven ignition parts electric pulse igniter GM103
