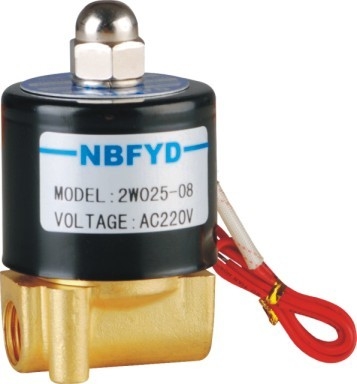

220V High PressureBrass Solenoid Valve NBR VITON EPDM Seal For Water Gas Air Oil
Product Details:
| Place of Origin: | China |
| Brand Name: | NBFYD |
| Certification: | CE |
| Model Number: | 2W025-08 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | carton |
| Delivery Time: | 5~10 workdays |
| Supply Ability: | 10000pcs/month |
|
Detail Information |
|||
| Material: | Brass/Stainless Steel | Power: | Solenoid |
|---|---|---|---|
| Voltage: | 110VAC,220VAC,12VDC,230 AC | 50,24 DC | Port Size: | 1/4"~2" |
| Pressure: | Medium Pressure | Structure: | Control |
| Temperature Of Media: | Normal Temperature | Media: | Water,Air,Oil,Gas |
| Application: | General | Standard Or Nonstandard: | Standard |
| Connection: | G,NPT,BSP,NPT/G | Type: | Gas Burner Valve Brass Solenoid Valve,Normally Closed Or Normally Opened |
| Working Pressure: | 0-0.7Mpa | Body Material: | Brass |
| Working Temperature: | -5-80℃ | Seal: | NBR VITON EPDM |
| Warranty: | 12 Months | Product Name: | 220V Brass Solenoid Valve High Pressure For Water Gas Air Oil |
| High Light: | 220V Brass Solenoid Valve,NBR Brass Solenoid Valve,EPDM High Pressure Solenoid Valve |
||
Product Description
Product Name: 220V Brass Solenoid Valve High Pressure For Water Gas Air Oil
Voltage:
DC - 12V,24V AC - 24V,AC 120V, 240V@60HZ 110V, 220V@50HZ Tolerance: +/- 10%
Material:
Body - Brass or Stainless steel
Seal -NBR, EPDM, PTFE or VITON
Armature Tube - Stainless Steel 304
Plunger - Stainless Steel 430F
Stop -SS430F
Springs - SS 304
Shading Rings - Stainless Steel 304
Characteristic:
1.Direct lifting diaphragm construction;
2.Open from zero bar for low pressure system use;
3.High frequency of DIN plug coil
4.Medium:Air, City Gas, Water, Oil, Petroleum, steam,etc.
5.Pressure: 0.00MPa ~ 1.0MPa.
6.Port Thread:BSPP ,BSPT ,NPT ,Flange, UNF, M8X1
Temperature:
NBR Seal: 14F to 176F , -10 to 80
EPDM Seal: 14F to 250F , -10 to 120
VITON Seal : 14F to 300F, -10 to 150.
Port Size:3/8,1/2,3/4,1,1 1/4,1 1/2,2
Orifice (mm): 12,15,20,25,32,40,50
Normally close 2 way solenoid valve 2W250-25
Our factory is located in Yunhuan county, Zhejiang province, where is the famous production base of valve.
Various kinds of valve, 2 way solenoid valve, nozzle, connector, sanitary accessories are produced by us.
Base on the “quality is the life of enterprise”, our company supply high quality products, also could customized by customers requirements. Welcome to inquiry, we would cooperate and benefit with you.
1. How many years guarantee for 2 way solenoid valve?
Generally speaking 1 years with proper use.
2. What is your MOQ?
500pcs.
3. How about the delivery time?
Diffenertl order in 5 - 40 days.
4. Can we get sample to check quality?
of course, samples is ok to check the quality.
5. How many days for arranging samples?
3-7days.
6. Do you charge for samples and freight?
customers need pay for them, then it will be return to you in official order.
7. What is your payment.
T/T, L/C, CASH, PAYPAL, WESTER UNION can be accepted.
Please contact with me for details about 2 way solenoid valve.
