Safety Electronic Pulse Igniter Automatic Gas Ignition Controller For Furnace Oven
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | THD |
| Model Number: | HD103 |
Payment & Shipping Terms:
| Minimum Order Quantity: | according to requirements |
|---|---|
| Price: | Negotiable |
| Packaging Details: | according to the quantity |
| Delivery Time: | 3-7 workdays |
| Payment Terms: | T/T, L/C, Western Union, PayPal, Credit card |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Electronic Pulse Igniter | Brand Name: | THD |
|---|---|---|---|
| Voltage: | 220-240V/110-127V | Duration Of Ignition: | 10s |
| Discharge Energy: | ≥4J | Deferent High Pressure: | ≥15KV |
| Warranty: | 1 Year Without Human Factor | Other Parts: | Ignition Pin, Solenoid Valve, Infrared Gas Burner |
| High Light: | Safety Electronic Pulse Igniter,Automatic Electronic Pulse Igniter,Furnace Oven Gas Ignition Controller |
||
Product Description

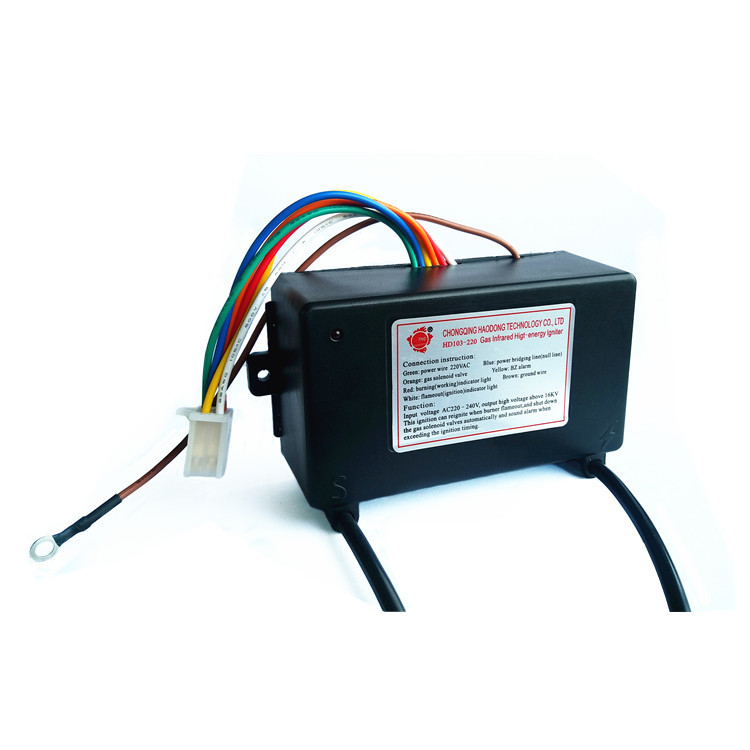

Safety Automatic Gas Ignition Controller Electronic Pulse Igniter For Furnace Oven
Company
We Chongqing Haodong Technology Co., Ltd, professional manufacturer of high quality infrared gas burner & parts with more than 17 years, now we provide many such related parts for the gas heating equipments, such as electric pulse igniter, ignition pin, solenoid valve, capsulre pressure gauge, industrial regulator, thremostat, powder spray machine etc.
Good feedback
Specification of spaker Kit Electric Pulse Igniter

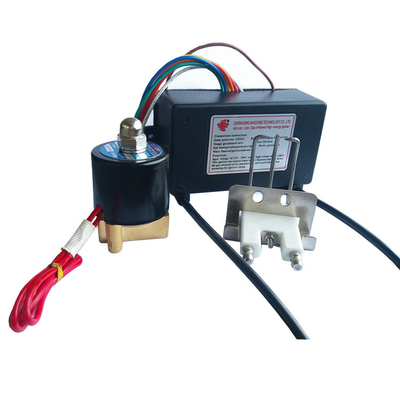

Wire system with other parts
Features
Electric ignition or switching control ignition
Ignite the gas again automatically if the fire went out accidentally.
Automatic monitoring or photoelectric control. If the fire went out, it can give warning automatically.
If it failed to ignite the gas or the fire went out accidentally, it can cut off the gas supply immediately.
Technology of Single-chip and digital microcomputer
lightning proof
Technical Parameter
| No | Items | Quotas | Remarks |
| 1 | Rated operational voltage | VAC | |
| 2 | Discharge frequency |
50HZ
|
|
| 3 | Arcing distance | ≥6mm | |
| 4 | Duration of ignition | 10s | It can be adjusted according to your requirements |
| 5 | Duration of rekindling | 10s | |
| 6 | Discharge energy | ≥4J | |
| 7 | Discharge cycle | ≤400ms | |
| 8 | Width | ≥12μs | |
| 9 | Deferent high pressure | ≥15KV |
Application
Package

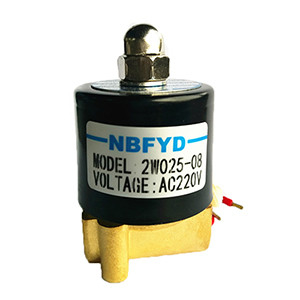

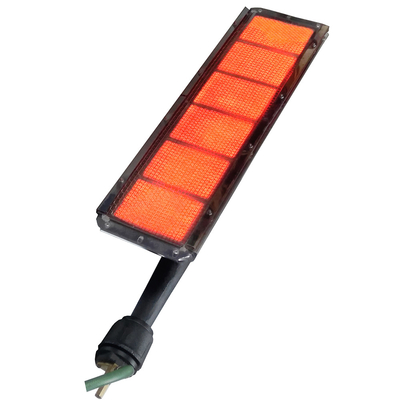

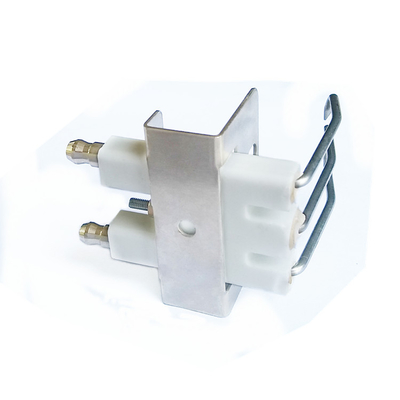

Other related parts
We also have kinds of infrared gas burner, thermostat, ignition pin, solenoid valve for your choice, if you are also interested, contact me for more details.
GOOD, FAST, IN GOOD FAITH.
1: We promise each product have predelivery test and any problem after sell we will deal with.
2: We will choose the fastest, safest and cheapest way to deliver.
3: If you have any question about the technology of burners, use way and install, please feel free to tell us. we will explain it detailly.
4: We can provide sample.
