15 Um Propane LPG BBQ Grill Stove Gas Burners Heater Parts Shawarma
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD8-23 |
| Packaging Details: | carton |
| Delivery Time: | 5-12 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 pcs a week |
|
Detail Information |
|||
| Usage: | Grill, BBQ Shawarma, Rotisserie | Material: | Catalytic Ceramic Plate |
|---|---|---|---|
| Heating Material: | Direct Heating | Gas: | LPG, NG, Propane, Butane |
| Life: | 111000 Hours | Wave Length: | 4 Um -15 Um |
| High Light: | LPG BBQ Grill Stove,LPG BBQ Grill Stove Gas Burners,shawarma BBQ Grill Stove |
||
Product Description

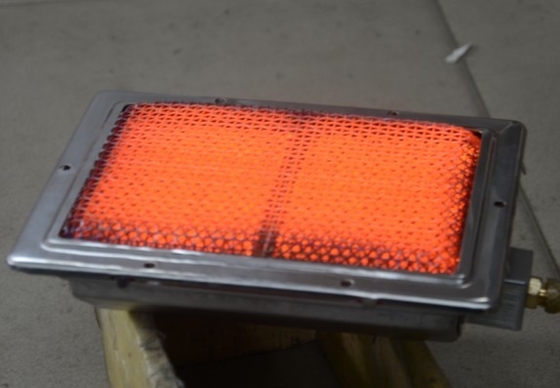

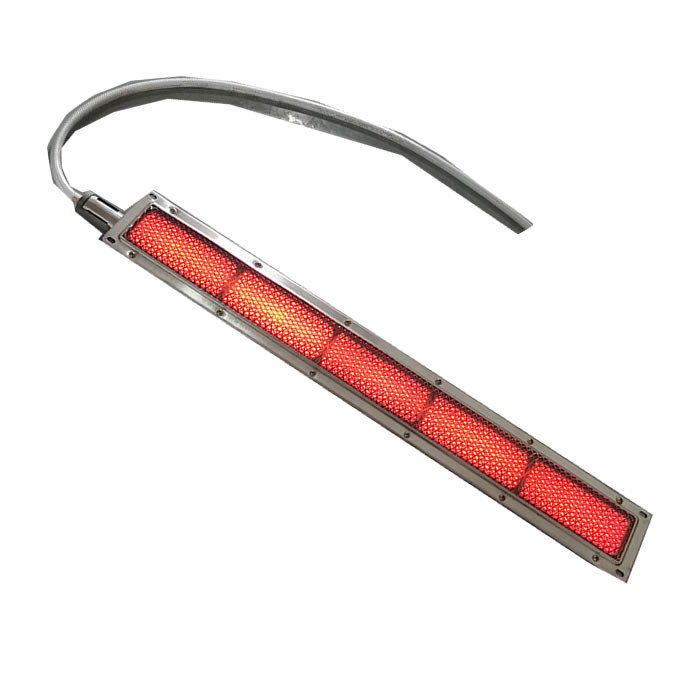

Propane LPG BBQ Grill Stove Gas Burners Gas heater parts shawarma
Usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipments are mainly by the way of convection to heat air first and then, the hot air transfer to object. in this way, Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, it save energy gas and the heating is fast.
Propane LPG BBQ Grill Stove Gas Burners Gas heater parts shawarma model
BBQ Grill Gas Burner Main Material:
1. Shell: aluminized steel sheet parts,
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron, it is the cover ban
| Model | size | power | weight | gas consumption | ||
| mm | BTU/hr | Kcal/hr | kg | NG(m3/hr) | LPG(KG/hr) | |
| HD220 | 220*170*65 | 10000 | 2520 | 0.8 | 0.3 | 0.22 |
| HD405 | 405*80*55 | 8278 | 2065 | 0.75 | 0.24 | 0.21 |
| HD295 | 295*120*60 | 8753 | 2214 | 0.8 | 0.25 | 0.2 |
| HD570 | 575*93*60 | 13514 | 3378 | 1.3 | 0.39 | 0.32 |
| HD700 | 700*93*60 | 16210 | 4052 | 1.5 | 0.46 | 0.38 |
| HD310 | Dia310 | 20160 | 5080 | 1.88 | 0.62 | 0.44 |
Propane LPG BBQ Grill Stove Gas Burners Gas heater parts shawarma advantage:
1. High energy transfer rate: usually the heating conversion can reach 95%,but common gas burner only 75%~80%.
2. High efficiency: Infrared burner will be in working condition for 8 seconds.And installed with quantity as design,it is fast heating it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation:one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly: infrared burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower…. , no need second heaitng trasnfer.
5. Low cost of equipment: match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.

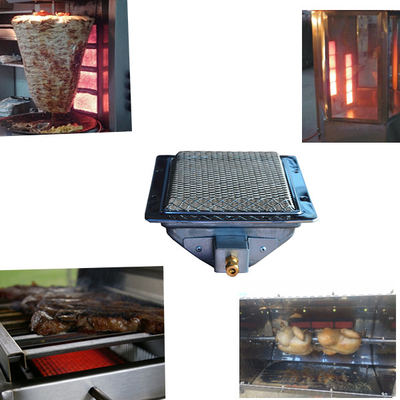

Grill BBQ infrared ceramic gas burner application:
This product is made for barbecue oven, grill,chicken gas roaster, shawarma doner kebab gyros machine,bread oven,cake bakery equipment,cheese baking machine.
