IR Radiant BBQ Grill Burners Roaster Rotisserie Stove Gas Shawama 15 Um
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10 |
|---|---|
| Price: | USD8-23 |
| Packaging Details: | carton |
| Delivery Time: | 5-12 days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 pcs a week |
|
Detail Information |
|||
| Usage: | Grill, BBQ Shawarma | Material: | Catalytic Ceramic Plate |
|---|---|---|---|
| Advantage: | Energy Saving, Fast Heating | Gas: | LPG, NG, Propane, Butane |
| Color: | Silver Grey | Wave Length: | 4 Um -15 Um |
| Highlight: | IR Radiant BBQ Grill Burners Roaster,Rotisserie Stove Gas Shawama Burner,15 um Gas Shawama Burner |
||
Product Description

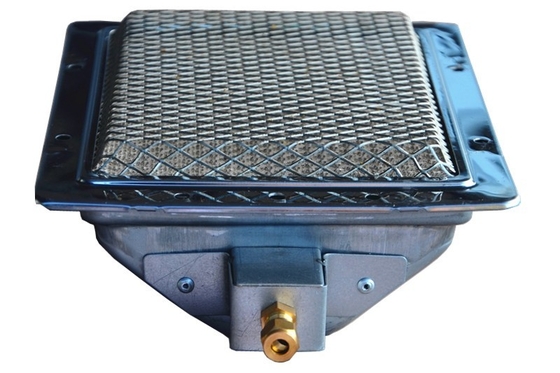

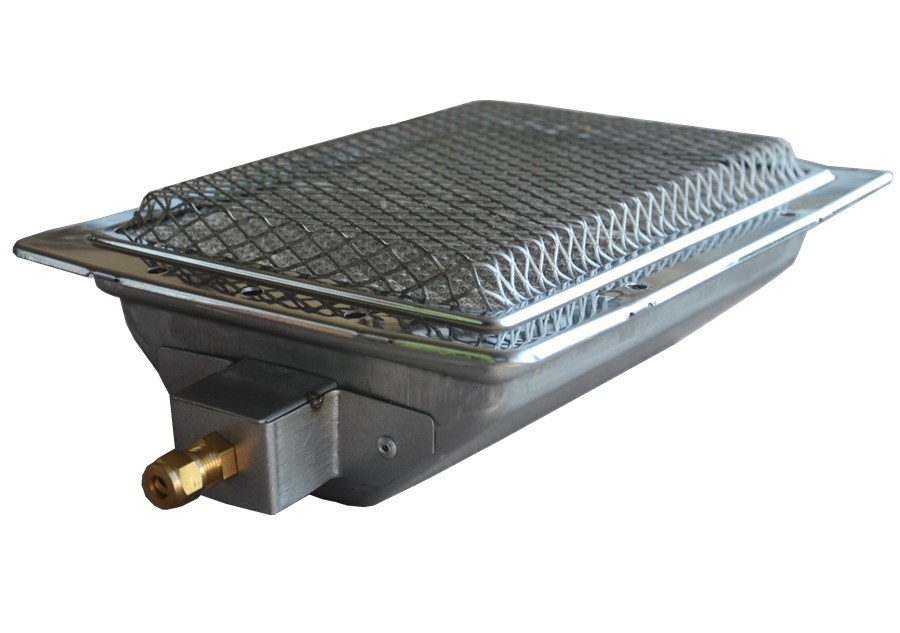

IR radiant BBQ Grill Burners Roaster Rotisserie Stove Gas shawama Burner
As we know, usually, there are three ways to transfer heat, Radiation, Convection, Conduction and their thermal efficiency decrease in turn. Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, it save energy gas and the heating is fast.
IR radiant BBQ Grill Burners Roaster Rotisserie Stove Gas shawama Burner Main Material:
1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
BBQ grill burner
| Model | size | power | weight | gas consumption | ||
| mm | BTU/hr | Kcal/hr | kg | NG(m3/hr) | LPG(KG/hr) | |
| HD220 | 220*170*65 | 10000 | 2520 | 0.8 | 0.3 | 0.22 |
| HD405 | 405*80*55 | 8278 | 2065 | 0.75 | 0.24 | 0.21 |
| HD295 | 295*120*60 | 8753 | 2214 | 0.8 | 0.25 | 0.2 |
| HD570 | 575*93*60 | 13514 | 3378 | 1.3 | 0.39 | 0.32 |
| HD700 | 700*93*60 | 16210 | 4052 | 1.5 | 0.46 | 0.38 |
| HD310 | Dia310 | 20160 | 5080 | 1.88 | 0.62 | 0.44 |
Gas direct heating BBQ Grill Burners Roaster rotisserie stove cooktop advantage:
1. High energy transfer rate: usually the transfer rate can reach 95%,but common gas burner only 75%~80%.
2. High efficiency: Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation:one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly: BBQ grill burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower….
5. Low cost of equipment: match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.
Gas direct heating BBQ Grill Burners Roaster rotisserie stove cooktop application:

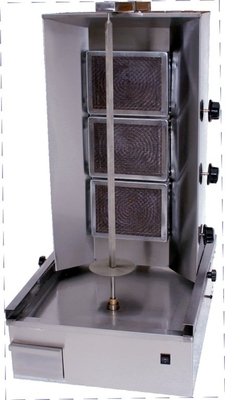

This product is made for barbecue oven, grill,chicken gas roaster, shawarma doner kebab gyros machine,bread oven,cake bakery equipment,cheese baking machine.
