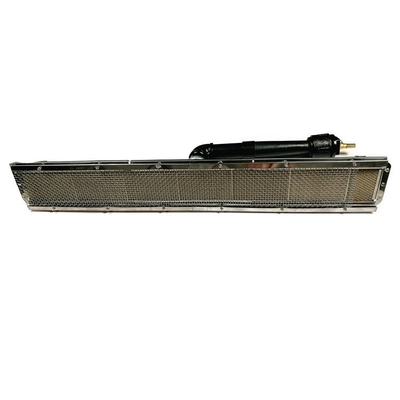

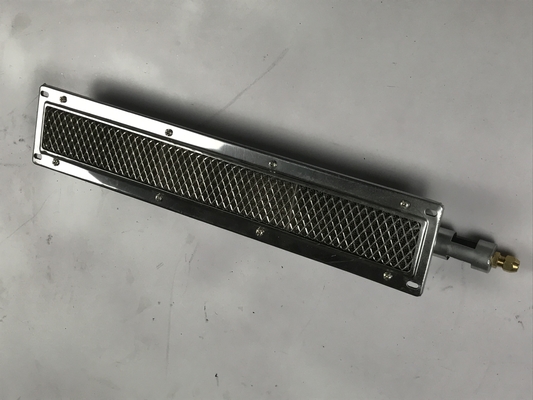

IR Heating Panel Bakery Oven Gas Burner catalytic Metal Ceramic Infrared Burner
Product Details:
| Place of Origin: | China |
| Brand Name: | HD |
| Model Number: | HD262 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 2-7 days |
| Supply Ability: | 1000pcs each week |
|
Detail Information |
|||
| Fuel: | Gas | Material: | Metal And Ceramic |
|---|---|---|---|
| Use: | Oven | Gas: | LPG NG Propane Butane |
| Advantage: | Gas Saving | Catalytic: | Yes |
| High Light: | Ceramic Bakery Oven Gas Burner,IR Heating Bakery Oven Gas Burner,Catalytic Ceramic Infrared Burner |
||
Product Description
IR Heating Panel Bakery Oven Gas Burner High Efficiency
As we know, usually, there are three ways to transfer heat:
1. Radiation 2. Convection 3. Conduction and their thermal efficiency decrease in turn
Most Equipment is mainly by convection to heat air first and then, the heated air transfer to object. Heat loss is big. But, differently, infrared burner heat object directly by radiation and transfer rate will be much higher, usually the heating conversion is more than 90%.
IR Heating Panel Bakery Oven Gas Burner High Efficiency Catalogue
| Model | Dimension | N.W | Main material | Heat output | Gas consumption | ||
| KW/h | Kcal/hr | NG(m3/h) | LPG(kg/h) | ||||
| FY41 | 280*80*70 (348*84*90) | 3.1 | cast iron | 2.1 | 1800 | 0.165 | 0.156 |
| HD61 | 423*80*94 | 3.8 | cast iron | 2.4 | 2030 | 0.18 | 0.17 |
| HD81 | 555*80*115 | 5.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD82 | 219*164*108 | 4.8 | cast iron | 3.1 | 2700 | 0.24 | 0.22 |
| HD101 | 690*80*115 | 6.9 | cast iron | 3.9 | 3380 | 0.3 | 0.28 |
| HD162 | 570*130*175 | 6 | Galvanized steel | 6.3 | 5400 | 0.49 | 0.45 |
| HD242 | 840*130*175 | 7 | Galvanized steel | 9.4 | 8120 | 0.75 | 0.68 |
| HD262 | 930*130*175 | 8 | Galvanized steel | 10.9 | 9360 | 0.8 | 0.64 |
Heating Panel Powder Coating Oven Gas Burner LPG NG propane furnace booth tunnel advantage
ceramic plates of infrared burner & heater, this kind of technology could save 20% energy than non-catalytic infrared burner.

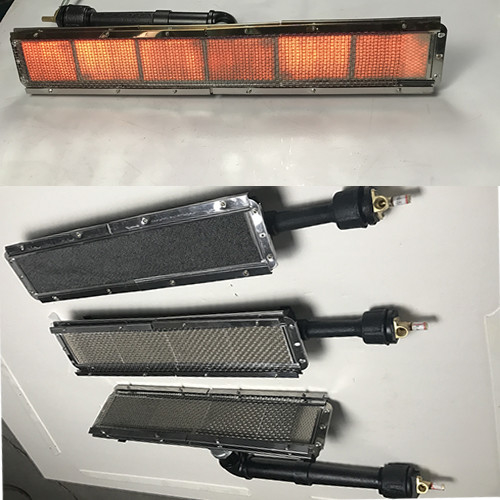

IR Heating Panel Bakery Oven Gas Burner High Efficiency Application
