Portable Infrared Heating Natural Gas/LPG Room Heater Gas Heater Indoor THD166
Product Details:
| Place of Origin: | Chongqing,China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | THD166 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 2 PC |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Shockproof Carton Packaging |
| Delivery Time: | 7-15 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10000 PCS/month |
|
Detail Information |
|||
| Product Name: | Portable Infrared Heating Gas Heater THD166 | Net Weight: | 1 Kg |
|---|---|---|---|
| Dimension: | 26*24*28cm | Working Gas: | Natural Gas/LPG/Propane/Butane |
| NG Consumption: | 0.24m³/h | LPG Consumption: | 0.18kg/h |
| Power(NG): | 1960Kcal | Power(LPG): | 2116Kcal |
| Advantage 1: | Easy To Clean | Advantage 2: | Save Above 20% Energy |
| Highlight: | 600W Egg Hatching Incubators,30W Egg Hatching Incubators,AC220V Egg Hatching Machine |
||
Product Description

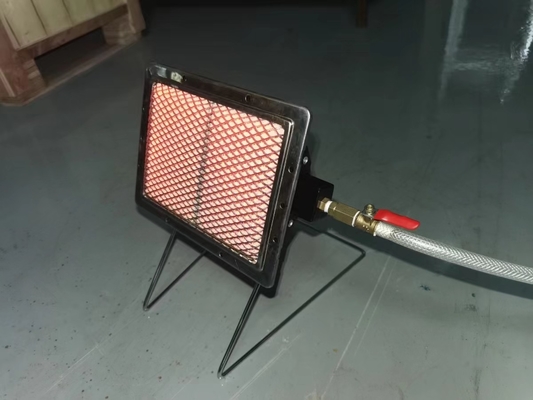

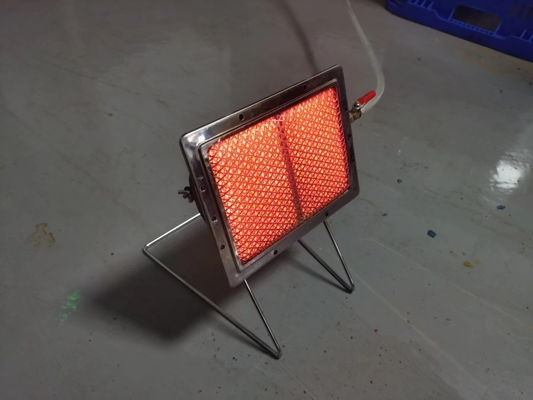

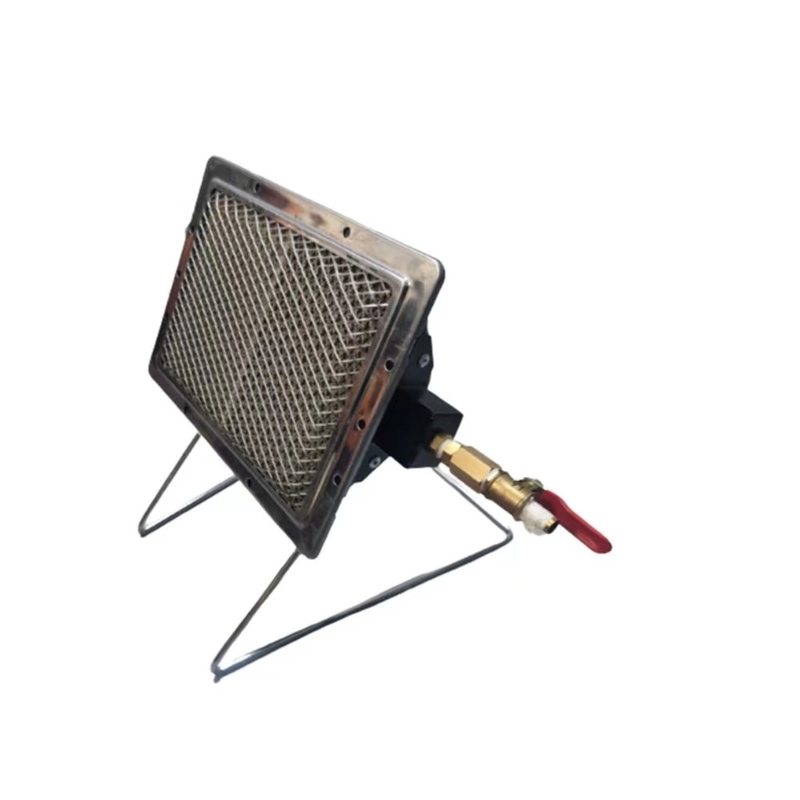

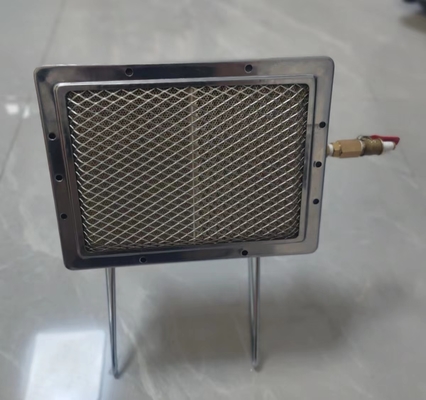

Portable Infrared Heating Natural Gas/LPG Room Heater Gas Heater Indoor THD166
Chongqing Haodong Infrared Gas Burners cover a process rare earth as catalyst, which make the flameless burning occurred at the ceramic surface and radiate directly. So, the energy transfer rate is much higher than other common ceramic burner.
Gas Infrared Burner Technical Parameters
1. Kinds of Gas: NG/LPG/Oil Field Gas/Artificial Gas
2. Perfect Combustion Temperature: ≤380℃
3. Heat Source Temperature: 850℃
4. Heating-up Temperature Range: 35℃-500℃
5. Wavelength Range: 4 um -15 um
6. Working Pressure: 2000pa(NG)~~5000pa
2800pa(LPG)~~5000pa
7. Lifetime: more than 11000hrs
8. Waste Gas Emission: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
9. Conversion Rate: > 90%
Gas Infrared Burner Main Material
1. Shell: Aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
Gas Infrared Burner Main Specification
Details Images
Infrared Techlogy Feature
1. Easy being fixed.
2. Energy savings can be up to 20% per year
3. Environmental protection: CO≤80ppm;NOx≤10ppm;CHx≤50ppm
4. No need for a long and expensive preheating, it will reach comfort temperature very quickly.
5. Long useful time: ≥11000hr
6. Easy to clean
7. It can cut off the gas automatically and protect the burner when the flameout.
8. Silent, light and compact
9. High efficiency: it can come to working condition in 8 seconds.
Company Introduction
Chongqing Haodong Technology Co., Ltd which is found in 2005, is a professional manufacturer of Infrared Catalytic Gas Burner,BBQ Grill Gas Burner, Poultry heater, Gas brooder and Patio Heater etc.
We owns advanced assembly lines, computer controlled injection machines, various high precision test equipment, sterilizing equipment and laboratory facilities. Professional engineers and technicians are employed could meet customer's new requirements demand.
Packing Details
Carton Size: 575*420*470mm
Weight/Carton: 10.5kg
Qty/Carton: 8PCS
