Industrial Oven Thermostat Temperature Controller 110V / 220V Power Supply
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | Wooden box |
| Delivery Time: | 5~10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 10pcs/week |
|
Detail Information |
|||
| Usage: | Industrial | Theory: | Temperature Controller,Temperature Sensor |
|---|---|---|---|
| Power Supply: | 110~220V Power Supply Without Batteries | Temperature Sensor: | Temperature Control |
| Warranty: | 18 Months | Origin: | China |
| Product Name: | 110V / 220V Thermostat Temperature Controller For Industrial Oven | ||
| High Light: | CE Thermostat Temperature Controller,Thermostat Temperature Controller 110V,220V Industrial Oven Temperature Controller |
||
Product Description
Product Name: 110V / 220V Thermostat Temperature Controller For Industrial Oven

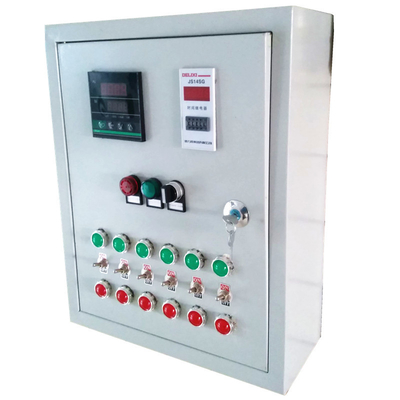

Thermostat outside :
It has tempearture controller, switch, indicator, power button, timer.
Thermostat inside :
I Working Purpose
The thermostat controls gas burner to keep stable temperature and save gas.
When heating area reaches setting temperature, the thermostat controls gas burner stop working;
When heating area under setting temperature, the thermostat controls gas burner start working again.
II Composition of Thermostat
It includes a thermocouple, a adjustable temperature controller, powder switch, ignite switch, working indicator and alarm.
One thermostat can control 1~25 sets gas heater/burner.
III Working Principle
Open gas cylinder → adjust gas pressure to 3500~5000pa → turn on the main power of electric
controller → setting required temperature → turn on ignition switch→Solenoid valve supply gas /
3 pins ignite gas burner/heater → gas burner/heater working normally.
2. Thermocouple detect the heating area temperature → reach setting temperature →
Half or all gas burner stop working → lower than setting temperature →
Ignition automatically by controller → Gas burners restart working.
IV Flameout Protection
When 3 pin failed ignite infrared burner/heater, pulse igniter will control solenoid valve stopping supply gas. So it avoids gas leakage.
Restart ignition: turn on ignition switch again.
V Connection
VI Installation system
