Galvanized Plate Infrared Brooder Heaters For Chicks Gas Pig Duck
Product Details:
| Place of Origin: | China |
| Brand Name: | THD |
| Model Number: | 2606 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 5 pcs |
|---|---|
| Packaging Details: | carton |
| Delivery Time: | 3-5 work days |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 1000pcs per week |
|
Detail Information |
|||
| Color: | Silver Grey | Safty Device: | Yes |
|---|---|---|---|
| Use: | Fram Heating | Material: | Galvanized Plate |
| Advantage: | Energy Saving | Temperature: | Automatic Ignited Coule Use |
| High Light: | Pig Infrared Brooder Heater,Galvanized Plate Infrared Brooder Heater,Brooder Heaters For Chicks |
||
Product Description
Pig Duck Pet Infrared Brooder Heater Poultry Equipment Gas
Now we are the first and only company who apply rare-earth catalytic combustion technology on infrared burner & heater, this kind of technology could save 10~20% energy than non-catalytic infrared heater
There is different model of gas heter with different covering area and capacity for chicken.

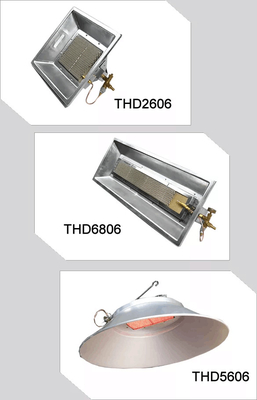

Pig Duck Pet Infrared Brooder Heater Poultry Equipment Gas models
|
Model
|
weight
|
Dimension
|
Gas Consumption
|
Heat Output
|
||
|
|
KG
|
mm
|
NG(m3/h)
|
LPG(KG/h)
|
KW/h
|
Kcal/h
|
|
Manual ignition
|
|
|||||
|
THD2606
|
1.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6806
|
2.8
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
| THD5606 | 1.4 | 550*550*23mm | 0.2 | 0.25 | 2.9 | 2500 |
|
Electric ignition
|
||||||
|
THD2608
|
2.7
|
heater cover 320*279*130 ceramic plate 188*135
|
0.2
|
0.15
|
2.9
|
2500
|
|
THD6808
|
3.7
|
heater cover 675*235*95 ceramic plate 500*68
|
0.42
|
0.29
|
3.9
|
3400
|
|
|
|

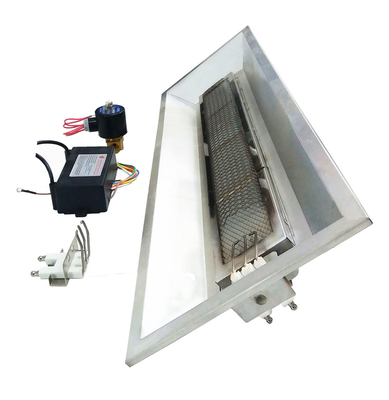

Electric pulse igniter
|
220VAC/50hz or 110VAC/60hz
|
|||
|
|
|
ignition pin
|
3-pin type
|
|||
|
|
|
soelnoid valve
|
220VAC/50hz or 110VAC/60hz
|
|||
Pig Duck Pet Infrared Brooder Heater Poultry Equipment Gas Advantage
♦Imported Aluminized Steel construction
♦Wide operating range
♦Energy efficient, as high as 20% energy can be saved every year
♦Reliability, Silent, light and compact
♦Lower emissions to the air in the barn, CO≤80ppm;NOx≤10ppm;CHx≤50ppm
♦Low maintenance
♦ Withstands high pressure washing
♦Flame-out protection device
♦Long useful time: ≥11000hr
Pig Duck Pet Infrared Brooder Heater Poultry Equipment Gas installtion
The easy installtion of the gas heater. This is automatic ignited one heater install drawing.
