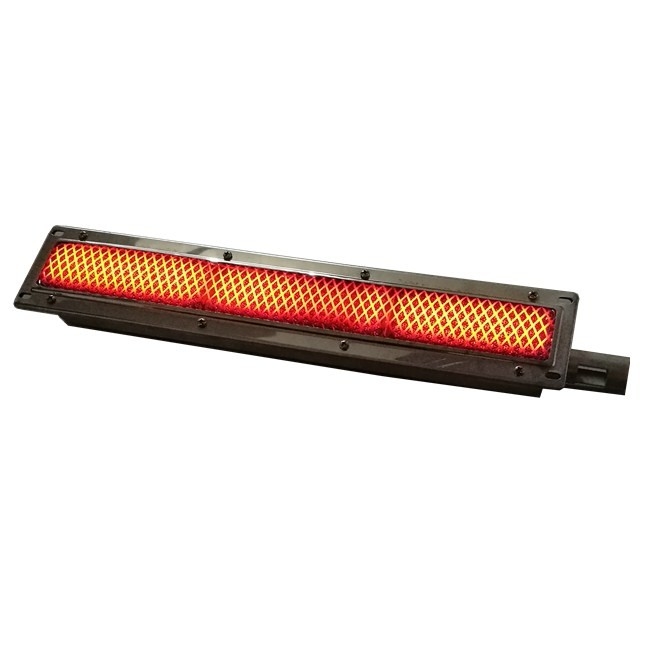

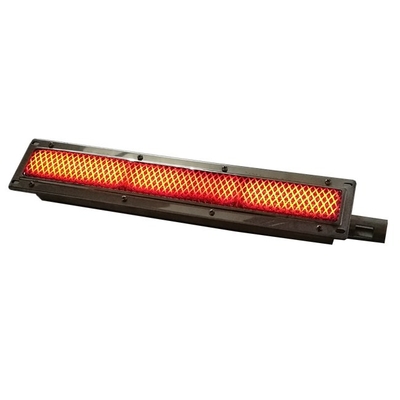

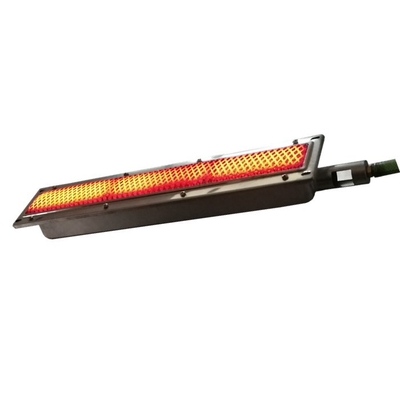

Infrared BBQ Grill Burners Ceramic Catalytic Natural Gas Burner HD400
Product Details:
| Place of Origin: | CHONGQING, CHINA |
| Brand Name: | THD |
| Model Number: | HD400 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 20pcs in 1 Outer Carton (52*43*42cm) |
| Delivery Time: | 5-10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Infrared Burner | Color: | Grey |
|---|---|---|---|
| Power Source: | LPG/NG | Dimension: | 400*80*60mm |
| Weight: | 0.7KG | Installation: | Built In |
| Life Time: | Above 11000hr | Feature: | Easily Assembled |
| Usage: | Kitchen Cooking\Baking\BBQ,Commercial Kitchen,Outdoor Bbq Charcoal Grill,Barbecue | Application: | Picnic Kitchen Garden Outdoor Indoor,Hotel/Restaurant Kitchen |
| Product Name: | Infrared BBQ Grill Burners Ceramic Natural Gas Burners Catalytic | ||
| High Light: | Catalytic BBQ Grill Burners,Ceramic BBQ Grill Burners,HD400 Natural Gas Burner |
||
Product Description
Infrared BBQ Grill Burners Ceramic Natural Gas Burners Catalytic HD400
---Now Haodong Technology is the first and only manufacture in China who apply rare-earth catalytic combustion technology in infrared burner&heater.
Chongqing Haodong Technology Factory produce bbq gas grill burner, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Details of Infrared BBQ Grill Burners Ceramic Natural Gas Burners Catalytic:
| MODEL | Dimension | Weight | Gas Type | Heat Output | Power | |
| mm | kg | BTU/h | Kcal/hr | Kw | ||
| HD220 | 220*170*60 | 0.9 | NG/LPG | 10000 | 2520 | 2.94 |
| HD400 | 400*80*60 | 0.7 | NG/LPG | 9030 | 2300 | 2.72 |
| HD538 | 538*85*65 | 1.4 | NG/LPG | 13500 | 3400 | 3.9 |
| HD668 | 668*85*65 | 1.7 | NG/LPG | 166000 | 4180 | 4.8 |

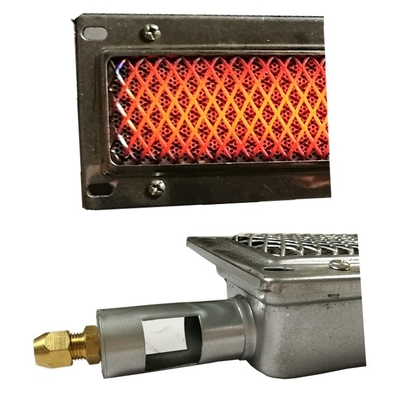

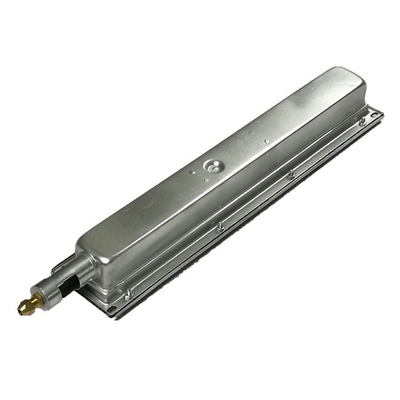

Infrared Burner Material:
1. Shell: aluminized steel sheet
2. Radiant part: cordierite honeycomb plates with black processed rare-earth catalyst coated
3. Nozzle: brass
4. Up cover: stamped stainless iron
Feature:
You can see from above chart, the most two big advantages of infrared burner is
energy-saving and fast heating-up.
And compared with gas burner, Infrared catalytic burner have following advantages:
1. High energy transfer rate, usually the transfer rate can reach 95%,but common gasburner only 75%~80%.
2. High efficiency. Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation, one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly, infrared burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower….
5. Low cost of equipment, match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.
With black rare-earth catalyst on ceramic plates, the gas burner can save 20% energy than non-catalyst gas burner.
The use of technical parameters
|
Items
|
Technical parameters |
|
Types |
natural gas (NG),liquefied petroleum gas (LPG)
|
| Light-off temperature | ≤350 |
| complete combustion temperature | ≤380 |
|
Heat source temperature
|
around 850 |
| Baking temperature range | 30---550 |
| Wavelength range | 1.9m--15m |
|
Furnance pressure natural |
gas 150mmAq;liquefied petroleum gas 280mmAq
|
This series is specially make for bbq, commercial grill , chicken, poultry roaster and so on,which will not keep burner working above 4 hours one time.
Infrared BBQ Grill Burners Ceramic Natural Gas Burners Catalytic
