Rotisserie BBQ Grill Burners Spit Kebab Machine Burner Infrared HD220
Product Details:
| Place of Origin: | CHONGQING, CHINA |
| Brand Name: | THD |
| Model Number: | HD220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 10pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 20pcs in 1 Outer Carton (52*43*42cm) |
| Delivery Time: | 5-10 workdays |
| Payment Terms: | L/C, T/T, Western Union |
| Supply Ability: | 5000pcs/month |
|
Detail Information |
|||
| Type: | Infrared Burner | Color: | Grey |
|---|---|---|---|
| Power Source: | LPG/NG | Dimension: | 220*170*60mm |
| Weight: | 0.9KG | Installation: | Built In |
| Life Time: | Above 11000hr | Usage: | Barbecue, Chicken Roaster |
| Application: | Outdoor Indoor,Hotel/Restaurant Kitchen | Product Name: | Rotisserie BBQ Grill Burners Spit Kebab Machine Infrared Gas Burner |
| High Light: | Rotisserie BBQ Grill Burners,HD220 BBQ Grill Burners,Spit Kebab Machine Burner |
||
Product Description

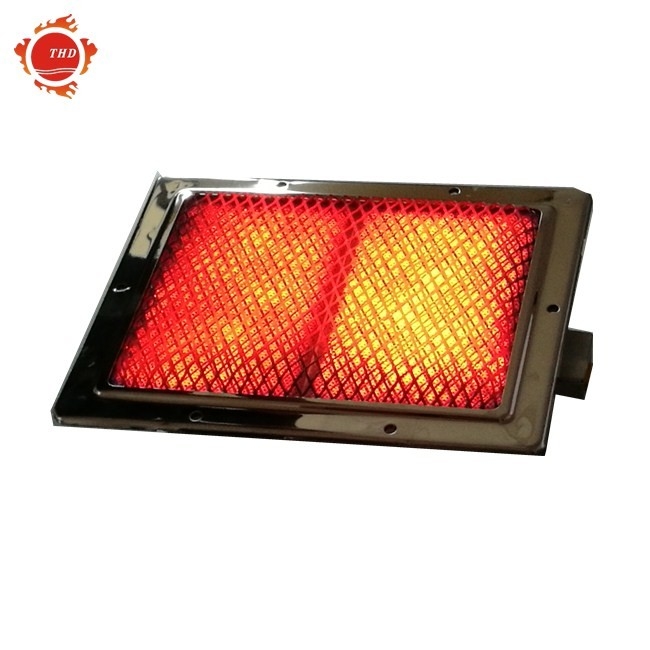

Rotisserie BBQ Grill Burners Spit Kebab Machine Infrared Gas Burner HD220
---Now Haodong Technology is the first and only manufacture in world who apply rare-earth catalytic combustion technology in infrared burner&heater.
We produce bbq gas grill burner, gas burner, infrared burner, gas heater, poultry heater, gas brooder, pizza oven burner, industrial oven heater, fruit dryer etc.
Specification of Rotisserie BBQ Grill Burners Spit Kebab Machine Infrared Gas Burner
| MODEL | Dimension | Weight | Gas Type | Heat Output | Power | |
| mm | kg | BTU/h | Kcal/hr | Kw | ||
| HD220 | 220*170*60 | 0.9 | NG/LPG | 10000 | 2520 | 2.94 |
Feature of Rotisserie BBQ Grill Burners Spit Kebab Machine Infrared Gas Burner
1. High energy transfer rate, usually the transfer rate can reach 98%,but common gasburner only 75%~80%.
2. High efficiency. Infrared burner will be in working condition for 8seconds.And installed with quantity as design, it can reach target temperature in ~10mins for empty oven and 25~40min when with cured objects in oven.
3. Single operation, one among them damage will not affect other's work, but if there’s any small problem with the gas burner, the curing will be stopped.
4. Heating directly, infrared burner heat object directly through radiation, not need other auxiliary equipment, like combustion chamber, blower….
5. Low cost of equipment, match with our accessories, only need a temperature controller and pressure instrument, connect them with gas pipes and wires, them it will work.
Advantage of infrared gas burner:

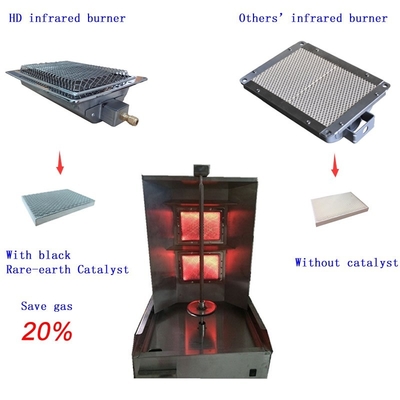

With black rare-earth catalyst on ceramic plates, the gas burner can save 20% energy than non-catalyst gas burner.

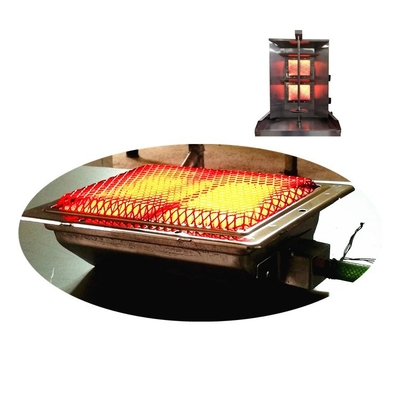

Application of Rotisserie BBQ Grill Burners Spit Kebab Machine Infrared Gas Burner:
This series is specially make for bbq, commercial grill , chicken, poultry roaster and so on,which will not keep burner working above 4 hours one time.
