Infrared BBQ Grills Ceramic Rotisserie Burner Aluminum Gas Burner LPG
Product Details:
| Place of Origin: | Chongqing, China |
| Brand Name: | THD |
| Certification: | CE |
| Model Number: | HD220 |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 pcs |
|---|---|
| Price: | Negotiable |
| Packaging Details: | 20 pcs a carton, carton size: 51*44*35cm |
| Delivery Time: | According to your qty |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 100 pcs per day |
|
Detail Information |
|||
| Warranty: | 1 Year | Material Of Cover: | Aluminum |
|---|---|---|---|
| Temperature: | 850 ℃ | Size: | 220*170*60 |
| High Light: | Infrared Ceramic Rotisserie Burner,Aluminum Ceramic Rotisserie Burner,BBQ Grills Gas Burner LPG |
||
Product Description
20% gas saving infrared lpg gas burner for bbq grills and rotisseries
Specification

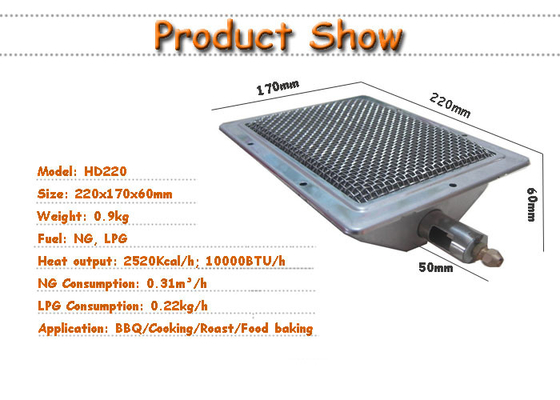

| Model | Dimension | N.W | Gas Type | Material | Heat Output | Gas Consumption | ||
| L*W*H(mm) | KG | btu/h | Kcal/hr | NG(m3/h) | LPG(KG/h) | |||
| HD220 | 220*170*60 | 0.9 | NG/LPG | aluminum,Ceramic plate | 10000 | 2520 | 0.31 | 0.22 |

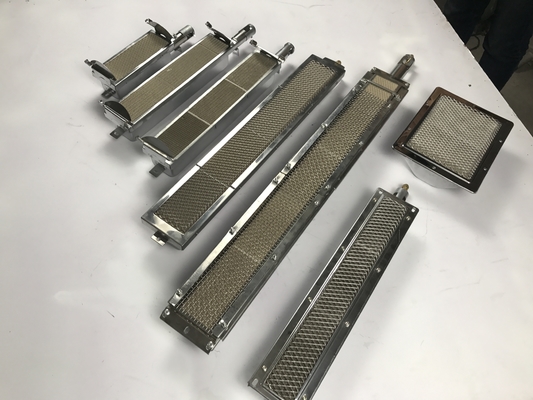

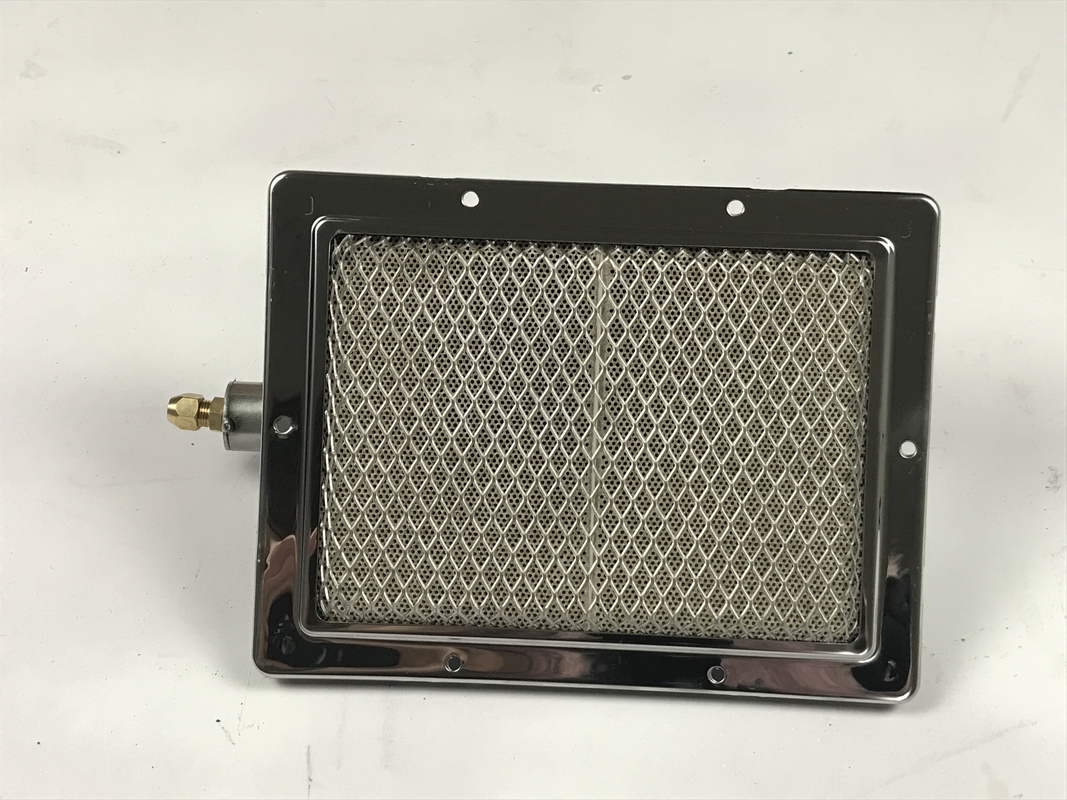

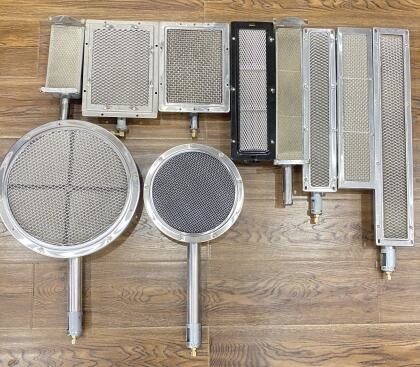

Haodong manufacture and assemble super efficient infrared radiant gas fired burners suitable for both the OEM and replacement markets. The gas burners can be fitted in a wide range of proprietory process drying, heating and product finishing equipment.
We made infrared burners are designed and constructed to operate on all families of gases and will operate at all gas pressures. They are therefore suitable whatever the gas pressure and in whichever position you wish to fire the burner. - We guarantee it will work!
Flameless when they are working
The black catalyst coating on the Cordierite honeycomb plates,makes the gas saving more than 20%,longer lifetime,less carbon monoxide,NOx and noise,also vent free when they were used for many times.
In a similar way to micro waves, infrared heats, and therefore cooks, food by direct absorbtion of radiated energy. It cooks rapidly and doesn't dry the food in the process.
Technical info
Ovens cook by convection. Even conventional gas fired grills cook by a mixture of convection and radiation, largely because they operate at a relatively low temperature.
An infrared radiant grill can operate at much higher temperatures and can sear the surface of a steak while leaving it comparatively rare inside. It can brown the crust of a loaf of bread without drying out the interior and completely cook thinner items in far less time then conventional baking.
Our infrared burners are widely used for catering equipment such as
- grills
- rotisseries
- frying ranges
- griddles
- kebab machines
- naan and pitta bread ovens
- wok burners
- bainsmarie steamers
- boiling units
We welcome enquiries from manufacturers of such equipment.
Please send us inquiry for more information.
